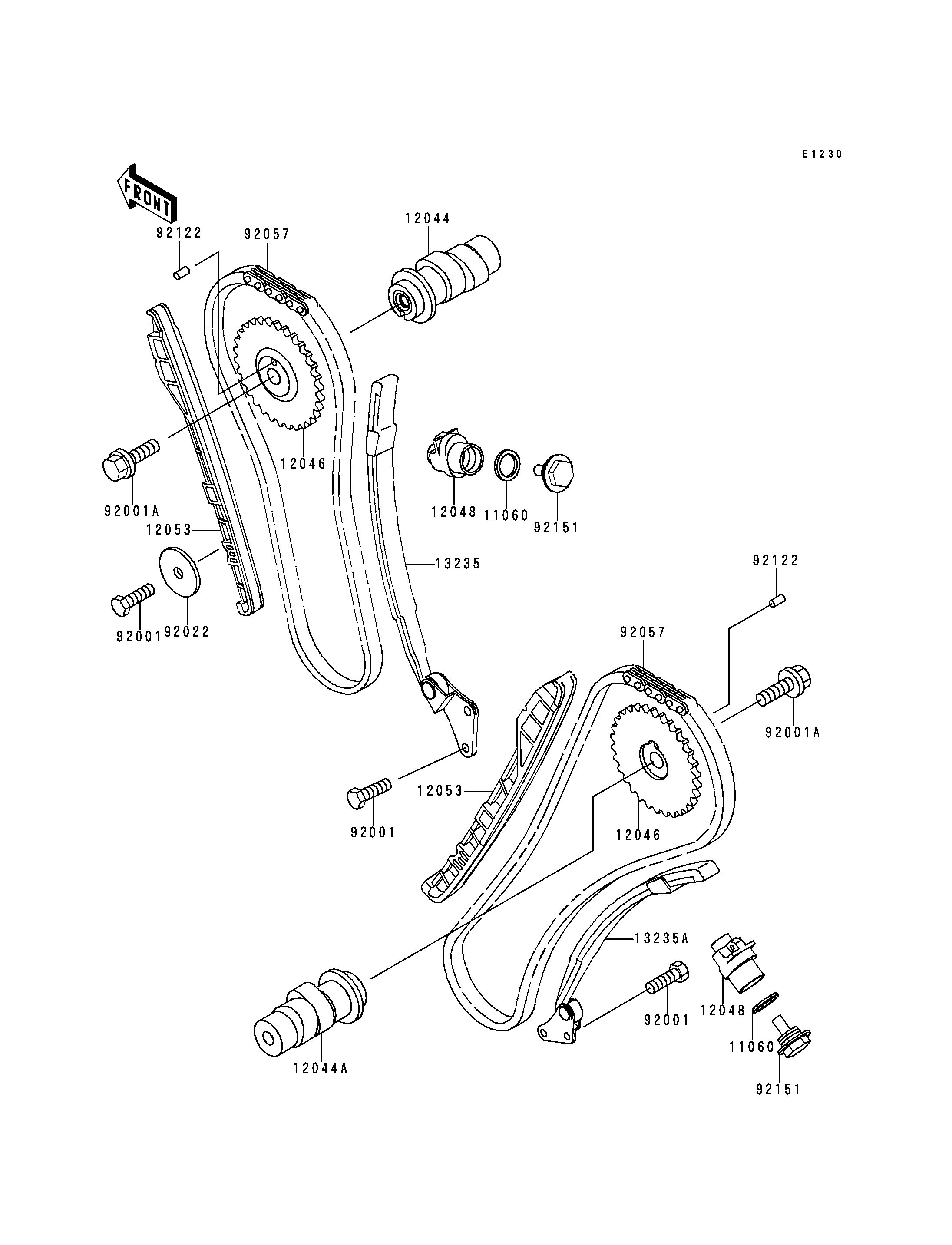

1997 Vulcan 800 - Camshaft(s)/Tensioner
11060
11060
12044
12044A
12046
12046
12048
12048
12053
12053
13235
13235A
92001
92001
92001
92001A
92001A
92022
92057
92057
92122
92122
92151
92151
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,TENSIONER | 11060 | 11060-1682 | 2 | ||
CAMSHAFT-VALVE,FR | 12044 | 12044-1377 | 1 | ||
CAMSHAFT-VALVE,RR | 12044A | 12044-1378 | 1 | ||
SPROCKET | 12046 | 12046-1171 | 2 | ||
TENSIONER-ASSY | 12048 | 12048-1145 | 2 | ||
GUIDE-CHAIN | 12053 | 12053-1354 | 2 | ||
GUIDE-COMP,FR | 13235 | 13235-1067 | 1 | ||
GUIDE-COMP,RR | 13235A | 13235-1068 | 1 | ||
BOLT,6X16 | 92001 | 92001-1457 | 5 | ||
BOLT,10X23 | 92001A | 92001-1859 | 2 | ||
WASHER,7X27X1.6 | 92022 | 92022-227 | 1 | ||
CHAIN,CAM | 92057 | 92057-1403 | 2 | ||
ROLLER,4X9.8 | 92122 | 92122-1197 | 2 | ||
BOLT,TENSIONER | 92151 | 92151-1136 | 2 |
GASKET,TENSIONER | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAMSHAFT-VALVE,FR | |
REF # | 12044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAMSHAFT-VALVE,RR | |
REF # | 12044A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET | |
REF # | 12046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TENSIONER-ASSY | |
REF # | 12048 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE-COMP,FR | |
REF # | 13235 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-COMP,RR | |
REF # | 13235A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BOLT,10X23 | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,7X27X1.6 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CHAIN,CAM | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ROLLER,4X9.8 | |
REF # | 92122 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,TENSIONER | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
