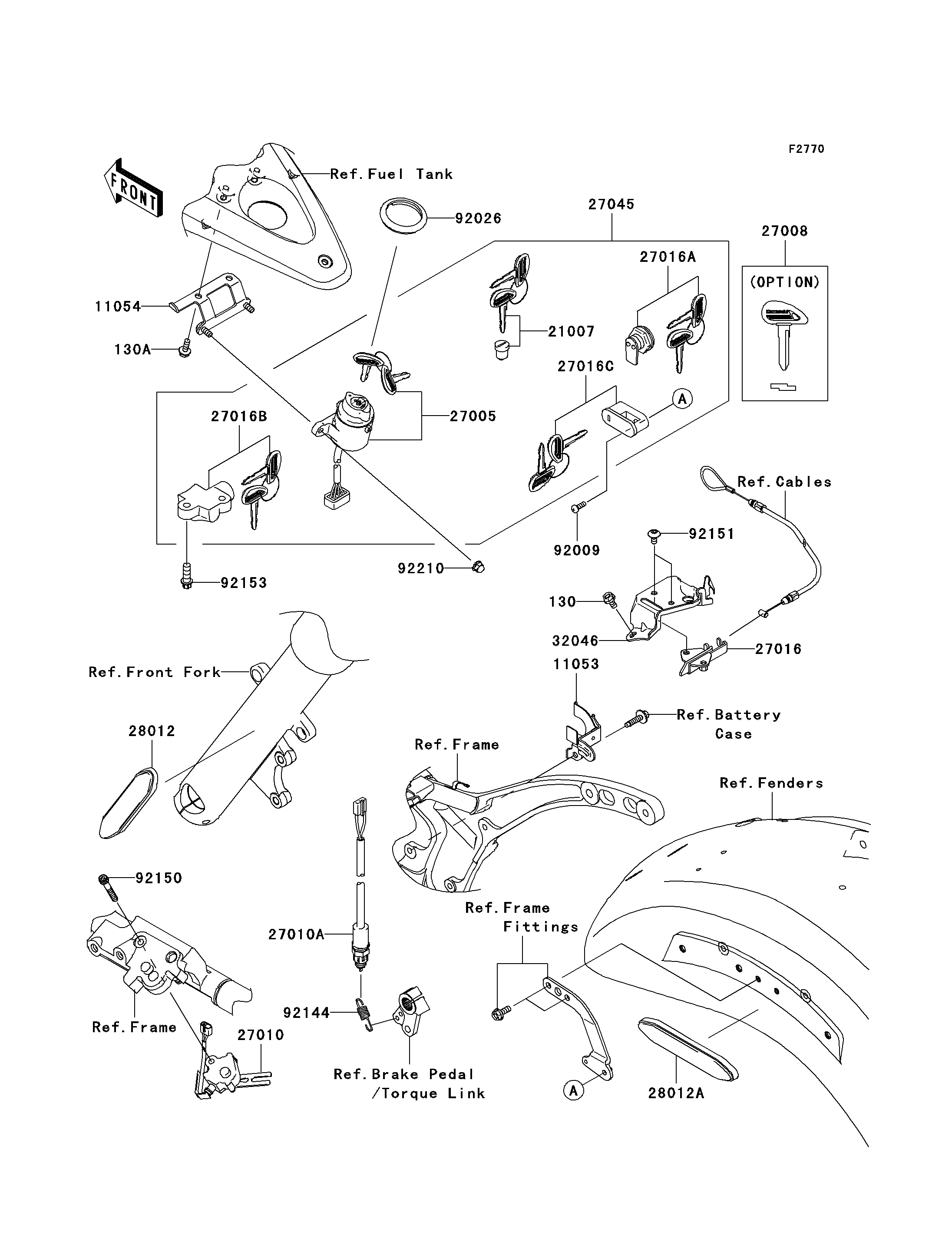

2008 Vulcan® 2000 Classic - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11053
11054
21007
27005
27008
27010
27010A
27016
27016A
27016B
27016C
27045
28012
28012A
32046
92009
92026
92144
92150
92151
92153
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BB0612 2
BOLT-FLANGED,6X14 130A 130BB0614 2
BRACKET,SIDE COVER LOCK 11053 11053-0920 1
BRACKET,IGNITION SWITCH 11054 11054-0095 1
ROTOR,LOCK,TANK CAP 21007 21007-5053 1
SWITCH-ASSY-IGNITION 27005 27005-0027 1
KEY-LOCK,BLANK 27008 27008-1211 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0011 1
SWITCH,REAR BRAKE 27010A 27010-0023 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 1
LOCK-ASSY,LID 27016A 27016-5279 1
LOCK-ASSY,STEERING 27016B 27016-5298 1
LOCK-ASSY,HELMET 27016C 27016-5311 1
SWITCH-ASSY 27045 27045-5324 1
REFLECTOR-REFLEX 28012 28012-0009 2
REFLECTOR-REFLEX 28012A 28012-0010 2
BRACKET-SEAT 32046 32046-0037 1
SCREW,5X14 92009 92009-1341 1
SPACER,IGNITION SWITCH 92026 92026-0018 1
SPRING,REAR BRAKE SWITCH 92144 92144-1141 1
BOLT,SOCKET,6X40 92150 92150-1958 1
BOLT,SOCKET,6X12 92151 92151-1219 2
BOLT,TORX,8X22 92153 92153-1273 2
NUT,CAP,6MM 92210 92210-1252 2
