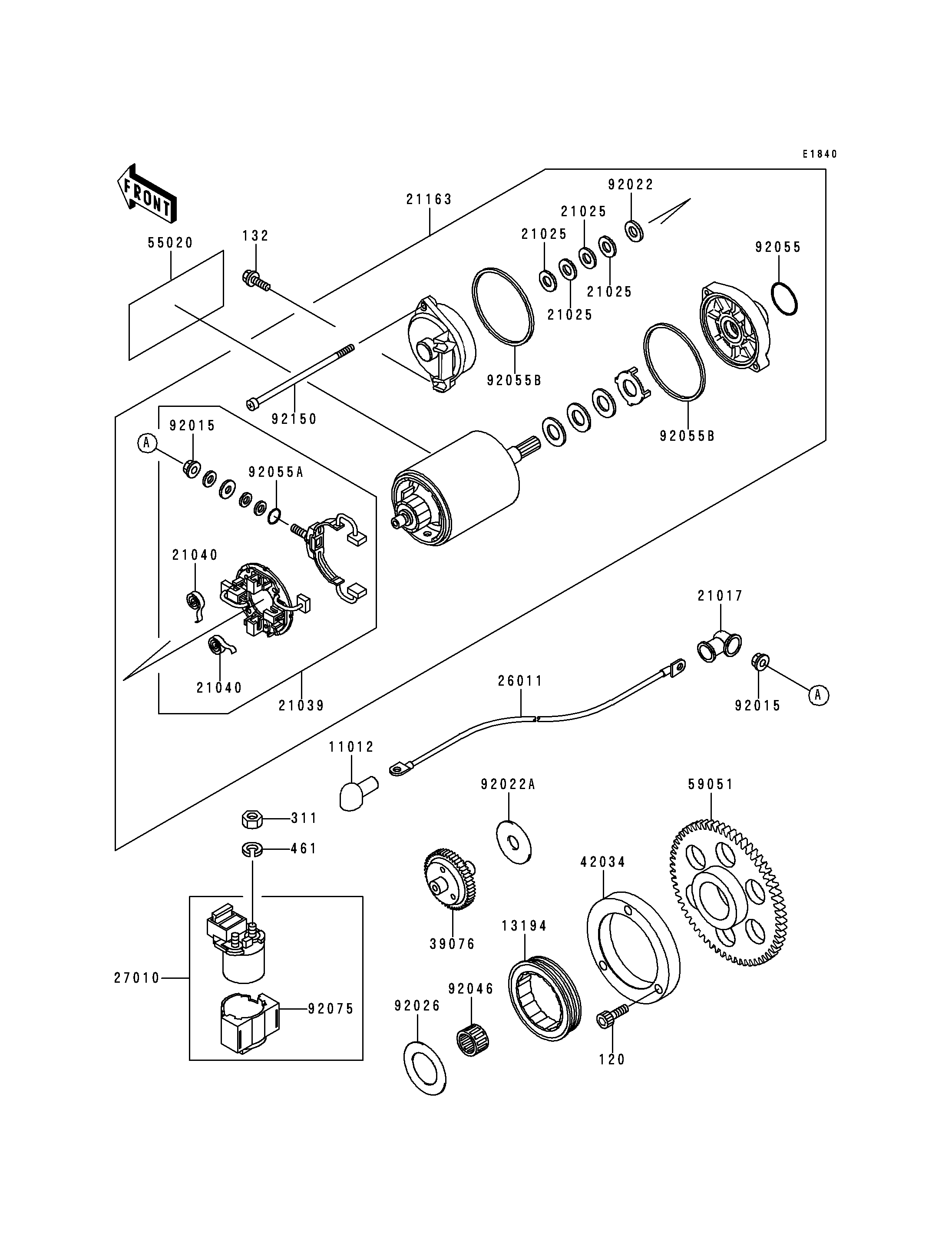

1998 Vulcan 800 - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
132
311
461
11012
13194
21017
21025
21025
21025
21025
21039
21040
21040
21163
26011
27010
39076
42034
55020
59051
92015
92015
92022
92022A
92026
92046
92055
92055A
92055B
92055B
92075
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X20 120 120Q0820 3
BOLT-FLANGED-SMALL 132 132J0625 2
NUT-HEX,6MM 311 311B0600 2
WASHER-SPRING,6MM 461 461F0600 2
CAP,TERMINAL 11012 11012-1354 1
CLUTCH-ONEWAY 13194 13194-1085 1
GROMMET,STARTER TERMINAL 21017 21017-017 1
WASHER,9.1X18X0.2 21025 21025-011 AR
BRUSH,CARBON 21039 21039-1060 1
SPRING-BRUSH 21040 21040-1055 4
STARTER-ELECTRIC 21163 21163-1263 1
WIRE-LEAD 26011 26011-1628 1
SWITCH,MAGNETIC 27010 27010-1281 1
LIMITER,STARTER IDLE GEAR 39076 39076-1070 1
COUPLING 42034 42034-1143 1
GUARD,STARTER MOTER 55020 55020-1589 1
GEAR-SPUR,STARTER,63T 59051 59051-1130 1
NUT,STARTER MOTOR 92015 92015-1476 2
WASHER,9.1X18X0.8 92022 92022-1132 1
WASHER,12.3X38X2.0 92022A 92022-1664 1
SPACER,29.1X47.5X1.2 92026 92026-087 1
BEARING-NEEDLE 92046 92046-1137 1
RING-O 92055 92055-1276 1
RING-O,4.5X2.0 92055A 92055-1370 1
RING-O,STARTER MOTOR 92055B 92055-1381 2
DAMPER,MAGNETIC SWITCH 92075 92075-1863 1
BOLT,STARTER MOTOR 92150 92150-1913 2
