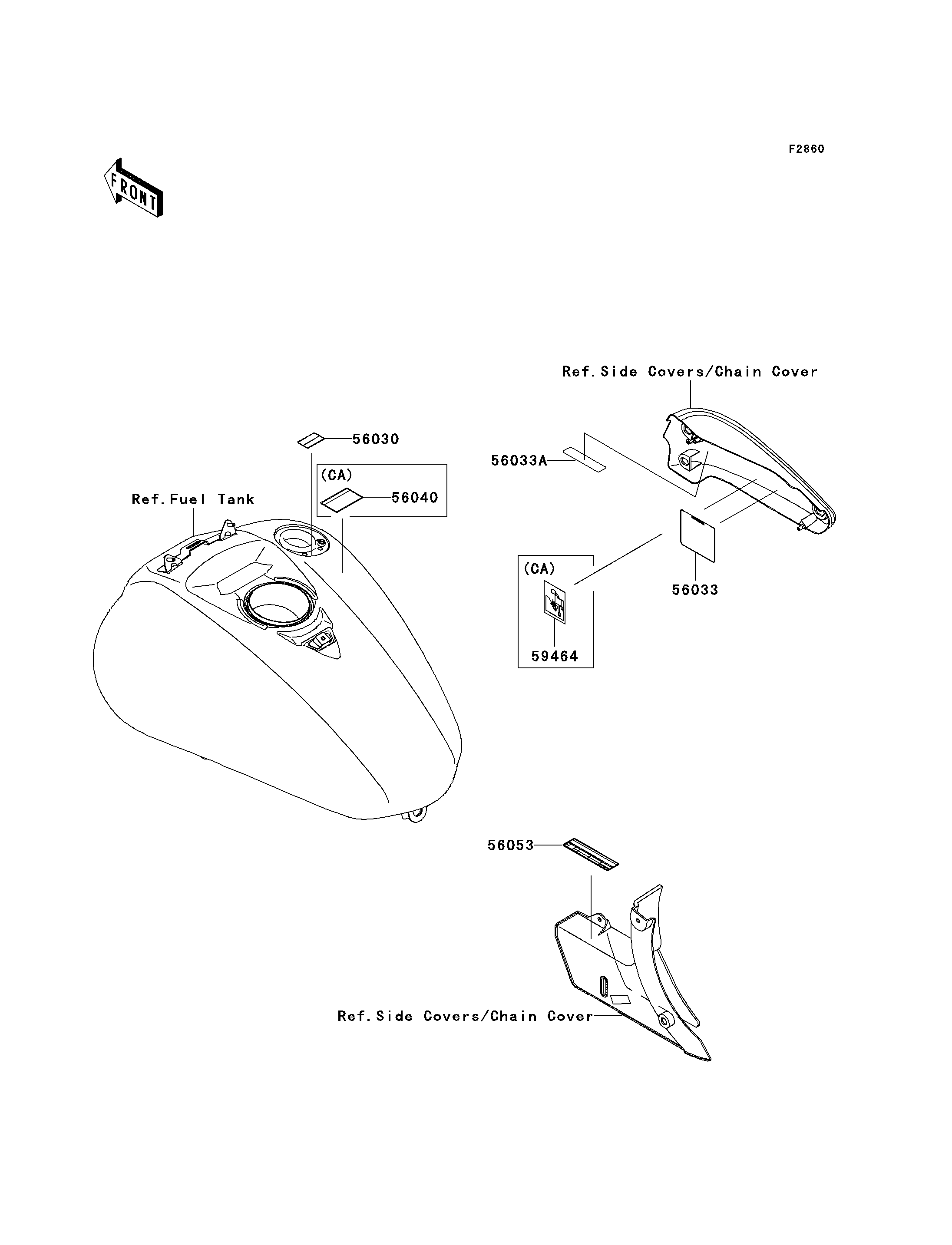

56030
56033
56033A
56053
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,GASOLINE 56030 56030-1177 1
LABEL-MANUAL,DAILY SAFETY 56033 56033-0122 1
LABEL-MANUAL,OIL&OIL FILTER 56033A 56033-0128 1
LABEL-SPECIFICATION,TIRE&LOAD 56053 56053-0110 1
LABEL-WARNING,EVAPO 56040 56040-1121 1 CA
LABEL-CERTIFICATION,EVAPO ROUT 59464 59464-0198 1 CA
