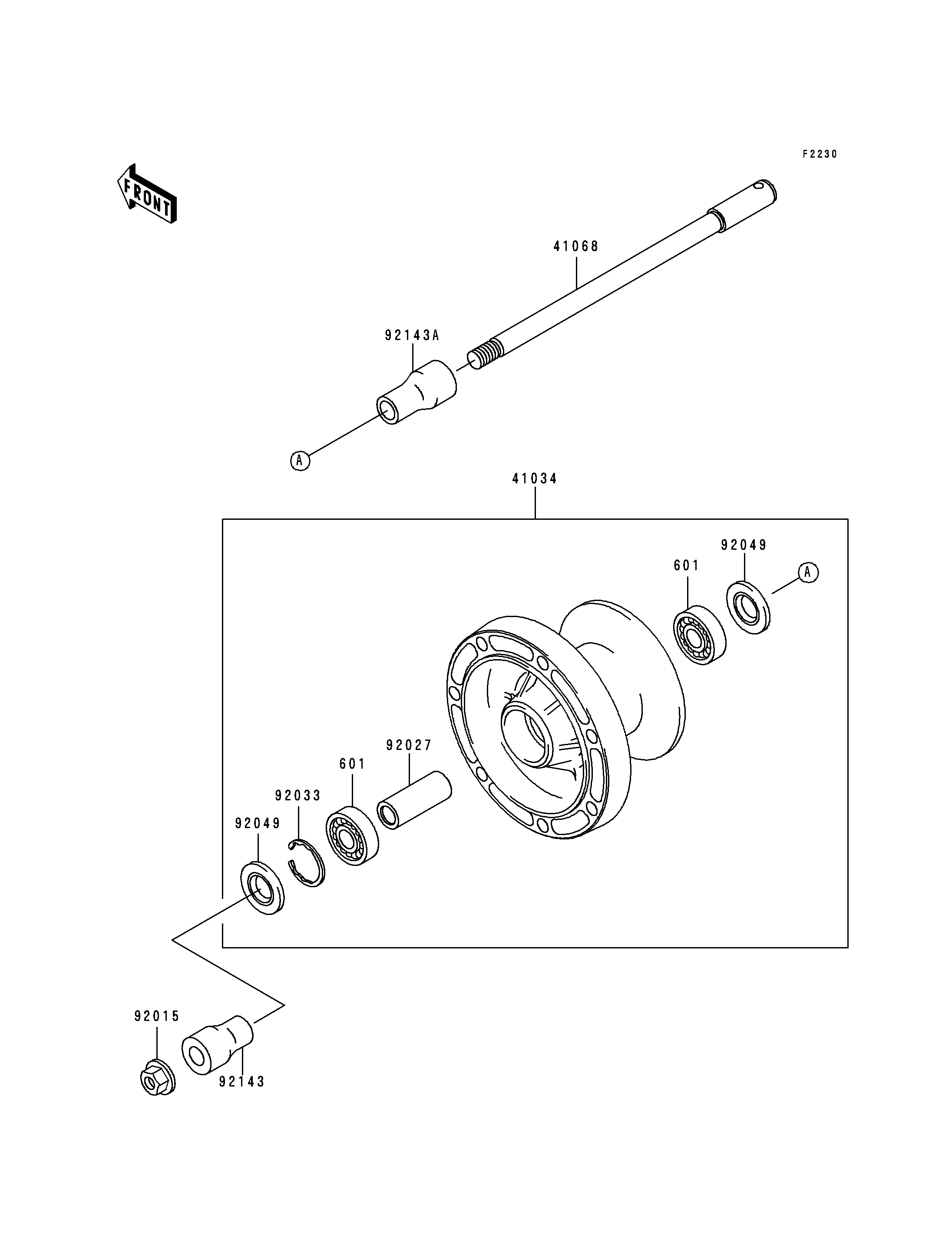

601
601
41034
41068
92015
92027
92033
92049
92049
92143
92143A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BEARING-BALL,#6302UG 601 601B6302UG 2
DRUM-ASSY,FRONT BRAKE 41034 41034-1247 1
AXLE,FR 41068 41068-1243 1
NUT,14MM 92015 92015-1407 1
COLLAR,L=70 92027 92027-1866 1
RING-SNAP,42MM 92033 92033-1041 1
SEAL-OIL,BJN22425 92049 92049-1058 2
COLLAR,FR AXLE,LH,L=47.5 92143 92143-1737 1
COLLAR,FR AXLE,RH,L=56.5 92143A 92143-1738 1
