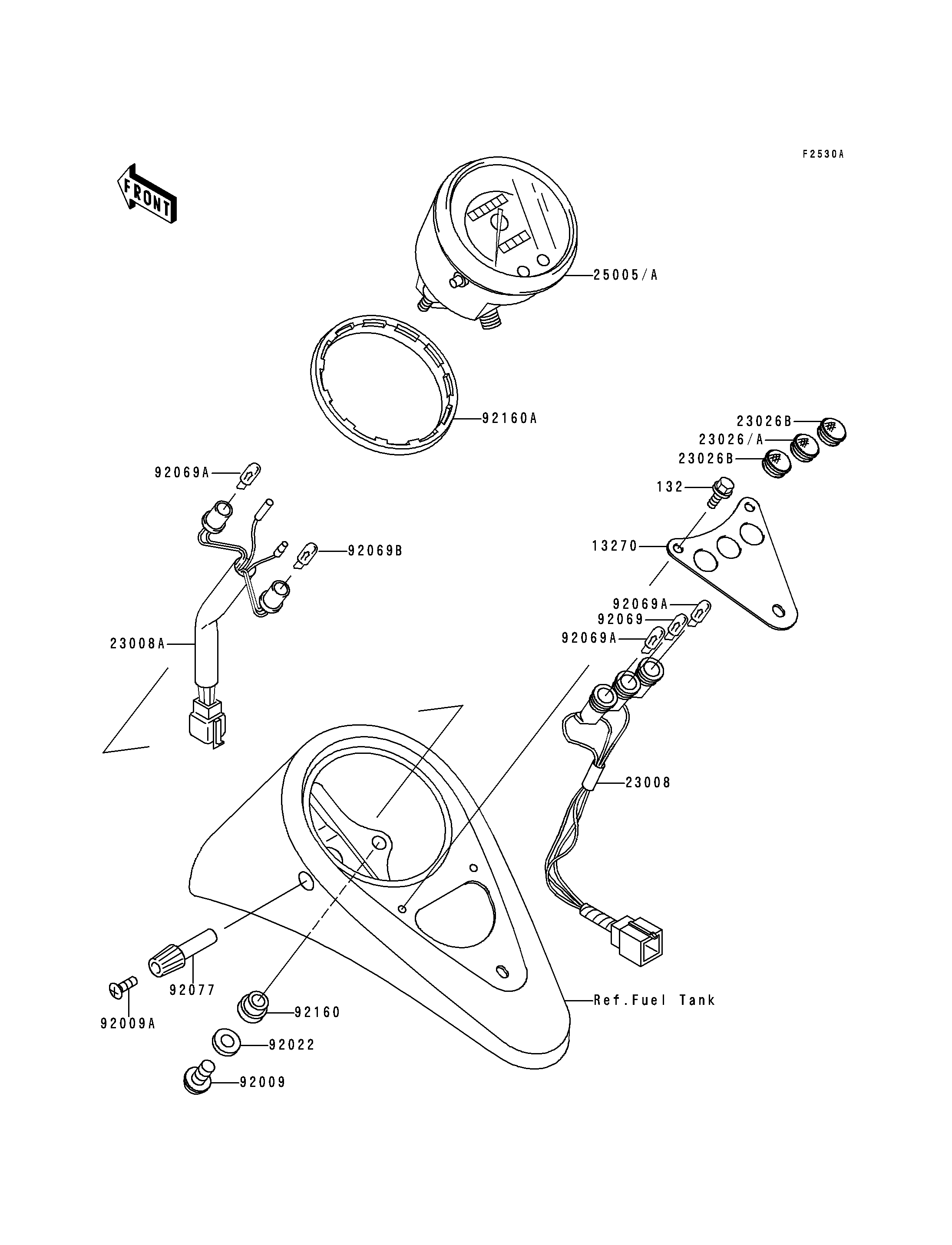

1998 Vulcan 800 - Meter(s)(VN800-A3/A4/A5)

DOWNLOAD PDF
SELECT A NEW PART
132
13270
23008
23008A
23026A
23026B
23026B
92009
92009A
92022
92069
92069A
92069A
92069A
92069B
92077
92160
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132E0612 3
PLATE,PILOT LAMP 13270 13270-1637 1
SOCKET-ASSY,PILOT LAMP 23008 23008-1546 1
SOCKET-ASSY,SPEEDOMETER 23008A 23008-1575 1
LENS,GREEN 23026A 23026-1171 1
LENS,RED 23026B 23026-1173 2
SCREW,4X6 92009 92009-1690 2
SCREW,3X8 92009A 92009-1799 1
WASHER,4.3X12.5X1 92022 92022-1949 2
BULB,12V 3.4W 92069 92069-1007 1
BULB,12V 1.7W 92069A 92069-1059 3
BULB,12V 3W 92069B 92069-1068 1
KNOB,TRIP 92077 92077-1117 1
DAMPER 92160 92160-1068 2
DAMPER,SHOCK,METER 92160A 92160-1380 1
SPEEDOMETER,MPH 25005 25005-1616 1
SPEEDOMETER,KPH 25005A 25005-1617 1
