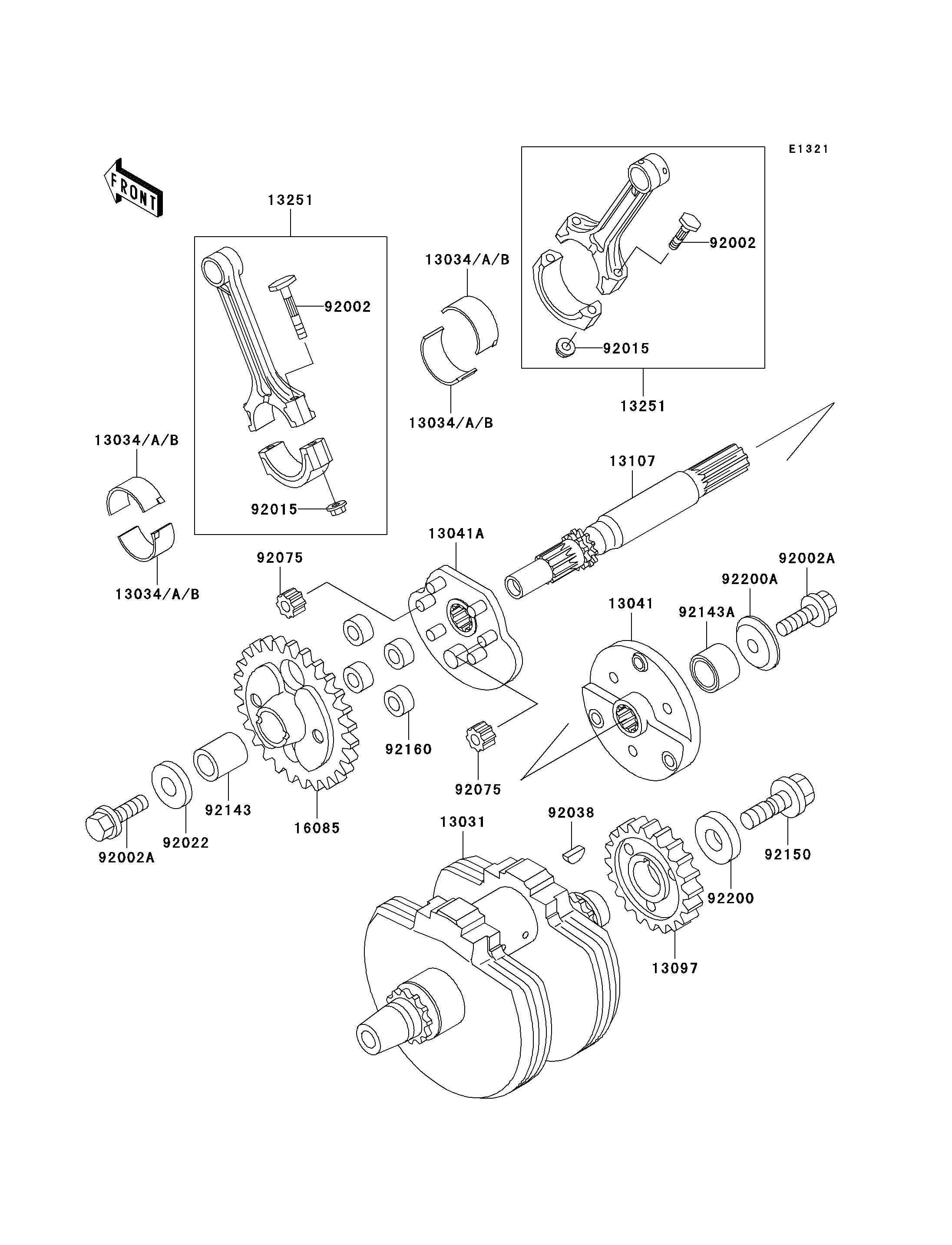

2000 Vulcan 800 - Crankshaft

DOWNLOAD PDF
SELECT A NEW PART
13031
13034
13034
13034
13034
13034A
13034A
13034A
13034A
13034B
13034B
13034B
13034B
13041
13041A
13097
13107
13251
13251
16085
92002
92002
92002A
92002A
92015
92015
92022
92038
92075
92075
92143
92143A
92150
92160
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKSHAFT-COMP 13031 13031-1398 1
METAL,CONNECTING ROD,BLUE 13034 13034-1057 AR
METAL,CONNECTING ROD,BLACK 13034A 13034-1058 AR
METAL,CONNECTING ROD,BROWN 13034B 13034-1059 AR
BALANCER,RH 13041 13041-1112 1
BALANCER,LH 13041A 13041-1113 1
GEAR-PRIMARY SPUR,38T 13097 13097-1335 1
SHAFT,BALANCER 13107 13107-1336 1
ROD-ASSY-CONNECTING,G 13251 13251-1055-GG 2
GEAR 16085 16085-1279 1
BOLT,CONNECTING ROD 92002 92002-1405 4
BOLT,10X30 92002A 92002-1697 2
NUT,CONNECTING ROD 92015 92015-1481 4
WASHER,RH,10X33X9 92022 92022-1906 1
KEY 92038 92038-1059 1
DAMPER 92075 92075-1748 2
COLLAR 92143 92143-1736 1
COLLAR 92143A 92143-1743 1
BOLT,12X40 92150 92150-1717 1
DAMPER 92160 92160-1582 4
WASHER 92200 92200-1249 1
WASHER 92200A 92200-1250 1
