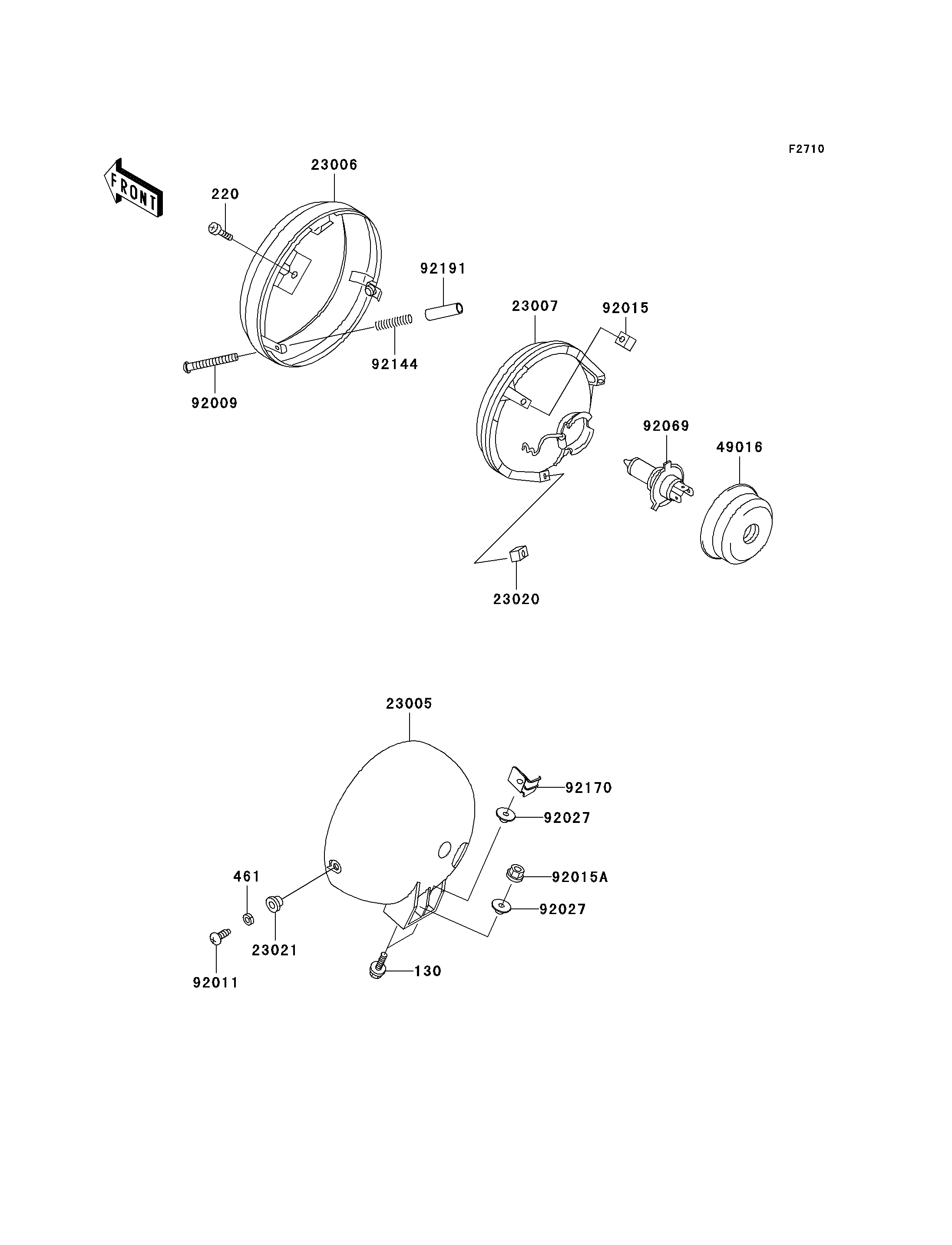

2000 Vulcan 800 - Headlight(s)(VN800-A6)

DOWNLOAD PDF
SELECT A NEW PART
130
220
461
23005
23006
23007
23020
23021
49016
92009
92011
92015
92015A
92027
92027
92069
92144
92170
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130V0620 2
SCREW-PAN-CROS,5X12 220 220D0512 1
WASHER-SPRING,5MM 461 461F0500 2
BODY-COMP-HEAD LAMP 23005 23005-1149 1
RIM-LAMP 23006 23006-1070 1
LENS-COMP,HEAD LAMP 23007 23007-1169 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
WASHER 23021 23021-010 2
COVER-SEAL,HEAD LAMP SOCKET 49016 49016-1129 1
SCREW,FOCUS ADJUST,4X65 92009 92009-1472 2
SCREW,5MM 92011 92011-024 2
NUT,5MM 92015 92015-1157 1
NUT,FLANGED,6MM 92015A 92015-1367 1
COLLAR,L=6.5 92027 92027-252 2
BULB,12V 60/55W,H4 92069 92069-1002 1
SPRING,FOCUS ADJUST 92144 92144-1149 2
CLAMP,HARNESS 92170 92170-1624 1
TUBE,3.5X5.5X19 92191 92191-1217 2
