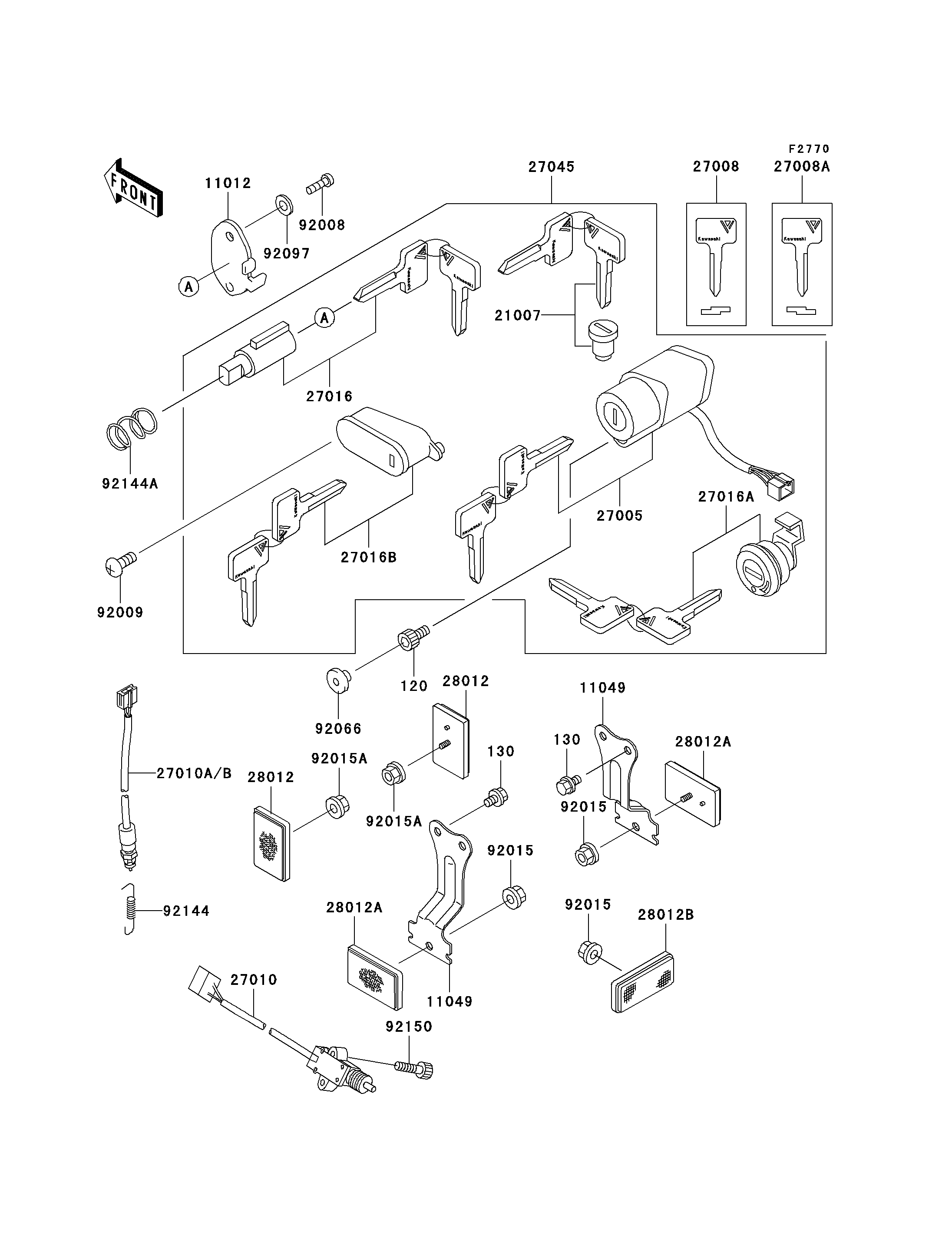

2000 Vulcan 800 - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
120
130
130
11012
11049
11049
21007
27005
27008
27008A
27010
27010A
27016
27016A
27016B
27045
28012
28012
28012A
28012A
28012B
92008
92009
92015
92015
92015
92015A
92015A
92066
92097
92144
92144A
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120P0512 1
BOLT-FLANGED 130 130J0508 4
CAP,STEERING LOCK 11012 11012-1586 1
BRACKET,REFLECTOR 11049 11049-1146 2
ROTOR,LOCK,TANK CAP 21007 21007-5024 1
SWITCH-ASSY-IGNITION 27005 27005-1204 1
KEY-LOCK,BLANK,#A 27008 27008-1138 1 (OPTION)
KEY-LOCK,BLANK,#B 27008A 27008-1139 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1352 1
SWITCH,REAR BRAKE 27010A 27010-1370 1
LOCK-ASSY,STEERING 27016 27016-5131 1
LOCK-ASSY,LID 27016A 27016-5225 2
LOCK-ASSY,HELMET 27016B 27016-5226 1
SWITCH-ASSY 27045 27045-5040 1
REFLECTOR-REFLEX,FR 28012 28012-1009 2
REFLECTOR-REFLEX,RR 28012A 28012-1051 2
REFLECTOR-REFLEX 28012B 28012-1077 1
SCREW,3.51MM 92008 92008-007 1
SCREW,5X12 92009 92009-1296 1
NUT,FLANGED,5MM 92015 92015-1259 3
NUT,FLANGED,5MM 92015A 92015-1656 2
PLUG 92066 92066-1435 1
WASHER,WAVE 92097 92097-003 1
SPRING,REAR BRAKE SWITCH 92144 92144-1141 1
SPRING,STEERING LOCK 92144A 92144-1222 1
BOLT,SOCKET,5X22 92150 92150-1491 2
