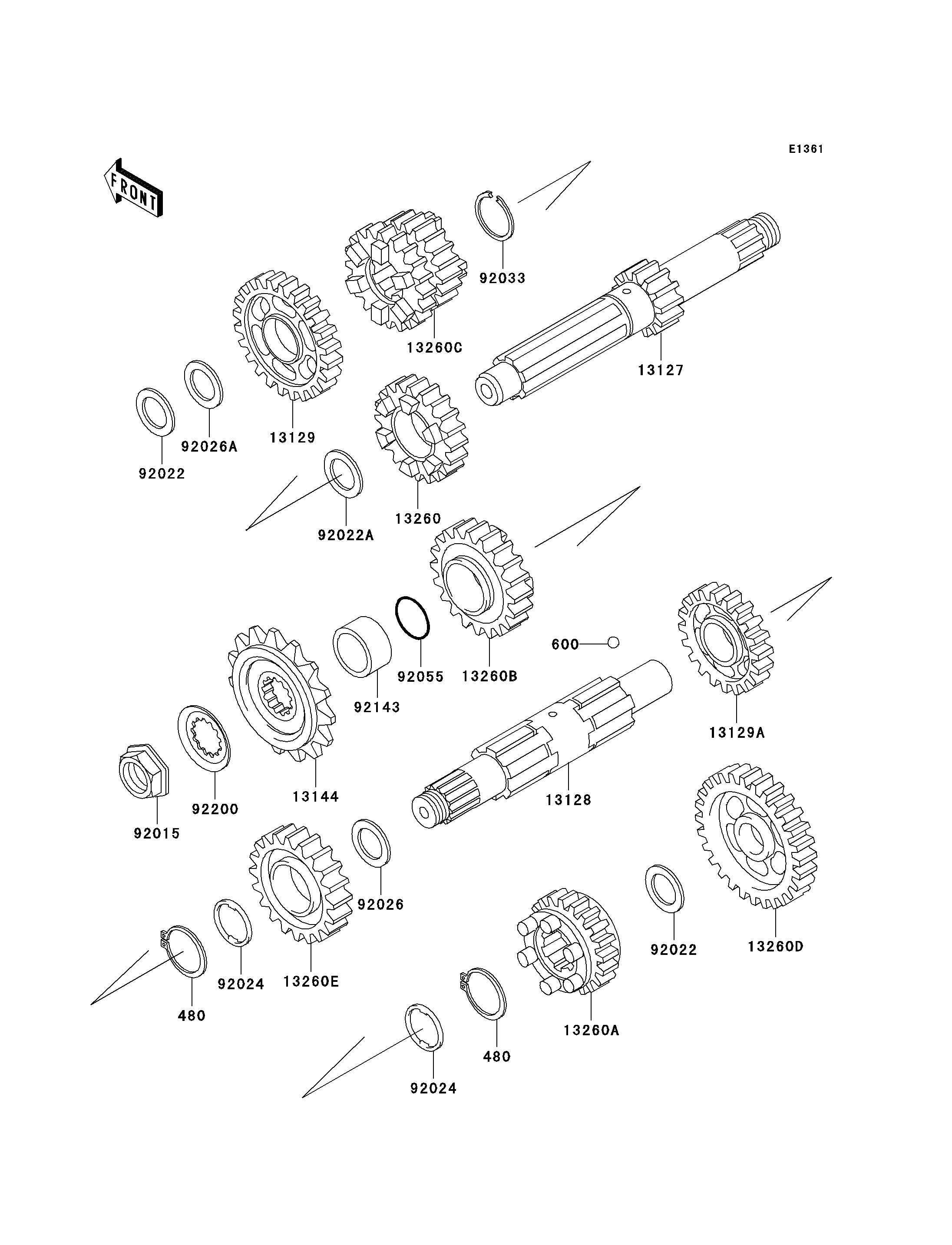

1996 Vulcan 800 Classic - Transmission

DOWNLOAD PDF
SELECT A NEW PART
480
480
600
13127
13128
13129
13129A
13144
13260
13260A
13260B
13260C
13260D
13260E
92015
92022
92022
92022A
92024
92024
92026
92026A
92033
92055
92143
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,30MM 480 480J3000 2
BALL-STEEL,5/32" 600 600A0500 3
SHAFT-TRANSMISSION INPUT,15T 13127 13127-1241 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1204 1
GEAR,INPUT 5TH,28T 13129 13129-1632 1
GEAR,OUTPUT 3RD,32T 13129A 13129-1635 1
SPROCKET-OUTPUT,17T 13144 13144-1304 1
GEAR,INPUT 4TH,29T 13260 13260-1473 1
GEAR,OUTPUT 4TH,29T 13260A 13260-1476 1
GEAR,OUTPUT 5TH,24T 13260B 13260-1477 1
GEAR,INPUT 2ND&3RD,20T&26T 13260C 13260-1486 1
GEAR,OUTPUT LOW,38T 13260D 13260-1487 1
GEAR,OUTPUT 2ND,33T 13260E 13260-1488 1
NUT,20MM 92015 92015-1963 1
WASHER,20.5X30X1,STEEL 92022 92022-112 2
WASHER,25.3X30X1 92022A 92022-161 1
WASHER,TOOTHED,30.5X38X1 92024 92024-069 2
SPACER,30X38X1.0 92026 92026-079 1
SPACER,20.5X30X0.5 92026A 92026-1535 1
RING-SNAP,24MM 92033 92033-026 1
RING-O 92055 92055-035 1
COLLAR 92143 92143-1735 1
WASHER 92200 92200-1065 1
