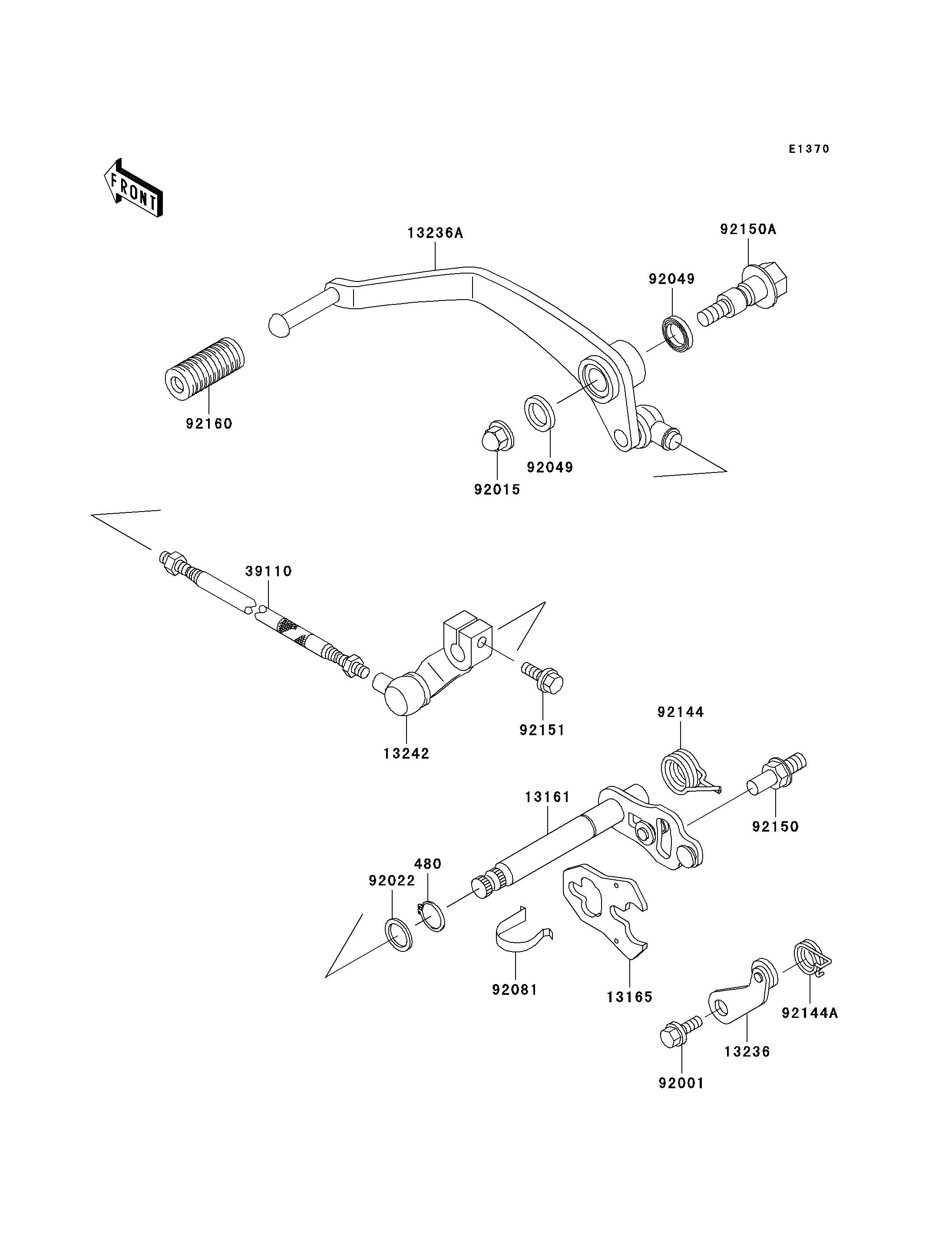

1996 Vulcan 800 Classic - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
480
13161
13165
13236
13236A
13242
39110
92001
92015
92022
92049
92049
92081
92144
92144A
92150
92150A
92151
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,13MM 480 480J1300 1
LEVER-COMP-CHANGE SHAFT 13161 13161-1218 1
PAWL,CHANGE LEVER 13165 13165-1151 1
LEVER-COMP,POSITION 13236 13236-1126 1
LEVER-COMP,CHANGE PEDAL 13236A 13236-1271 1
LEVER-ASSY-CHANGE 13242 13242-1290 1
ROD-ASSY-TIE 39110 39110-1111 1
BOLT,GEAR CHANGE LEVER 92001 92001-1715 1
NUT,CAP,8MM 92015 92015-1370 1
WASHER,13.2X20X0.5 92022 92022-1224 1
SEAL-OIL,VB13193 92049 92049-1398 2
SPRING,CHANGE LEVER 92081 92081-1829 1
SPRING,CHANGE PEDAL RETURN 92144 92144-1345 1
SPRING,LEVER 92144A 92144-1850 1
BOLT,RETURN SPRING 92150 92150-1869 1
BOLT,CHANGE PEDAL 92150A 92150-1908 1
BOLT,6X20 92151 92151-1450 1
DAMPER,CHANGE PEDAL 92160 92160-1637 1
