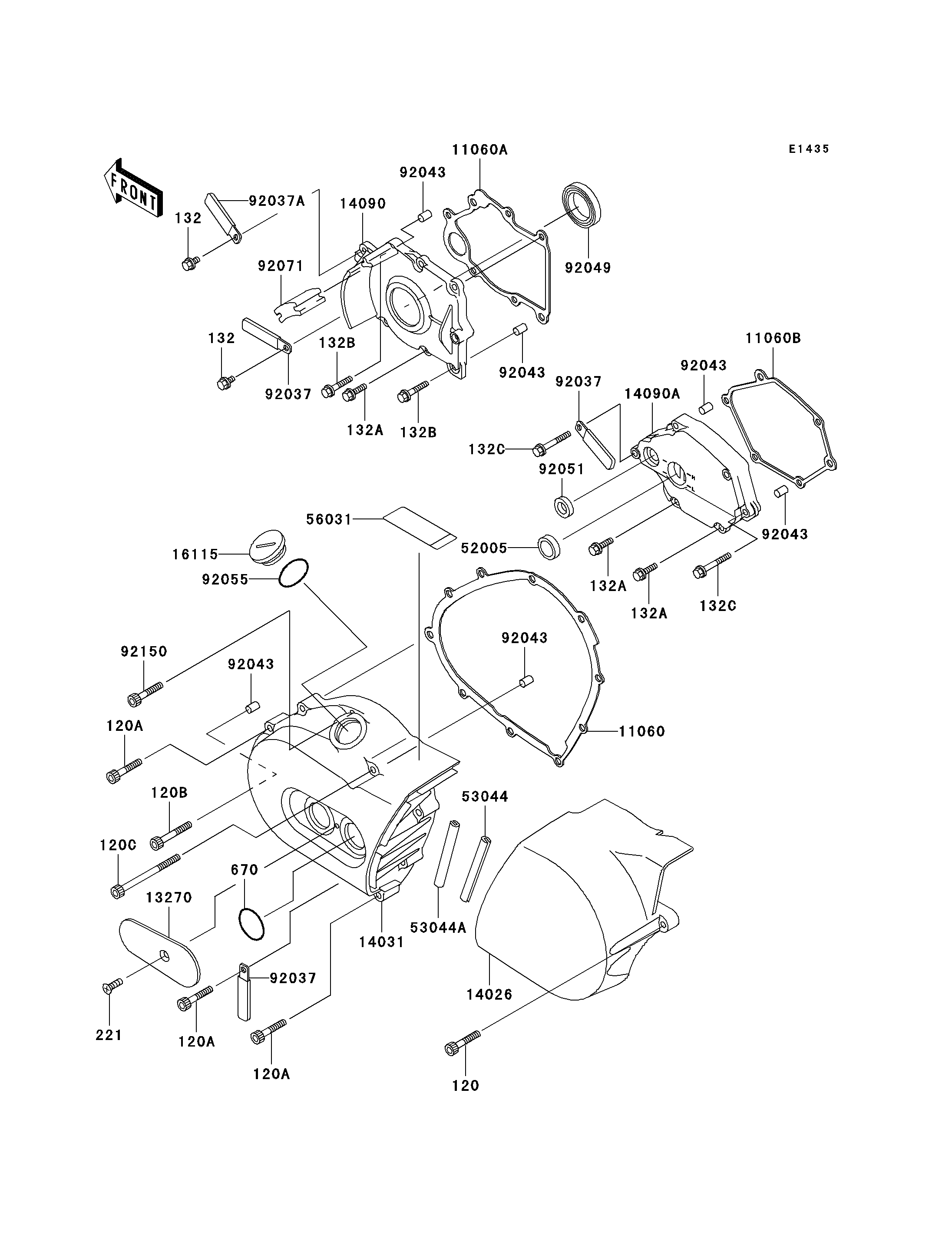

1996 Vulcan 800 Classic - Left Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120A
120A
120A
120B
120C
132
132
132A
132A
132A
132B
132B
132C
132C
221
670
11060
11060A
11060B
13270
14026
14031
14090
14090A
16115
52005
53044
53044A
56031
92037
92037
92037
92037A
92043
92043
92043
92043
92043
92043
92049
92051
92055
92071
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120R0630 1
BOLT-SOCKET 120A 120R0635 7
BOLT-SOCKET 120B 120R0645 1
BOLT-SOCKET 120C 120R0685 1
BOLT-FLANGED-SMALL,6X10 132 132H0610 2
BOLT-FLANGED-SMALL 132A 132J0620 7
BOLT-FLANGED-SMALL 132B 132J0630 2
BOLT-FLANGED-SMALL,6X40 132C 132J0640 4
SCREW-CSK-CROS,6X14 221 221R0614 1
O RING 670 670B3034 2
GASKET,GENERATOR COVER 11060 11060-1089 1
GASKET,TRANSMISSION COVER 11060A 11060-1683 1
GASKET,MECHANISM COVER 11060B 11060-1685 1
PLATE 13270 13270-1397 1
COVER-CHAIN 14026 14026-1217 1
COVER-GENERATOR 14031 14031-1308 1
COVER,TRANSMISSION 14090 14090-1552 1
COVER,MECHANISM 14090A 14090-1559 1
CAP-OIL FILLER 16115 16115-1063 1
GAUGE,OIL LEVEL 52005 52005-1009 1
TRIM 53044 53044-1285 1
TRIM 53044A 53044-1286 1
LABEL-MANUAL,OIL CAPACITY 56031 56031-1894 1
CLAMP,L=45 92037 92037-1539 3
CLAMP 92037A 92037-1993 1
PIN,6.2X8X14 92043 92043-1263 6
SEAL-OIL,TC32488 92049 92049-1361 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O,31.7X2.4 92055 92055-049 1
GROMMET 92071 92071-1232 1
BOLT,SOCKET,6X35 92150 92150-1887 1
