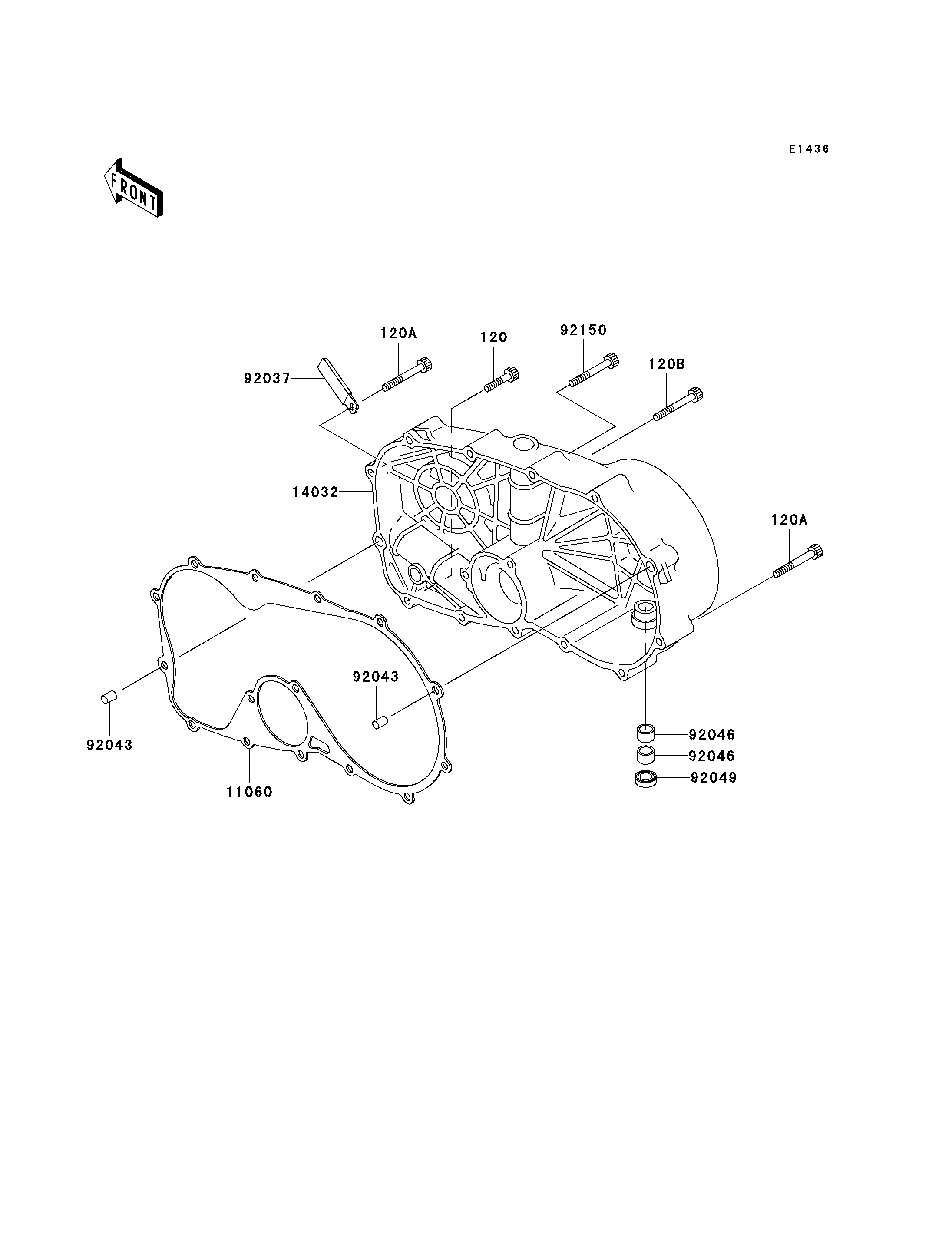

1996 Vulcan 800 Classic - Right Engine Cover(s)

120
120A
120A
120B
11060
14032
92037
92043
92043
92046
92046
92049
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120R0630 3
BOLT-SOCKET 120A 120R0650 10
BOLT-SOCKET 120B 120R0665 1
GASKET,CLUTCH COVER 11060 11060-1926 1
COVER-CLUTCH 14032 14032-1403 1
CLAMP,WIRING HARNESS,L=60 92037 92037-1069 1
PIN,6.2X8X14 92043 92043-1263 2
BEARING-NEEDLE,HK1210 92046 92046-1010 2
SEAL-OIL,TB12205.5 92049 92049-1271 1
BOLT,SOCKET,6X50 92150 92150-1436 1
