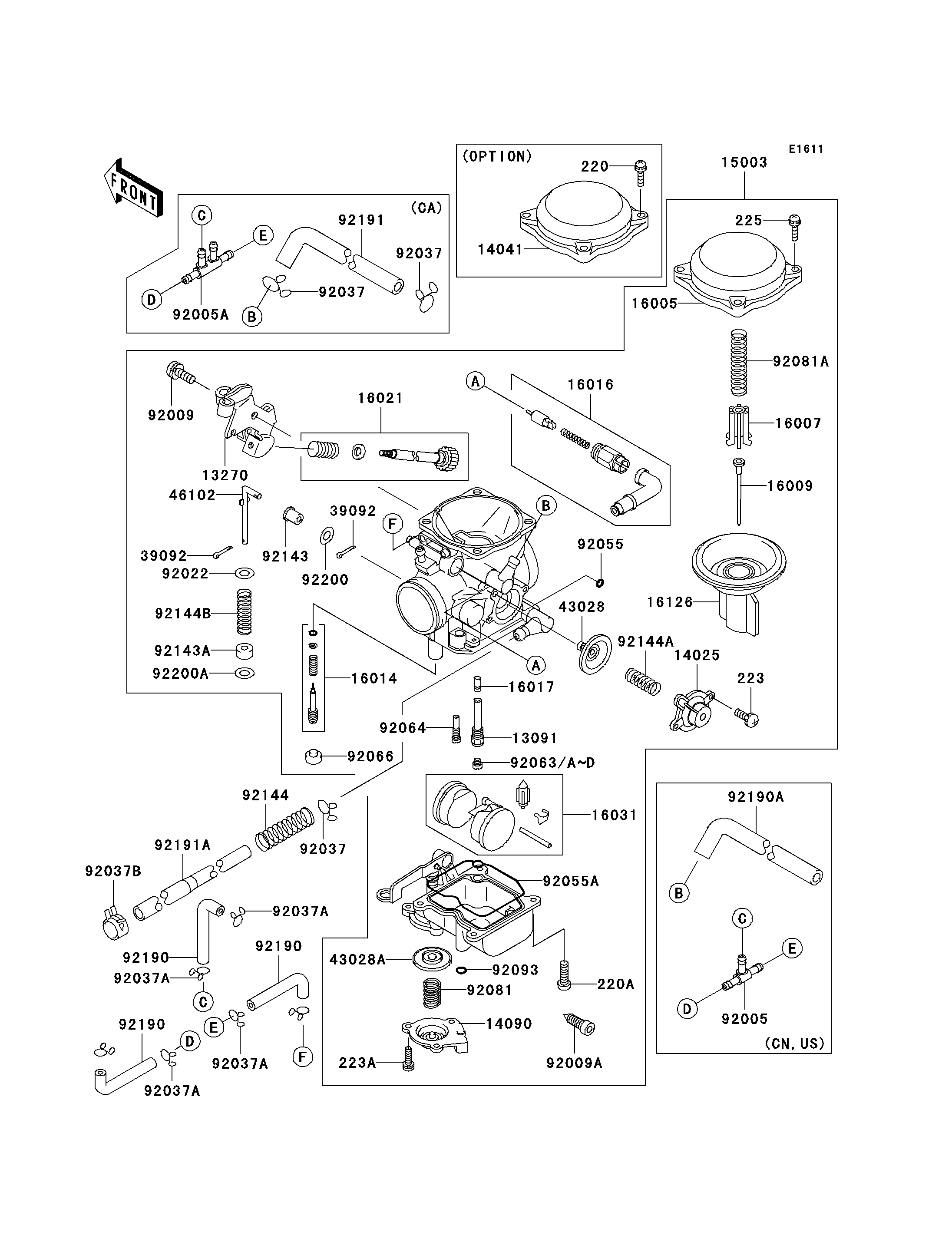

1996 Vulcan 800 Classic - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
13091
13091
13270
13270
14025
14025
14041
14041
14090
14090
15003
15003
16005
16005
16007
16007
16009
16009
16014
16014
16016
16016
16017
16017
16021
16021
16031
16031
16126
16126
39092
39092
39092
39092
43028
43028
43028A
43028A
46102
46102
92009
92009
92009A
92009A
92022
92022
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037B
92037B
92055
92055
92055A
92055A
92063
92063
92063A
92063A
220
220
220A
220A
223
223
223A
223A
225
225
92063B
92063B
92063C
92063C
92063D
92063D
92064
92064
92066
92066
92081
92081
92081A
92081A
92093
92093
92143
92143
92143A
92143A
92144
92144
92144A
92144A
92144B
92144B
92190
92190
92190
92190
92190
92190
92191A
92191A
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13091 13091-1930 1
PLATE 13270 13270-1513 1
COVER,AIR CUT VALVE 14025 14025-1903 1
TOP-CHAMBER,MIXING,OUTSIDE 14041 14041-1076 1 (OPTION)
COVER,ACCELERATOR 14090 14090-1635 1
CARBURETOR-ASSY 15003 15003-1200 1
TOP-CHAMBER,MIXING,27/60 16005 16005-1057 1
SEAT-SPRING,VALVE 16007 16007-1117 1
NEEDLE-JET 16009 16009-1861 1
SCREW-PILOT AIR 16014 16014-1081 1
PLUNGER,STARTER 16016 16016-1100 1
JET-NEEDLE 16017 16017-1377 1
SCREW-THROTTLE STOP 16021 16021-1207 1
FLOAT 16031 16031-1089 1
VALVE,VACUUM 16126 16126-1170 1
PIN-HAIR 39092 39092-1058 2
DIAPHRAGM,5.9MM,AIR CUT VALVE 43028 43028-1053 1
DIAPHRAGM 43028A 43028-1077 1
ROD 46102 46102-1385 1
SCREW,5X10 92009 92009-1365 1
SCREW,DRAIN,M6X0.75 92009A 92009-1551 1
WASHER,PLAIN,STOP SPRING 92022 92022-1480 1
CLAMP 92037A 92037-1610 6
CLAMP 92037B 92037-2082 1
RING-O 92055 92055-1245 1
RING-O,FLOAT CHAMBER 92055A 92055-1518 1
JET-MAIN,#140 92063 92063-1013 1 (RACING USE ONLY)
JET-MAIN,#135 92063A 92063-1014 1
SCREW-PAN-CROS 220 220B0408 4 (OPTION)
SCREW-PAN-CROS 220A 220D0414 4
SCREW-PAN-WS-CROS 223 223C0408 2
SCREW-PAN-WS-CROS 223A 223D0410 3
SCREW-PAN-WSP-CROS 225 225C0418 4
JET-MAIN,#138 92063B 92063-1015 1 (RACING USE ONLY)
JET-MAIN,#130 92063C 92063-1075 1 (RACING USE ONLY)
JET-MAIN,#132 92063D 92063-1076 1 (RACING USE ONLY)
JET-PILOT 92064 92064-1174 1
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 1
SPRING,DIAPHRAGM 92081 92081-1092 1
SPRING,VACUUM VALVE 92081A 92081-1826 1
SEAL,"U"RING 92093 92093-1046 1
COLLAR 92143 92143-1790 1
COLLAR 92143A 92143-1791 1
SPRING,FUEL TUBE 92144 92144-1874 1
SPRING 92144A 92144-1885 1
SPRING 92144B 92144-1886 1
TUBE,4X9X80 92190 92190-1610 3
TUBE 92191A 92191-1041 1
WASHER 92200 92200-1274 1
WASHER 92200A 92200-1275 1
FITTING,TUBE,T-TYPE 92005 92005-1017 1 CNUS
FITTING 92005A 92005-1307 1 CA
CLAMP,HOSE 92037 92037-1104 1 CNUS
CLAMP,HOSE 92037 92037-1104 3 CA
TUBE,CANISTER-AIR FILTER 92190A 92190-1619 1 CNUS
TUBE,7X12X480,YELLOW 92191 92191-1008 1 CA
