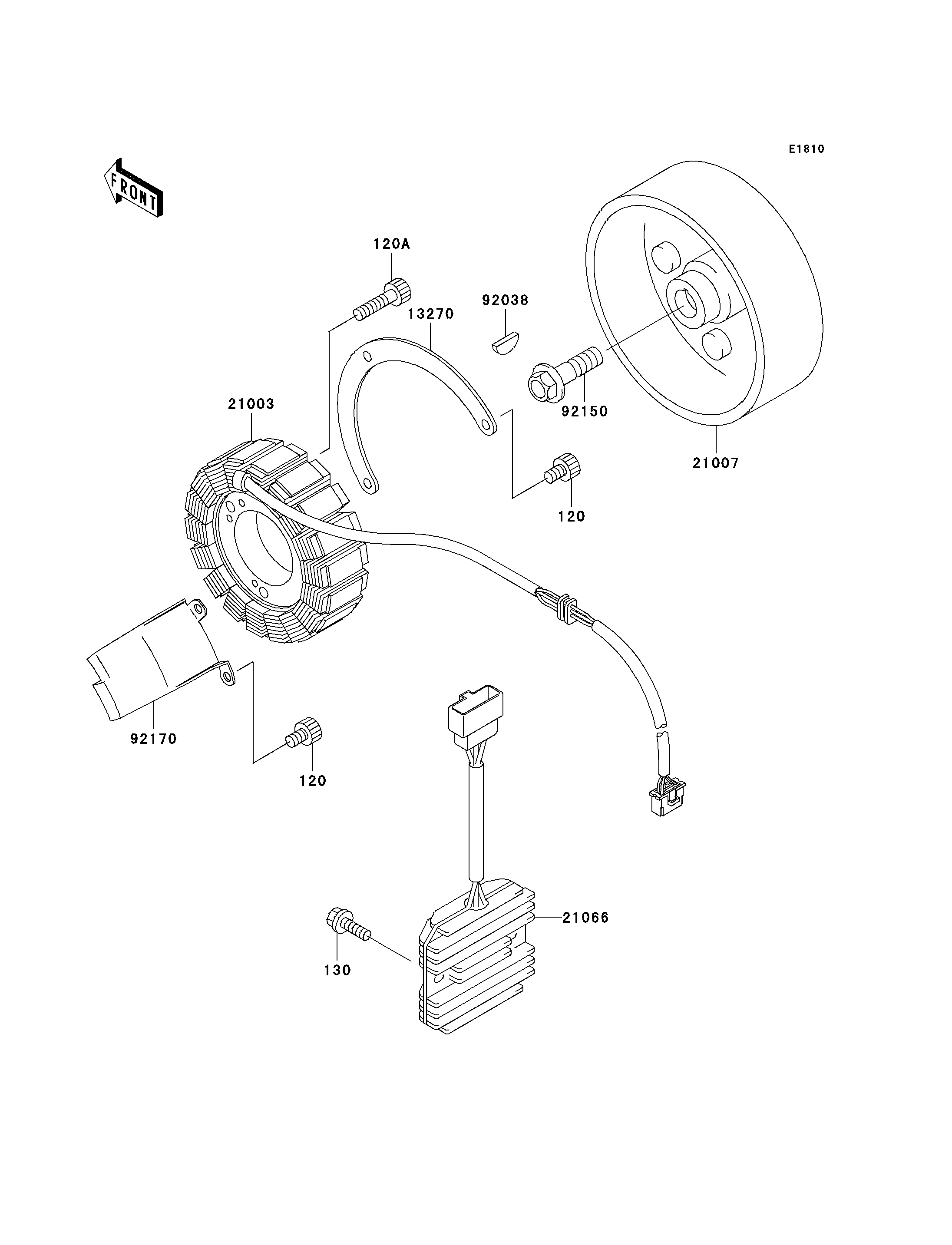

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120P0510 5
BOLT-SOCKET,6X35 120A 120P0635 3
BOLT-FLANGED 130 130J0620 2
PLATE 13270 13270-1398 1
STATOR 21003 21003-1280 1
ROTOR,GENERATOR 21007 21007-1279 1
REGULATOR-VOLTAGE 21066 21066-1099 1
KEY,WOODRUFF 92038 92038-001 1
BOLT,12X40 92150 92150-1717 1
CLAMP 92170 92170-1559 1
