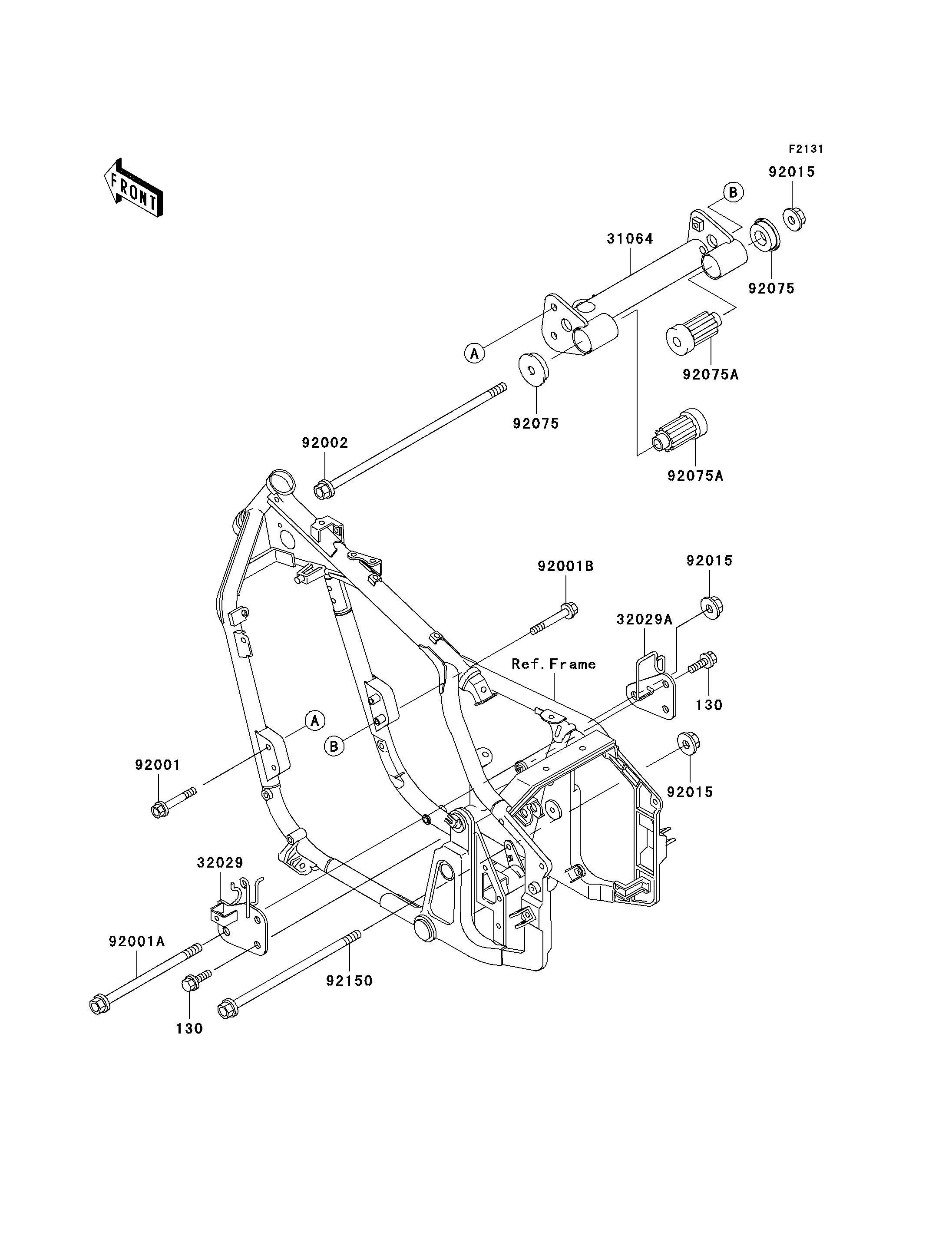

1996 Vulcan 800 Classic - Frame Fittings
130
130
31064
32029
32029A
92001
92001A
92001B
92002
92015
92015
92015
92075
92075
92075A
92075A
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X16,BLACK | 130 | 130J0816 | 4 | ||
| PIPE-COMP,ENGINE MOUNT,FR | 31064 | 31064-1175 | 1 | ||
| BRACKET-ENGINE,RR,UPP,LH | 32029 | 32029-1947 | 1 | ||
| BRACKET-ENGINE,RR,UPP,RH | 32029A | 32029-1948 | 1 | ||
| BOLT,FLANGED,8X50 | 92001 | 92001-1614 | 2 | ||
| BOLT,FLANGED,10X155,BLACK | 92001A | 92001-1620 | 1 | ||
| BOLT,FLANGED,8X55,BLACK | 92001B | 92001-1641 | 2 | ||
| BOLT,FLANGED,10X285 | 92002 | 92002-1206 | 1 | ||
| NUT,FLANGED,10MM | 92015 | 92015-1180 | 3 | ||
| DAMPER,ENGINE BRACKET | 92075 | 92075-1738 | 2 | ||
| DAMPER,ENGINE MOUNT,MAIN | 92075A | 92075-1739 | 2 | ||
| BOLT,FLANGED,10X205 | 92150 | 92150-1899 | 1 |
