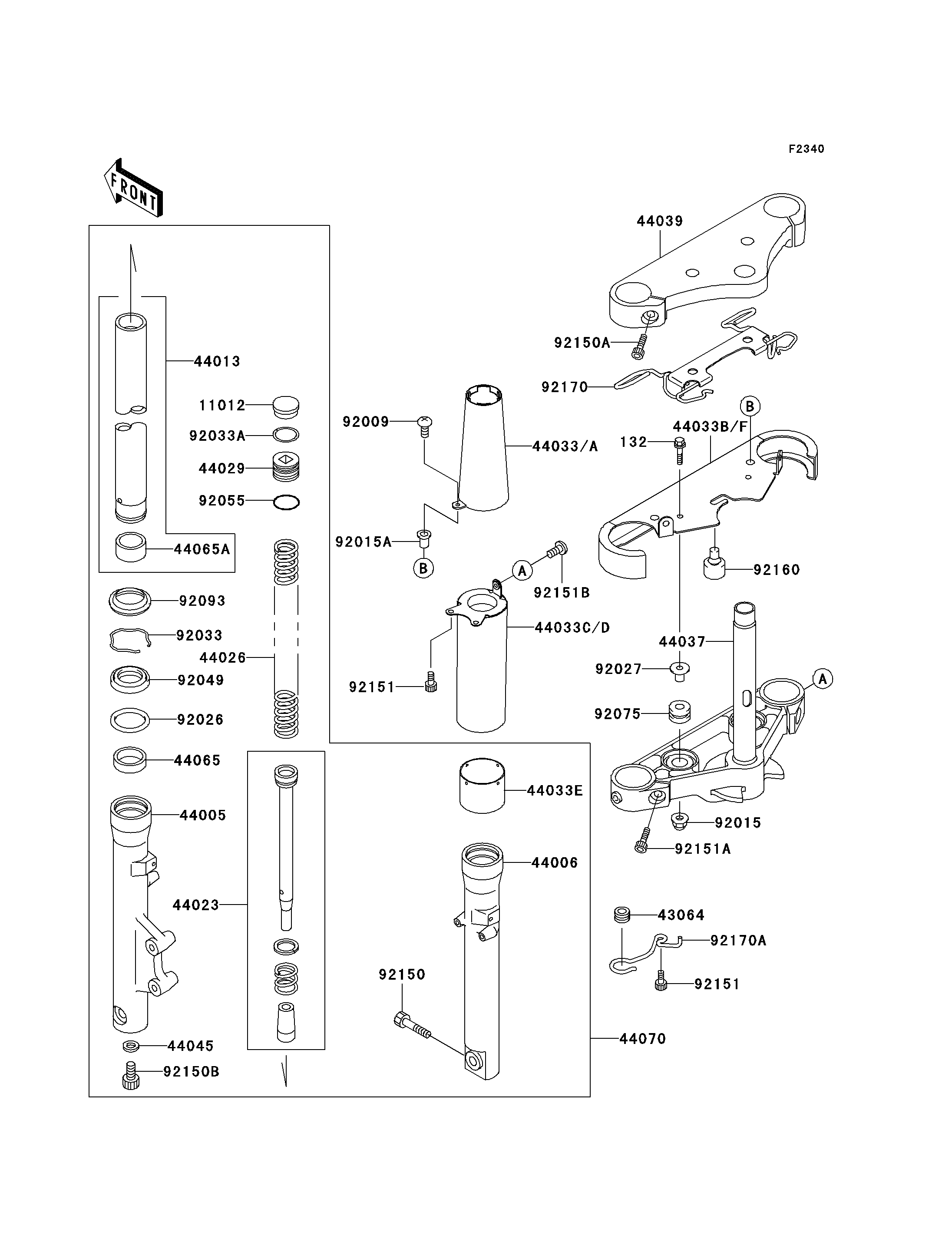

1996 Vulcan 800 Classic - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
43064
43064
44005
44005
44006
44006
44013
44013
44023
44023
44026
44026
44029
44029
44033
44033
44033A
44033A
44033B
44033B
44033C
44033C
44033D
44033D
44033E
44033E
44037
44037
44039
44039
44045
44045
44065
44065
44065A
44065A
44070
44070
92009
92009
92015
92015
92015A
92015A
92026
92026
92027
92027
92033
92033
92033A
92033A
92049
92049
92055
92055
92075
92075
92093
92093
92150
92150
92150A
92150A
92150B
92150B
92151
92151
92151
92151
92151A
92151A
92151B
92151B
92160
92160
92170
92170
92170A
92170A
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FORK TOP 11012 11012-1618 2
GROMMET,HOSE CLAMP 43064 43064-006 1
PIPE-LEFT FORK OUTER 44005 44005-1366 1
PIPE-RIGHT FORK OUTER 44006 44006-1365 1
PIPE-FORK INNER 44013 44013-1426 2
CYLINDER-COMP-FORK 44023 44023-1103 2
SPRING-FRONT FORK 44026 44026-1615 2
SEAT-FORK SPRING 44029 44029-1125 2
COVER-FORK,UPP,LH 44033 44033-1215 1
COVER-FORK,UPP,RH 44033A 44033-1216 1
COVER-FORK,LWR 44033B 44033-1217 1
COVER-FORK,UNDER,LH 44033C 44033-1221 1
COVER-FORK,UNDER,RH 44033D 44033-1222 1
COVER-FORK 44033E 44033-1223 2
HOLDER-FORK UNDER 44037 44037-1344 1
HOLDER-FORK UPPER 44039 44039-1260 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
BUSHING-FRONT FORK 44065 44065-1079 2
BUSHING-FRONT FORK,INNER PIPE 44065A 44065-1087 2
DAMPER-ASSY,FORK 44070 44070-1511 1
SCREW,5X16,BLACK 92009 92009-1654 2
NUT,CAP,6MM 92015 92015-1385 2
NUT,WELL,5MM 92015A 92015-1757 2
SPACER,FORK OUTER 92026 92026-1276 2
COLLAR,L=16.1 92027 92027-1847 2
RING-SNAP,FORK OUTER 92033 92033-1222 2
RING-SNAP,SPRING SEAT 92033A 92033-1223 2
SEAL-OIL,FORK 92049 92049-1363 2
RING-O,SPRING SEAT 92055 92055-1363 2
DAMPER 92075 92075-1035 2
SEAL,FORK 92093 92093-1268 2
BOLT,SOCKET,10X40 92150 92150-1029 1
BOLT,SOCKET,8X30 92150A 92150-1031 2
BOLT,SOCKET,8X18 92150B 92150-1432 2
BOLT,SOCKET,6X14 92151 92151-1068 4
BOLT,SOCKET,10X25 92151A 92151-1083 2
BOLT,SOCKET,5X10 92151B 92151-1097 2
DAMPER 92160 92160-1555 2
CLAMP 92170 92170-1546 1
CLAMP,CABLE 92170A 92170-1658 1
BOLT-FLANGED-SMALL 132 132E0630 2
