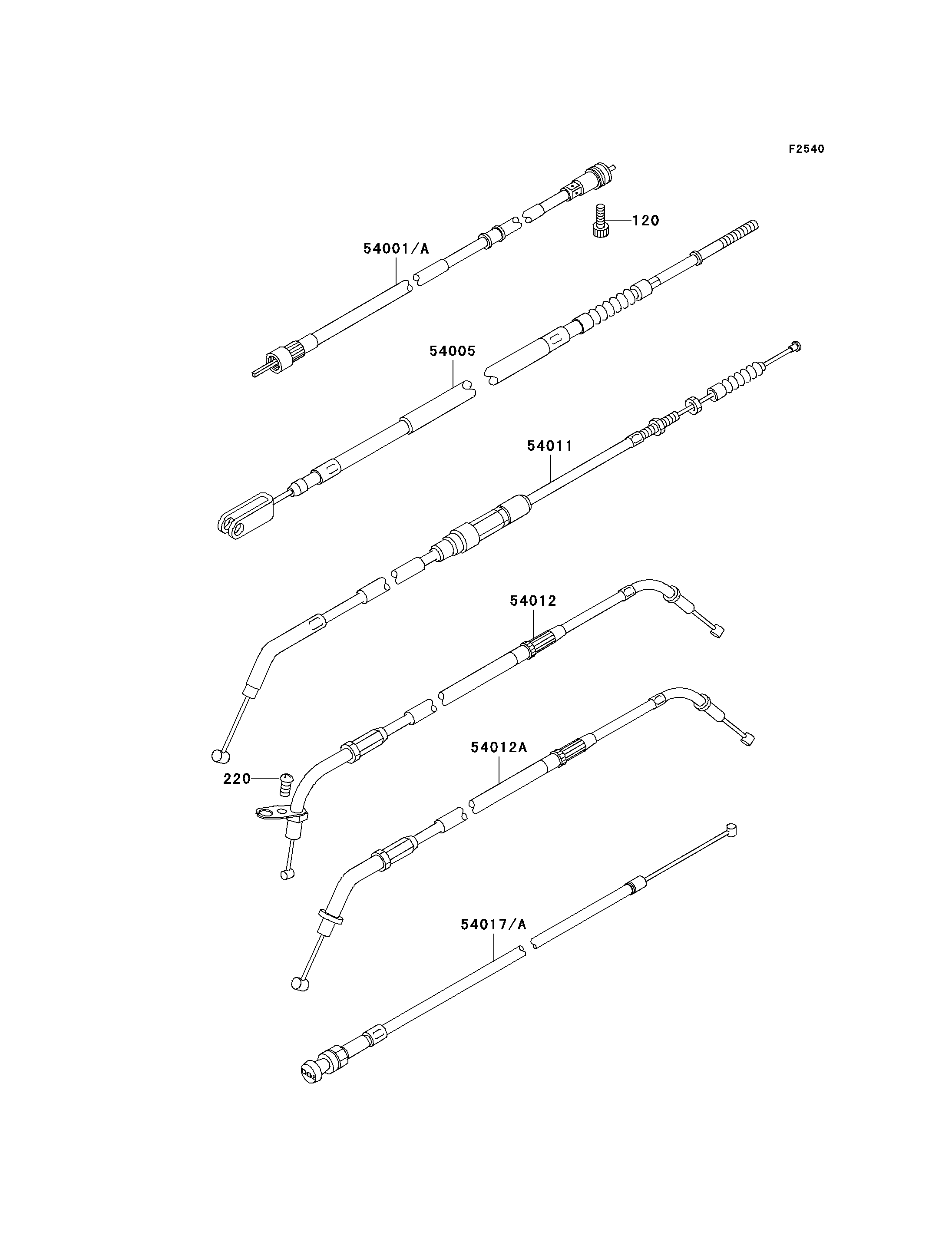

120
220
54001
54005
54011
54012
54012A
54017
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120P0520 1
SCREW-PAN-CROS 220 220C0514 1
CABLE-SPEEDMETER 54001 54001-1206 1
CABLE-BRAKE 54005 54005-1182 1
CABLE-CLUTCH 54011 54011-1356 1
CABLE-THROTTLE,OPENING 54012 54012-1525 1
CABLE-THROTTLE,CLOSING 54012A 54012-1526 1
CABLE-STARTER 54017 54017-1174 1
