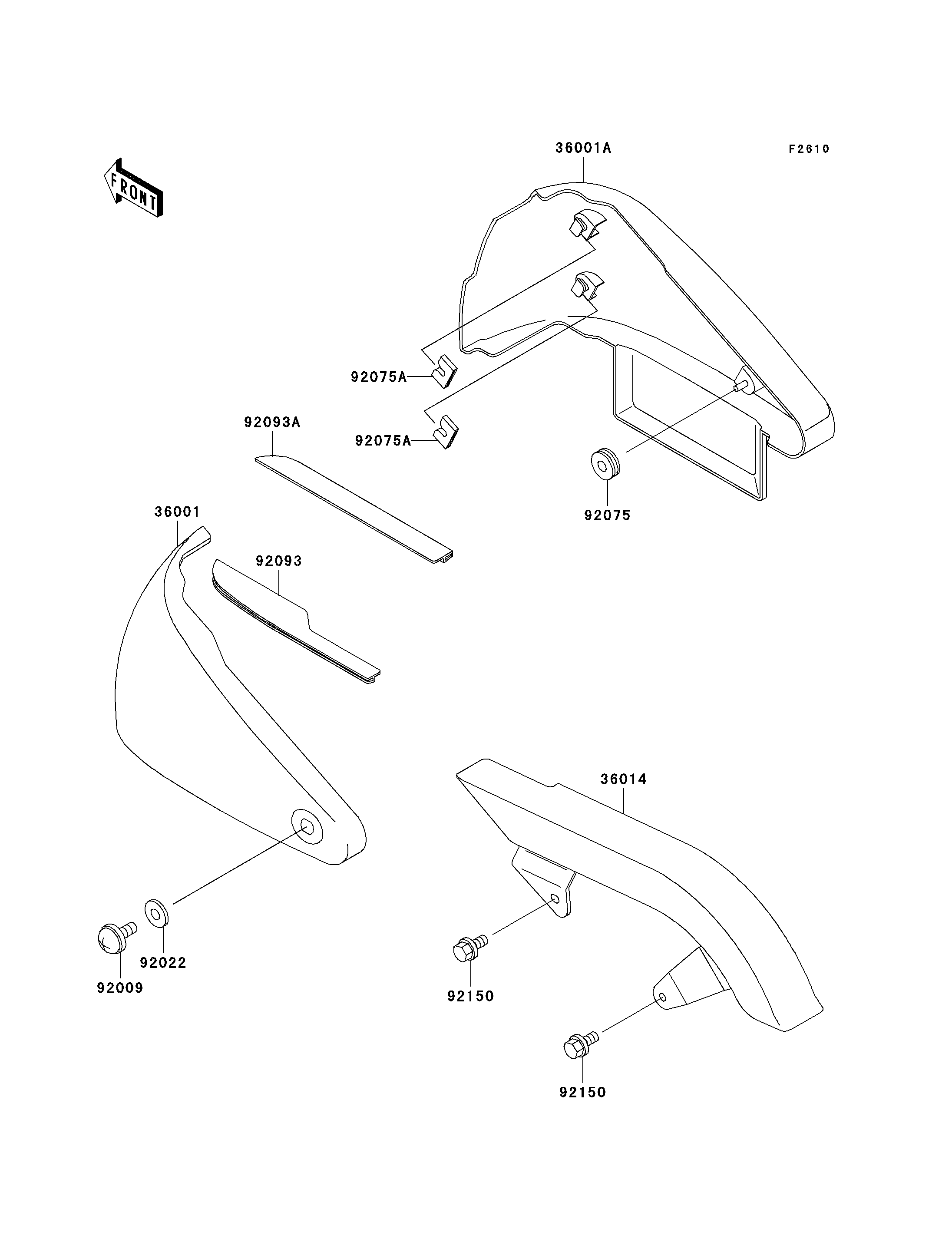

1996 Vulcan 800 Classic - Side Covers/Chain Cover

36001
36001A
36014
92009
92022
92075
92075A
92075A
92093
92093A
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,EBONY 36001 36001-1550-H8 1
COVER-SIDE,RH,EBONY 36001A 36001-1551-H8 1
CASE-CHAIN 36014 36014-1198 1
SCREW,6X18 92009 92009-1663 1
WASHER,6.5X16X1 92022 92022-1143 1
DAMPER 92075 92075-1629 1
DAMPER 92075A 92075-1967 4
SEAL,SIDE COVER,LH 92093 92093-1405 1
SEAL,SIDE COVER,RH 92093A 92093-1406 1
BOLT,6X14 92150 92150-1340 2
