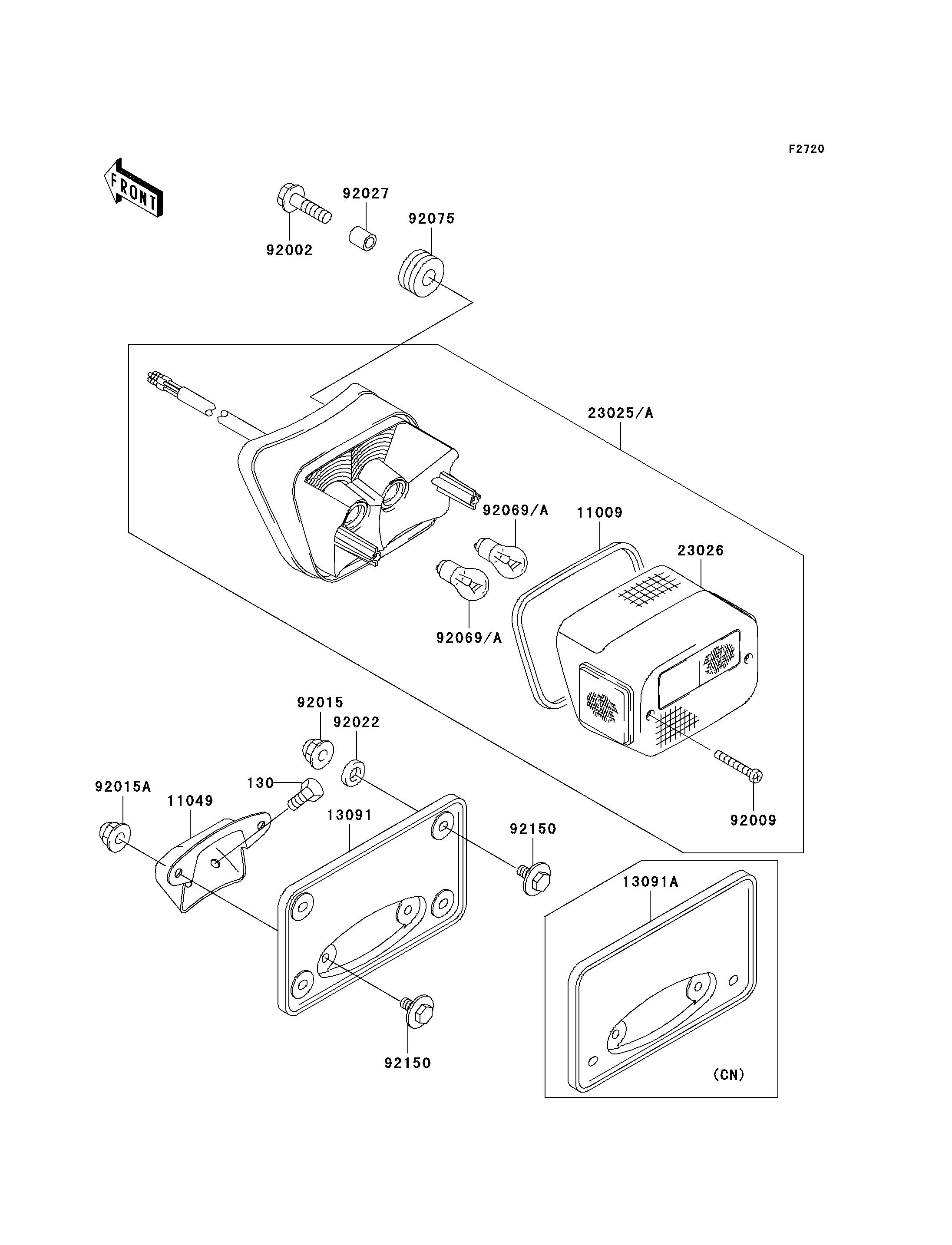

1996 Vulcan 800 Classic - Taillight(s)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X10 | 130 | 130V0610 | 2 | ||
GASKET,TAIL LAMP LENS | 11009 | 11009-1660 | 1 | ||
BRACKET,LICENSE PLATE | 11049 | 11049-1436 | 1 | ||
LAMP-TAIL | 23025 | 23025-1252 | 1 | ||
LENS,TAIL LAMP | 23026 | 23026-1087 | 1 | ||
BOLT,6X22 | 92002 | 92002-1262 | 3 | ||
SCREW,TAPPING,4X20 | 92009 | 92009-1378 | 2 | ||
NUT,CAP,6MM | 92015A | 92015-1385 | 2 | ||
COLLAR,6.8X10X12 | 92027 | 92027-162 | 3 | ||
BULB,12V 27/8W | 92069 | 92069-059 | 2 | ||
DAMPER | 92075 | 92075-209 | 3 | ||
HOLDER,LICENSE PLATE | 13091 | 13091-1500 | 1 | CAUS | |
HOLDER,LICENSE PLATE | 13091A | 13091-1952 | 1 | CN | |
NUT,CAP,6MM,BLACK | 92015 | 92015-1170 | 2 | CN | |
NUT,CAP,6MM,BLACK | 92015 | 92015-1170 | 4 | CAUS | |
WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 2 | CN | |
WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 4 | CAUS | |
BOLT,6X14 | 92150 | 92150-1133 | 4 | CN | |
BOLT,6X14 | 92150 | 92150-1133 | 6 | CAUS |
