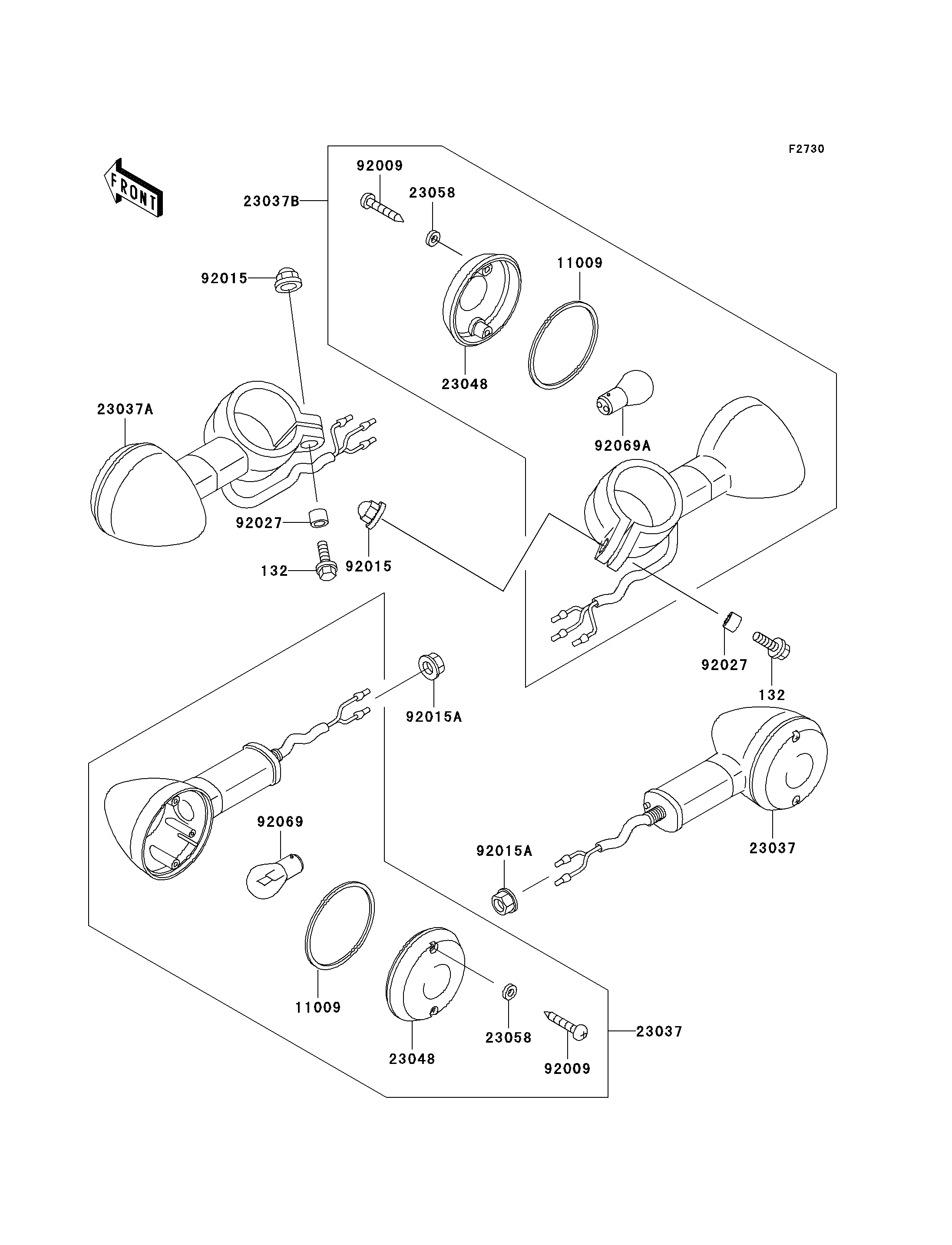

1996 Vulcan 800 Classic - Turn Signals
132
132
11009
11009
23037
23037
23037A
23037B
23048
23048
23058
23058
92009
92009
92015
92015
92015A
92015A
92027
92027
92069
92069A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132E0620 | 2 | ||
| GASKET,SIGNAL LAMP | 11009 | 11009-1413 | 4 | ||
| LAMP-ASSY-SIGNAL,RR | 23037 | 23037-1315 | 2 | ||
| LAMP-ASSY-SIGNAL,FR,LH | 23037A | 23037-1317 | 1 | ||
| LAMP-ASSY-SIGNAL,FR,RH | 23037B | 23037-1318 | 1 | ||
| LENS-SIGNAL LAMP | 23048 | 23048-1066 | 4 | ||
| WASHER,PLAIN,4MM | 23058 | 23058-002 | 8 | ||
| SCREW,TAPPING,4X25 | 92009 | 92009-1637 | 8 | ||
| NUT,CAP,6MM | 92015 | 92015-1385 | 2 | ||
| NUT,FLANGED,10MM | 92015A | 92015-1428 | 2 | ||
| COLLAR,6.8X10X12 | 92027 | 92027-162 | 2 | ||
| BULB,12V 32CP(23W) | 92069 | 92069-055 | 2 | ||
| BULB,12V 32/3CP(23/8W) | 92069A | 92069-060 | 2 |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,SIGNAL LAMP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| LAMP-ASSY-SIGNAL,RR | |
| REF # | 23037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LAMP-ASSY-SIGNAL,FR,LH | |
| REF # | 23037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-ASSY-SIGNAL,FR,RH | |
| REF # | 23037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS-SIGNAL LAMP | |
| REF # | 23048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,4MM | |
| REF # | 23058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X25 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10X12 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 32CP(23W) | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 32/3CP(23/8W) | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
