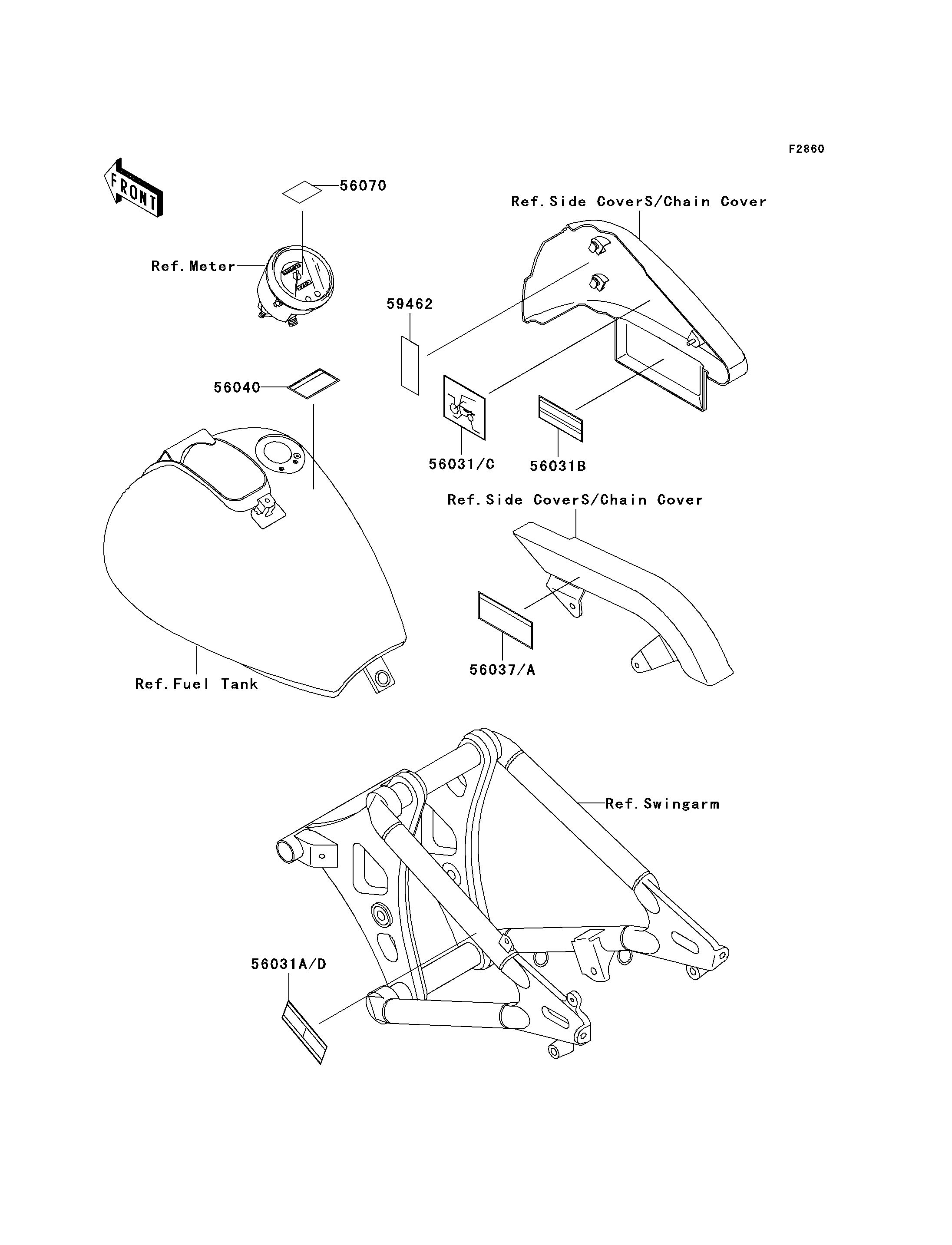

56031
56031B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,DAILY SAFETY 56031 56031-1936 1
LABEL-MANUAL,OIL&OIL FILTER 56031B 56031-1938 1
LABEL-MANUAL,CHAIN 56031A 56031-1937 1 CAUS
LABEL-MANUAL,DAILY SAFETY 56031C 56031-1940 1 CN
LABEL-MANUAL,CHAIN 56031D 56031-1941 1 CN
LABEL-SPECIFICATION,TIRE&LOAD 56037 56037-1727 1 CAUS
LABEL-SPECIFICATION,TIRE&LOAD 56037A 56037-1728 1 CN
LABEL-WARNING,EVAPO 56040 56040-1121 1 CA
LABEL-WARNING,BREAK IN CAUTION 56070 56070-1095 1 CAUS
LABEL-CERTIFICATION,EVAPO ROUT 59462 59462-1755 1 CA
