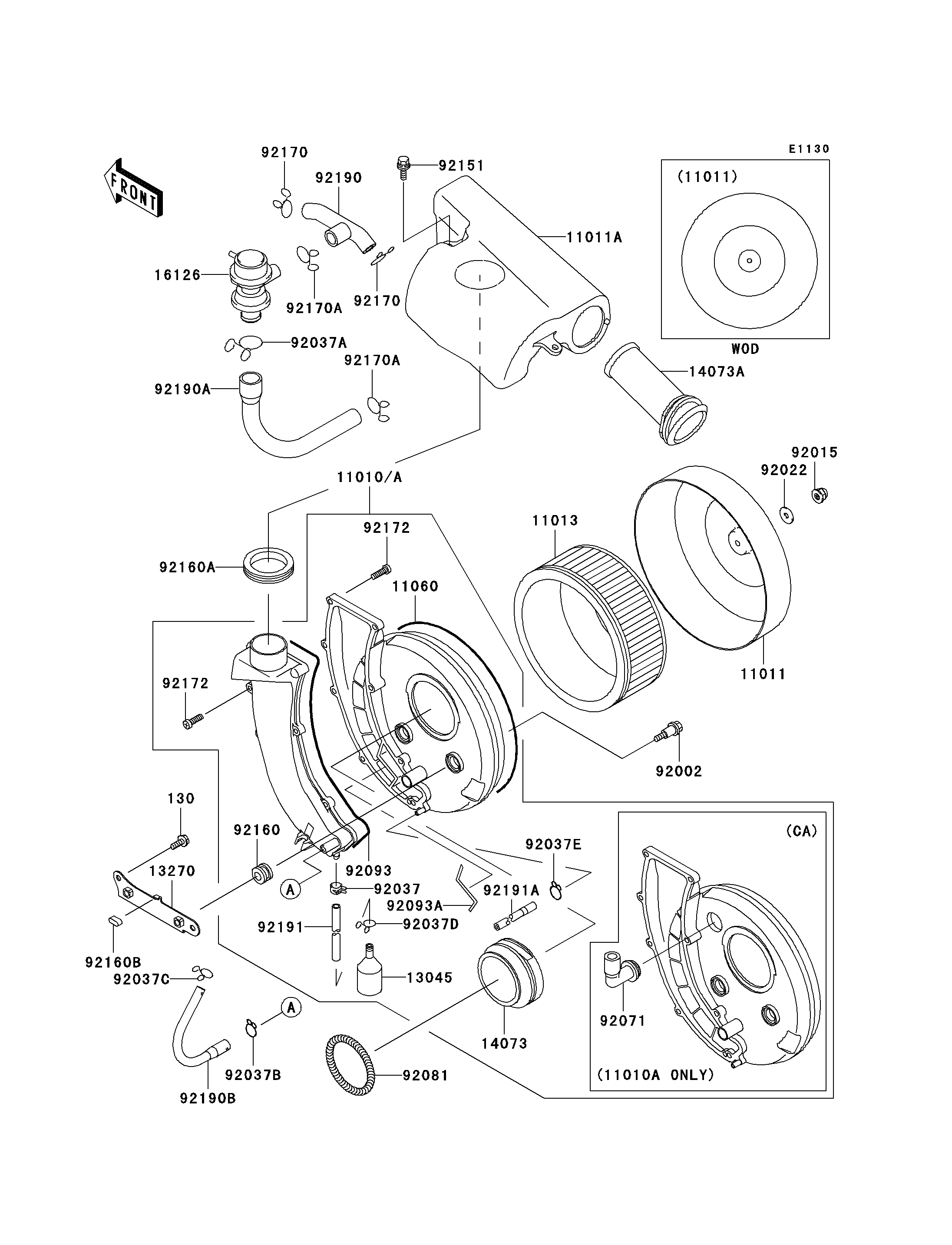

Parts Diagrams |
130
11011
11011A
11013
11060
13045
13270
14073
14073A
16126
92002
92015
92022
92037
92037A
92037B
92037C
92037D
92037E
92081
92093
92093A
92151
92160
92160A
92160B
92170
92170
92170A
92170A
92172
92172
92190
92190A
92190B
92191
92191A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X16,BLACK | 130 | 130J0616 | 2 | ||
CASE-AIR FILTER,COVER | 11011 | 11011-1453 | 1 | ||
CASE-AIR FILTER,CHAMBER | 11011A | 11011-1454 | 1 | ||
ELEMENT-AIR FILTER | 11013 | 11013-1243 | 1 | ||
GASKET,AIR FILTER | 11060 | 11060-1721 | 1 | ||
RECEIVER-OIL | 13045 | 13045-1057 | 1 | ||
PLATE,AIR FILTER CASE | 13270 | 13270-1388 | 1 | ||
DUCT,AIR FILTER | 14073 | 14073-1622 | 1 | ||
DUCT,AIR FILTER CHAMBER | 14073A | 14073-1623 | 1 | ||
VALVE,AIR SWITCH | 16126 | 16126-1289 | 1 | ||
BOLT | 92002 | 92002-1595 | 2 | ||
NUT,CAP,6MM | 92015 | 92015-1385 | 1 | ||
WASHER,6.5X20X1.6,WHITE | 92022 | 92022-193 | 1 | ||
CLAMP,TUBE | 92037 | 92037-010 | 1 | ||
CLAMP,TUBE | 92037A | 92037-1076 | 1 | ||
CLAMP,FUEL TUBE | 92037B | 92037-1271 | 1 | ||
CLAMP,TUBE | 92037C | 92037-147 | 1 | ||
CLAMP | 92037D | 92037-1712 | 1 | ||
CLAMP,TUBE | 92037E | 92037-3025 | 1 | ||
SPRING,DUCT | 92081 | 92081-1638 | 1 | ||
SEAL,AIR FILTER | 92093 | 92093-1501 | 1 | ||
SEAL,AIR FILTER | 92093A | 92093-1502 | 1 | ||
BOLT | 92151 | 92151-1579 | 2 | ||
DAMPER | 92160 | 92160-1594 | 2 | ||
DAMPER | 92160A | 92160-1600 | 1 | ||
DAMPER,PLATE | 92160B | 92160-1605 | 1 | ||
CLAMP | 92170 | 92170-1017 | 2 | ||
CLAMP,TUBE | 92170A | 92170-1445 | 2 | ||
SCREW,TAPPING,5X20 | 92172 | 92172-0009 | 8 | ||
TUBE,AIR SWITCH-HEAD | 92190 | 92190-1600 | 1 | ||
TUBE,AIR SWITCH-FILTER CASE | 92190A | 92190-1601 | 1 | ||
TUBE,BREATHER | 92190B | 92190-1602 | 1 | ||
TUBE,6X9X345 | 92191 | 92191-1111 | 1 | ||
TUBE | 92191A | 92191-1112 | 1 | ||
FILTER-ASSY-AIR | 11010 | 11010-0031 | 1 | CNUS | |
FILTER-ASSY-AIR | 11010A | 11010-1671 | 1 | CA | |
GROMMET,AIR FILTER | 92071 | 92071-1114 | 1 | CA |
