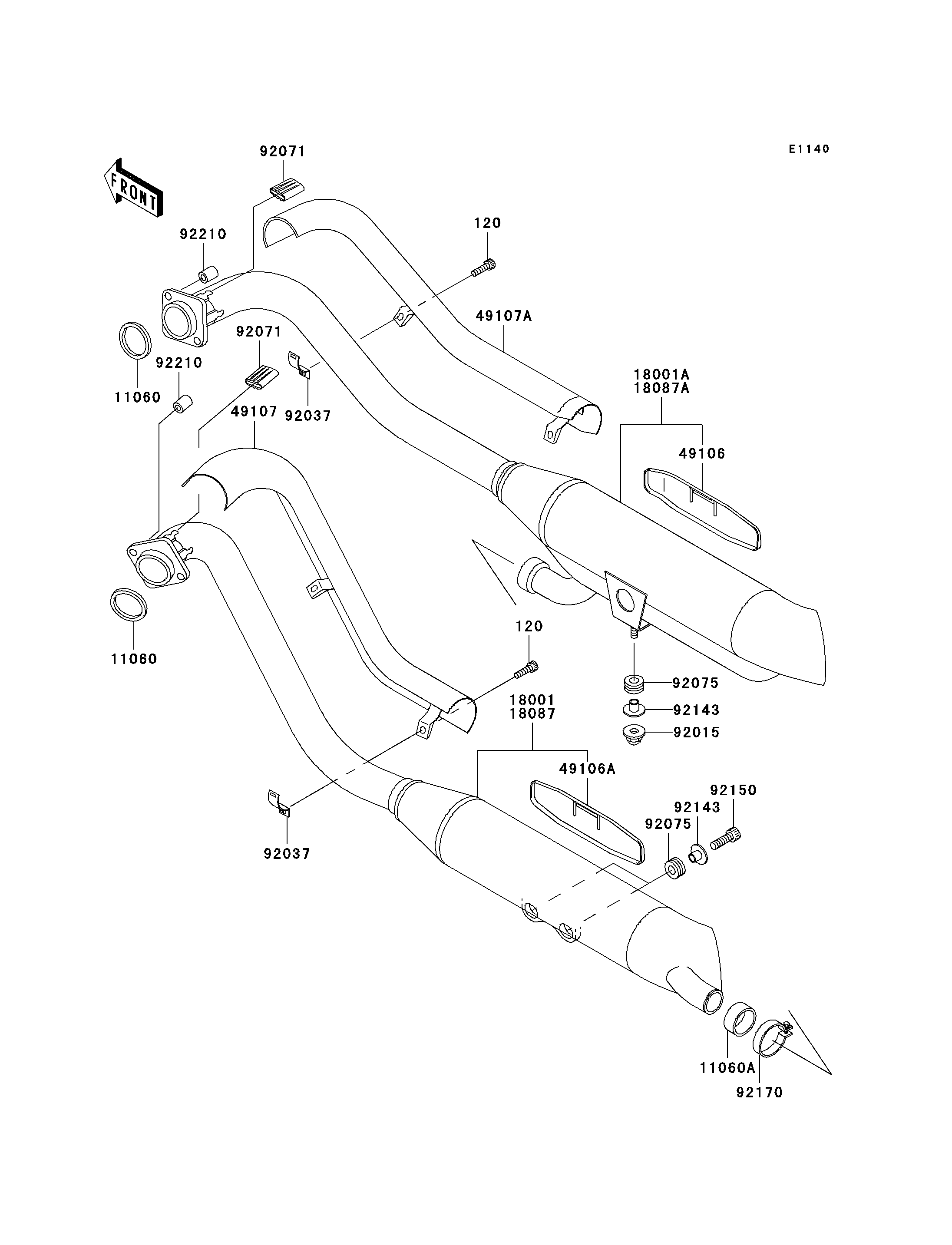

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120Z0620 | 4 | ||
GASKET,EXHAUST PIPE | 11060 | 11060-1680 | 2 | ||
GASKET,JOINT | 11060A | 11060-1681 | 1 | ||
COVER-MUFFLER,RR | 49106 | 49106-1179 | 1 | ||
COVER-MUFFLER,FR | 49106A | 49106-1182 | 1 | ||
COVER-EXHAUST PIPE,FR | 49107 | 49107-1113 | 1 | ||
COVER-EXHAUST PIPE,RR | 49107A | 49107-1114 | 1 | ||
NUT,CAP,8MM | 92015 | 92015-1370 | 1 | ||
CLAMP,EXHAUST PIPE COVER | 92037 | 92037-1613 | 4 | ||
GROMMET | 92071 | 92071-1226 | 4 | ||
DAMPER | 92075 | 92075-1898 | 3 | ||
COLLAR | 92143 | 92143-1753 | 3 | ||
BOLT,SOCKET,8X25 | 92150 | 92150-1912 | 2 | ||
CLAMP | 92170 | 92170-1538 | 1 | ||
NUT | 92210 | 92210-1273 | 4 | ||
MUFFLER,FR | 18001 | 18001-1932 | 1 | CNUS | |
MUFFLER,RR | 18001A | 18001-1933 | 1 | CNUS | |
MUFFLER,FR | 18087 | 18087-0014 | 1 | CA | |
MUFFLER,RR | 18087A | 18087-0015 | 1 | CA |
