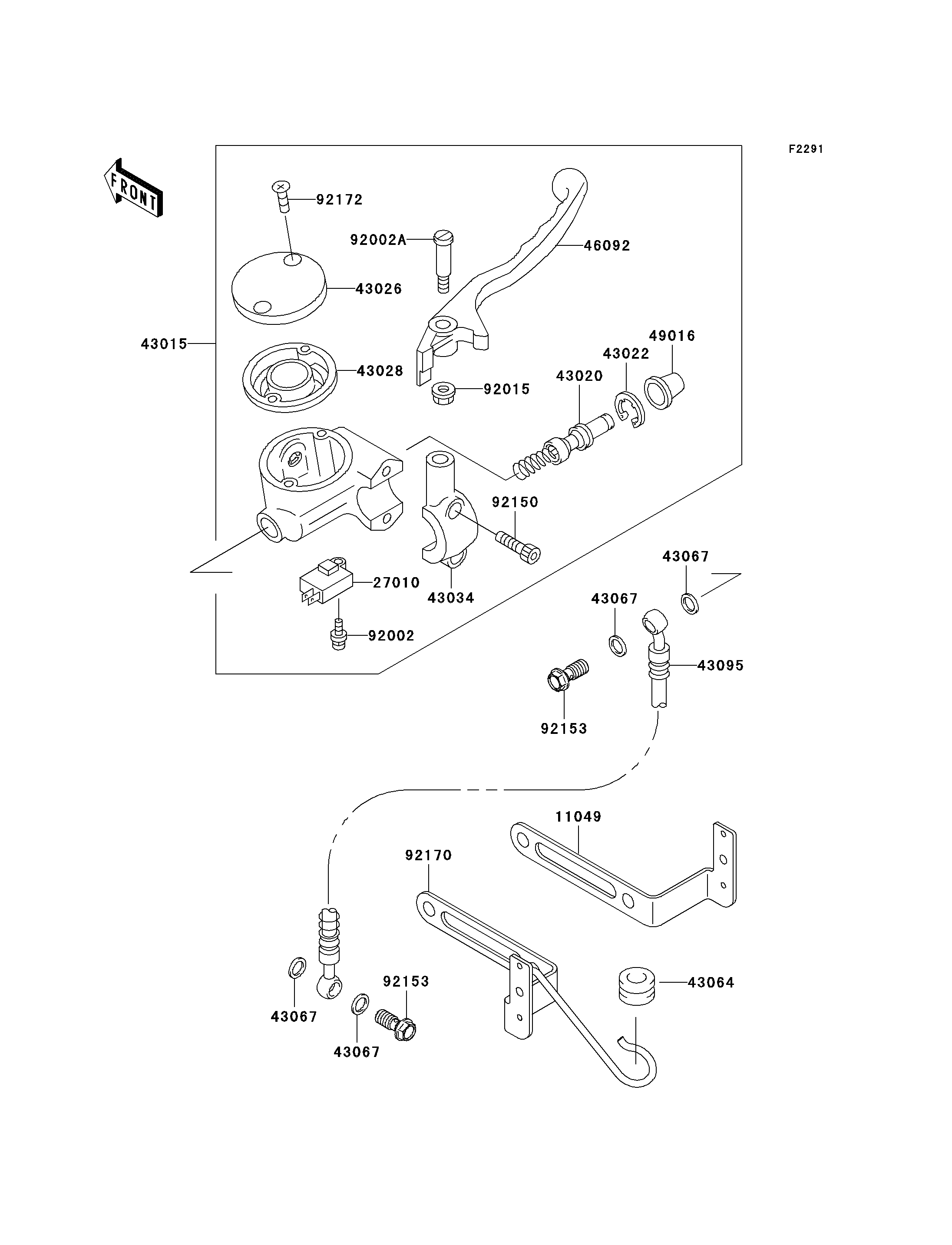

2005 Vulcan 800 Classic - Front Master Cylinder
11049
27010
43015
43020
43022
43026
43028
43034
43064
43067
43067
43067
43067
43095
46092
49016
92002
92002A
92015
92150
92153
92153
92170
92172
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET | 11049 | 11049-1820 | 1 | ||
SWITCH,BRAKE | 27010 | 27010-1170 | 1 | ||
CYLINDER-ASSY-MASTER,FR | 43015 | 43015-0010 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1098 | 1 | ||
STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
CAP-BRAKE,SILVER | 43026 | 43026-1078 | 1 | ||
DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1071 | 1 | ||
HOLDER-BRAKE,SILVER | 43034 | 43034-1102 | 1 | ||
GROMMET,HOSE CLAMP | 43064 | 43064-006 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 4 | ||
HOSE-BRAKE,FR | 43095 | 43095-1286 | 1 | ||
LEVER-GRIP,FRONT BRAKE | 46092 | 46092-1172 | 1 | ||
COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
BOLT,SCREW,4X12 | 92002 | 92002-1323 | 1 | ||
BOLT,LEVER SET | 92002A | 92002-1561 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1528 | 1 | ||
BOLT,SOCKET,6MM | 92150 | 92150-1025 | 2 | ||
BOLT,OIL,L=23 | 92153 | 92153-0627 | 2 | ||
CLAMP,HOSE | 92170 | 92170-1651 | 1 | ||
SCREW,5MM | 92172 | 92172-0089 | 2 |
