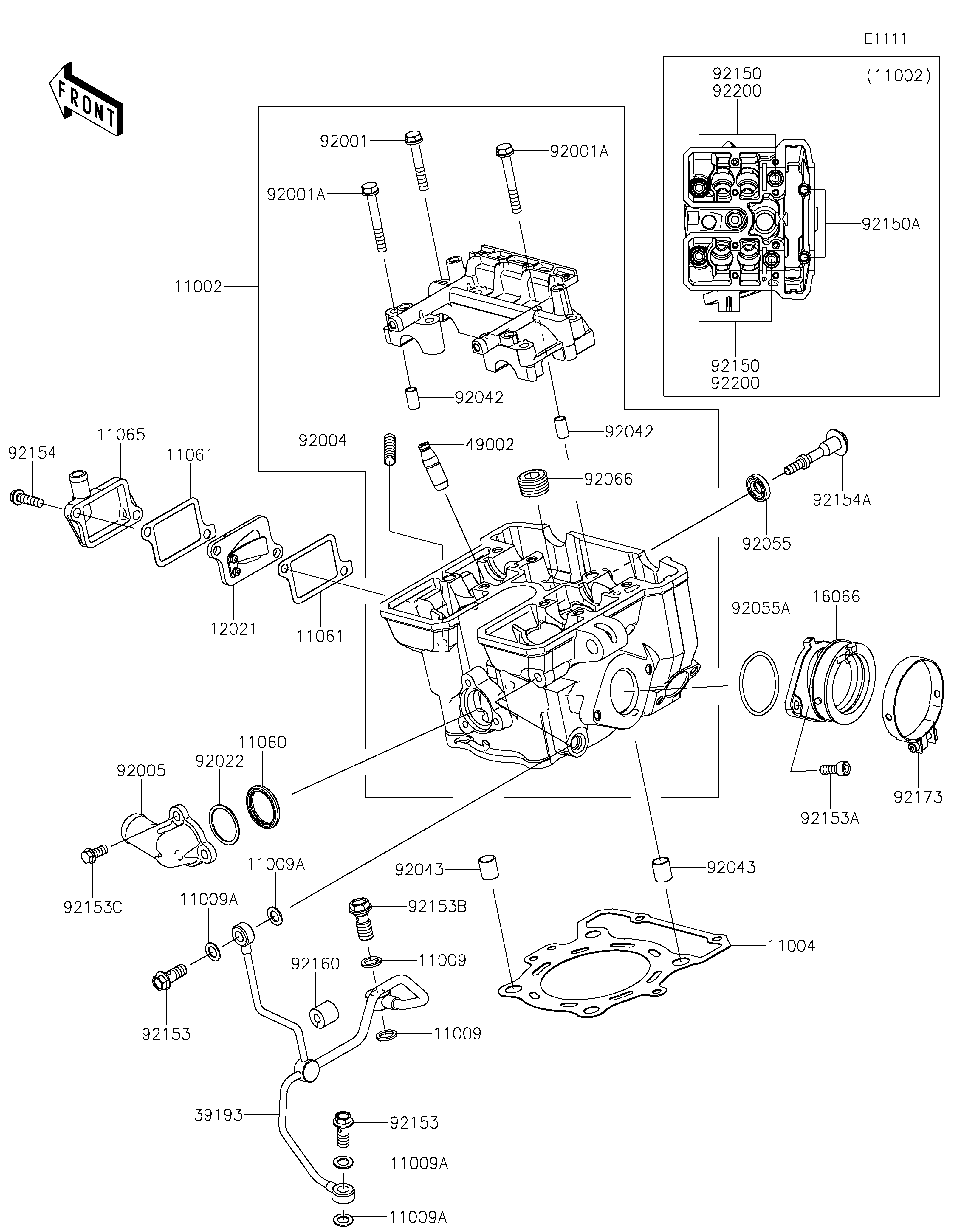

2021 KLX®300R - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11002
11004
11009
11009
11009A
11009A
11009A
11009A
11060
11061
11061
11065
12021
16066
39193
49002
92001
92001A
92001A
92004
92005
92022
92042
92042
92043
92043
92055
92055A
92066
92150
92150
92150A
92153
92153
92153A
92153B
92153C
92154
92154A
92160
92173
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-ASSY-CYLINDER 11002 11002-0177 1
GASKET-HEAD 11004 11004-0091 1
GASKET,10X14.5X1.5 11009 11009-1105 2
GASKET,8.2X14X1.0 11009A 11009-1344 4
GASKET,THERMOSTAT 11060 11060-1300 1
GASKET,REED VALVE 11061 11061-0890 2
CAP 11065 11065-1308 1
VALVE-ASSY-REED 12021 12021-0049 1
HOLDER-THROTTLE BODY 16066 16066-0017 1
PIPE-OIL 39193 39193-0045 1
GUIDE-VALVE 49002 49002-1126 4
BOLT,FLANGED,6X38 92001 92001-1105 6
BOLT,6X46 92001A 92001-1872 2
STUD,8X25 92004 92004-0731 2
FITTING 92005 92005-0937 1
WASHER,25.3X30X1 92022 92022-161 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,10.1X12X14 92043 92043-4009 2
RING-O,HEAD COVER BOLT 92055 92055-0195 1
RING-O 92055A 92055-1255 1
PLUG,PT1/2X12.5 92066 92066-0002 1
BOLT,10X165 92150 92150-1368 4
BOLT,6X135 92150A 92150-1552 2
BOLT,BANJO,8X20 92153 92153-0651 2
BOLT,SOCKET,6X16 92153A 92153-1344 2
BOLT,BANJO,10X23 92153B 92153-1345 1
BOLT 92153C 92153-1805 3
BOLT,FLANGED,6X22 92154 92154-0504 2
BOLT 92154A 92154-1230 1
DAMPER,6.3X15X14 92160 92160-1523 1
CLAMP,58MM 92173 92173-0927 1
WASHER,10.5X19X2.3 92200 92200-1042 4
