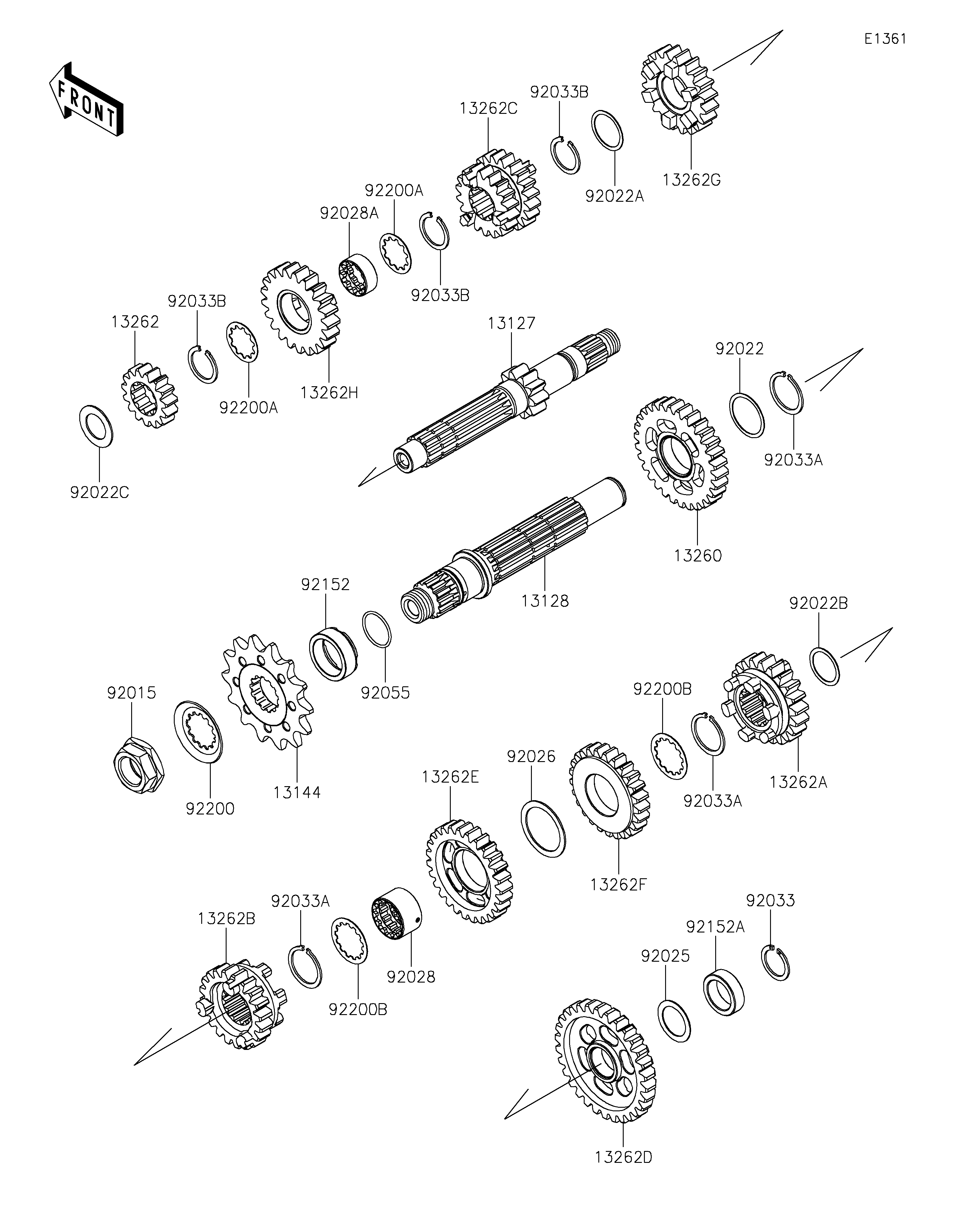

2021 KLX®300R - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13127
13128
13144
13260
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
13262H
92015
92022
92022A
92022B
92022C
92025
92026
92028
92028A
92033
92033A
92033A
92033A
92033B
92033B
92033B
92055
92152
92152A
92200
92200A
92200A
92200B
92200B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT,10T 13127 13127-0670 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0695 1
SPROCKET-OUTPUT,14T 13144 13144-0055 1
GEAR,OUTPUT 2ND,30T 13260 13260-1386 1
GEAR,INPUT 2ND,15T 13262 13262-0480 1
GEAR,OUTPUT 5TH,21T 13262A 13262-0483 1
GEAR,OUTPUT TOP,20T 13262B 13262-0484 1
GEAR,INPUT 3RD&4TH,18T&20T 13262C 13262-0549 1
GEAR,OUTPUT LOW,30T 13262D 13262-0597 1
GEAR,OUTPUT 3RD,27T 13262E 13262-0598 1
GEAR,OUTPUT 4TH,25T 13262F 13262-0599 1
GEAR,INPUT 5TH,20T 13262G 13262-0600 1
GEAR,INPUT TOP,21T 13262H 13262-1380 1
NUT,20MM 92015 92015-1963 1
WASHER,25.3X30X0.5 92022 92022-159 1
WASHER,22.3X27X0.5 92022A 92022-198 1
WASHER,20.5X25.5X0.5 92022B 92022-252 1
WASHER,17.3X28X1 92022C 92022-255 1
SHIM,T=0.7 92025 92025-1451 1
SPACER,30X38X1.0 92026 92026-079 1
BUSHING,OUTPUT 3RD&4TH GEAR 92028 92028-1822 1
BUSHING,INPUT TOP GEAR 92028A 92028-1823 1
RING-SNAP,18MM 92033 92033-029 1
RING-SNAP,25MM 92033A 92033-1172 3
RING-SNAP 92033B 92033-1293 3
RING-O,21.5X1.5 92055 92055-0196 1
COLLAR 92152 92152-1350 1
COLLAR,20X28X8.5 92152A 92152-1357 1
WASHER 92200 92200-0851 1
WASHER,INPUT 92200A 92200-1370 2
WASHER,OUTPUT 92200B 92200-1371 2
