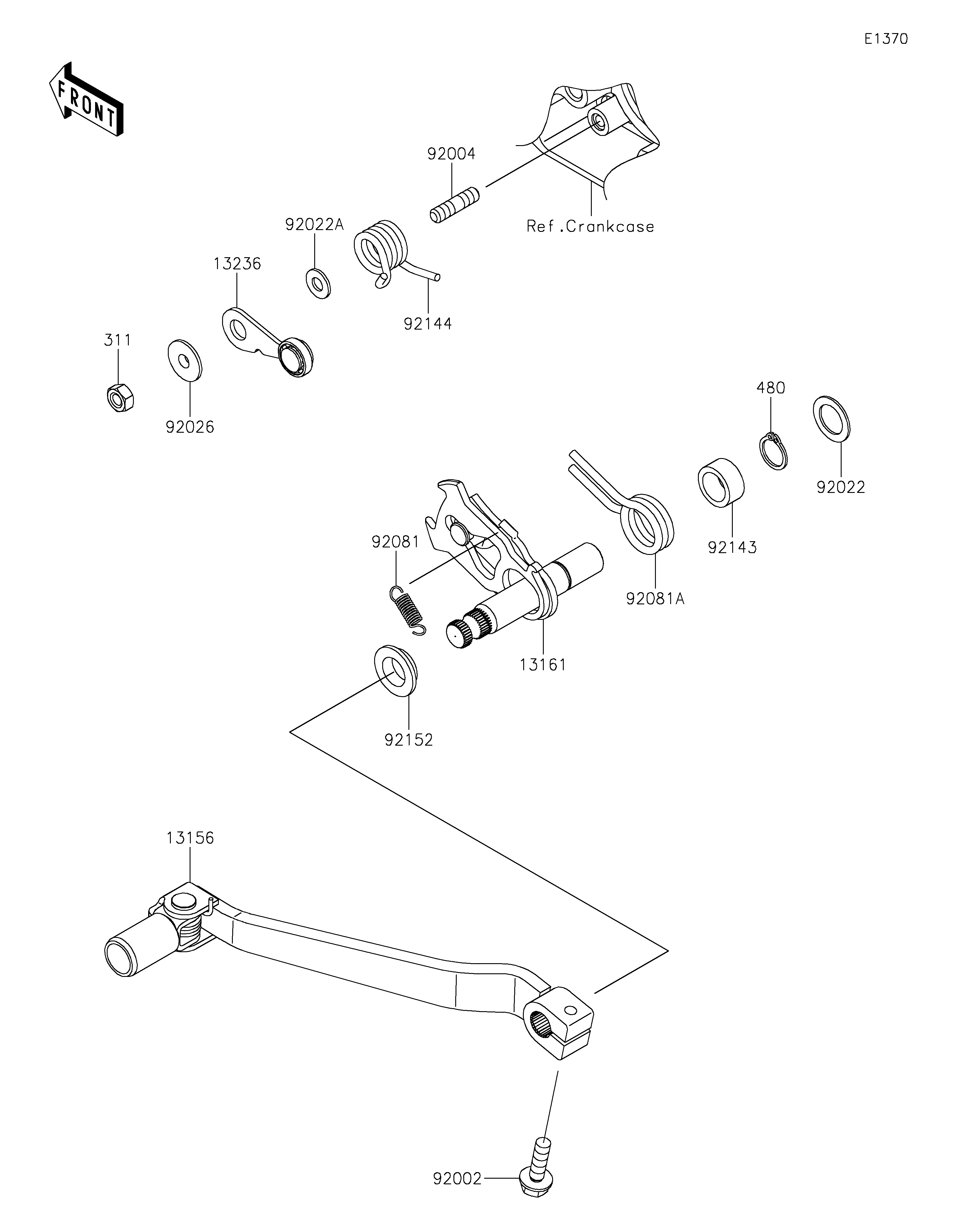

13156
13161
13236
92002
92004
92022
92022A
92026
92081
92081A
92143
92144
92152
311
480
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-CHANGE,PEDAL 13156 13156-1480 1
LEVER-COMP-CHANGE SHAFT 13161 13161-1214 1
LEVER-COMP,POSITION 13236 13236-0170 1
BOLT,6X20 92002 92002-1237 1
STUD,6X12 92004 92004-0032 1
WASHER,13.3X20X1 92022 92022-1496 1
WASHER,6X12.8X1.2 92022A 92022-1827 1
SPACER 92026 92026-1217 1
SPRING,CHANGE LEVER 92081 92081-076 1
SPRING,TENSION 92081A 92081-1129 1
COLLAR 92143 92143-1148 1
SPRING 92144 92144-1695 1
COLLAR 92152 92152-1075 1
NUT-HEX,6MM 311 311BA0600 1
CIRCLIP-TYPE-C,13MM 480 480J1300 1
