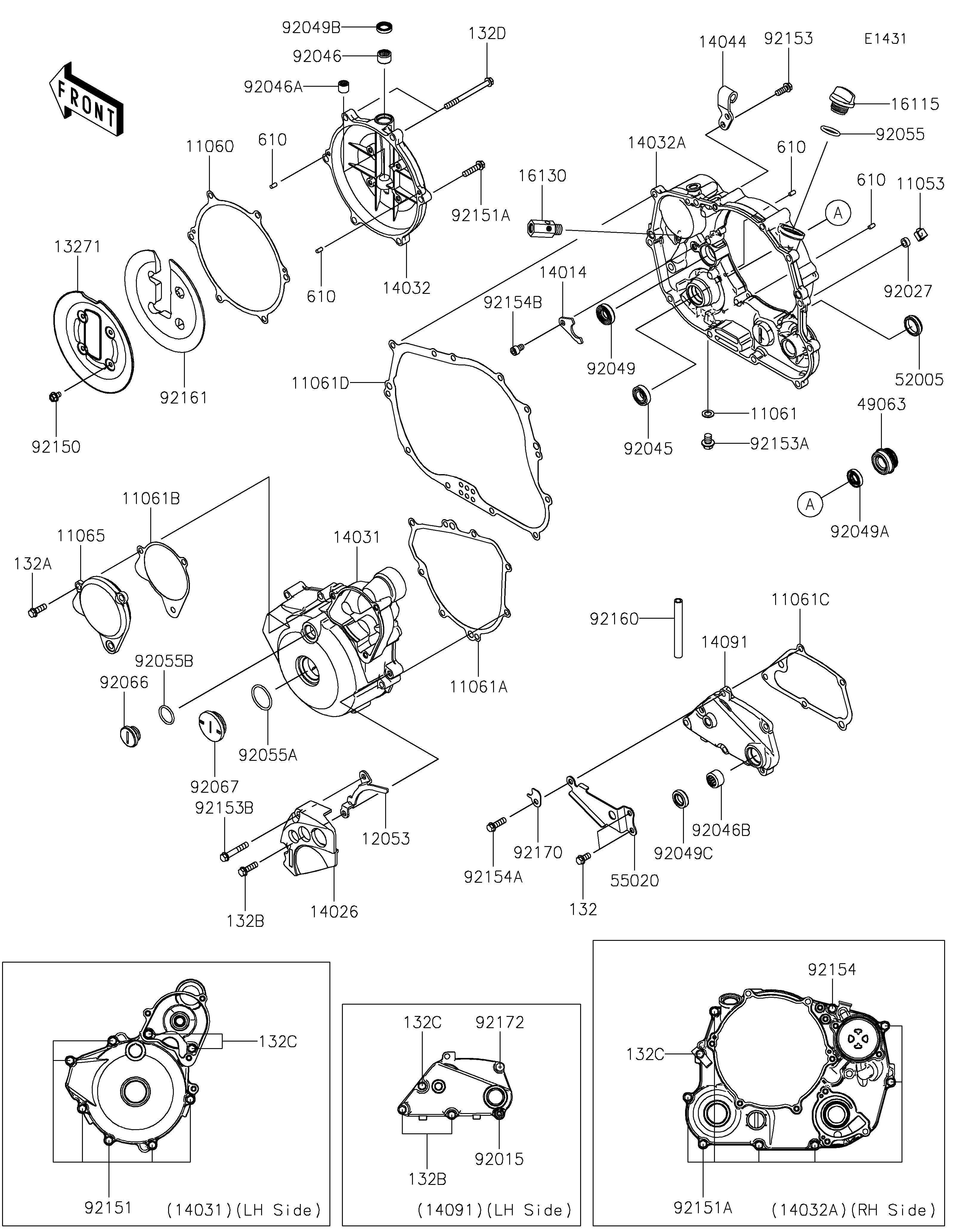

2021 KLX®300R - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11060
11060
11061
11061
11061A
11061A
11061B
11061B
11061C
11061C
11061D
11061D
11065
11065
12053
12053
13271
13271
14014
14014
14026
14026
14031
14031
14032
14032
14032A
14032A
14044
14044
14091
14091
16115
16115
16130
16130
49063
49063
52005
52005
55020
55020
92015
92015
92027
92027
92045
92045
92046
92046
92046A
92046A
92046B
92046B
92049
92049
92049A
92049A
92049B
92049B
92049C
92049C
92055
92055
92055A
92055A
92055B
92055B
92066
92066
92067
92067
92150
92150
92151
92151
92151A
92151A
92151A
92151A
92153
92153
92153A
92153A
92153B
92153B
92154
92154
92154A
92154A
92154B
92154B
92160
92160
92161
92161
92170
92170
92172
92172
132
132
132A
132A
132B
132B
132B
132B
132C
132C
132C
132C
132C
132C
132D
132D
610
610
610
610
610
610
610
610
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-1656 1
GASKET,CLUTCH COVER OUTER 11060 11060-1325 1
GASKET,8.2X14X1.0 11061 11061-0418 1
GASKET,GENERATOR COVER 11061A 11061-0891 1
GASKET,CAP 11061B 11061-0892 1
GASKET,TRANSMISSION COVER 11061C 11061-0897 1
GASKET,CLUTCH COVER INNER 11061D 11061-0923 1
CAP,GENERATOR COVER 11065 11065-0274 1
GUIDE-CHAIN 12053 12053-1337 1
PLATE 13271 13271-1567 1
PLATE-POSITION 14014 14014-0567 1
COVER-CHAIN 14026 14026-0027 1
COVER-GENERATOR 14031 14031-0110 1
COVER-CLUTCH,OUTER 14032 14032-0004 1
COVER-CLUTCH 14032A 14032-0658 1
HOLDER-CABLE 14044 14044-1078 1
COVER 14091 14091-0019 1
CAP-OIL FILLER 16115 16115-1053 1
VALVE-ASSY-RELIEF 16130 16130-0002 1
SEAL-MECHANICAL,WATER 49063 49063-1055 1
GAUGE,OIL LEVEL 52005 52005-1009 1
GUARD,TRANSMISSION COVER 55020 55020-1460 1
NUT,FLANGED,6MM 92015 92015-1367 1
COLLAR,6.5X10.5X4.5 92027 92027-1885 1
BEARING-BALL,6901 92045 92045-1246 1
BEARING-NEEDLE,HK1210FM 92046 92046-0034 1
BEARING-NEEDLE 92046A 92046-0042 1
BEARING-NEEDLE,HK1312 92046B 92046-1148 1
SEAL-OIL 92049 92049-1191 1
SEAL-OIL,SC 12X22X5 92049A 92049-1228 1
SEAL-OIL,AG0353-F0 92049B 92049-1262 1
SEAL-OIL 92049C 92049-1559 1
RING-O 92055 92055-012 1
RING-O,27.7X2.4 92055A 92055-091 1
RING-O,20X2 92055B 92055-1146 1
PLUG,COVER 92066 92066-0011 1
PLUG,30X8 92067 92067-024 1
BOLT,5X8 92150 92150-1406 4
BOLT,6X40 92151 92151-1131 6
BOLT,FLANGED-SMALL,6X25 92151A 92151-1930 11
BOLT,6X16 92153 92153-0695 2
BOLT,FLANGED,8X10 92153A 92153-1342 1
BOLT,FLANGED,6X35 92153B 92153-1351 1
BOLT,FLANGED,6X25 92154 92154-0490 1
BOLT,FLANGED,6X20 92154A 92154-3945 1
BOLT,SOCKET,6X10 92154B 92154-4072 1
DAMPER 92160 92160-1866 1
DAMPER 92161 92161-1182 1
CLAMP 92170 92170-1785 1
SCREW,6X16 92172 92172-0223 1
BOLT-FLANGED-SMALL,6X12 132 132BC0612 2
BOLT-FLANGED-SMALL,6X18 132A 132BC0618 3
BOLT-FLANGED-SMALL,6X20 132B 132BC0620 3
BOLT-FLANGED-SMALL,6X30 132C 132BC0630 4
BOLT-FLANGED-SMALL,6X70 132D 132BC0670 2
ROLLER,4X8 610 610A0408 4
