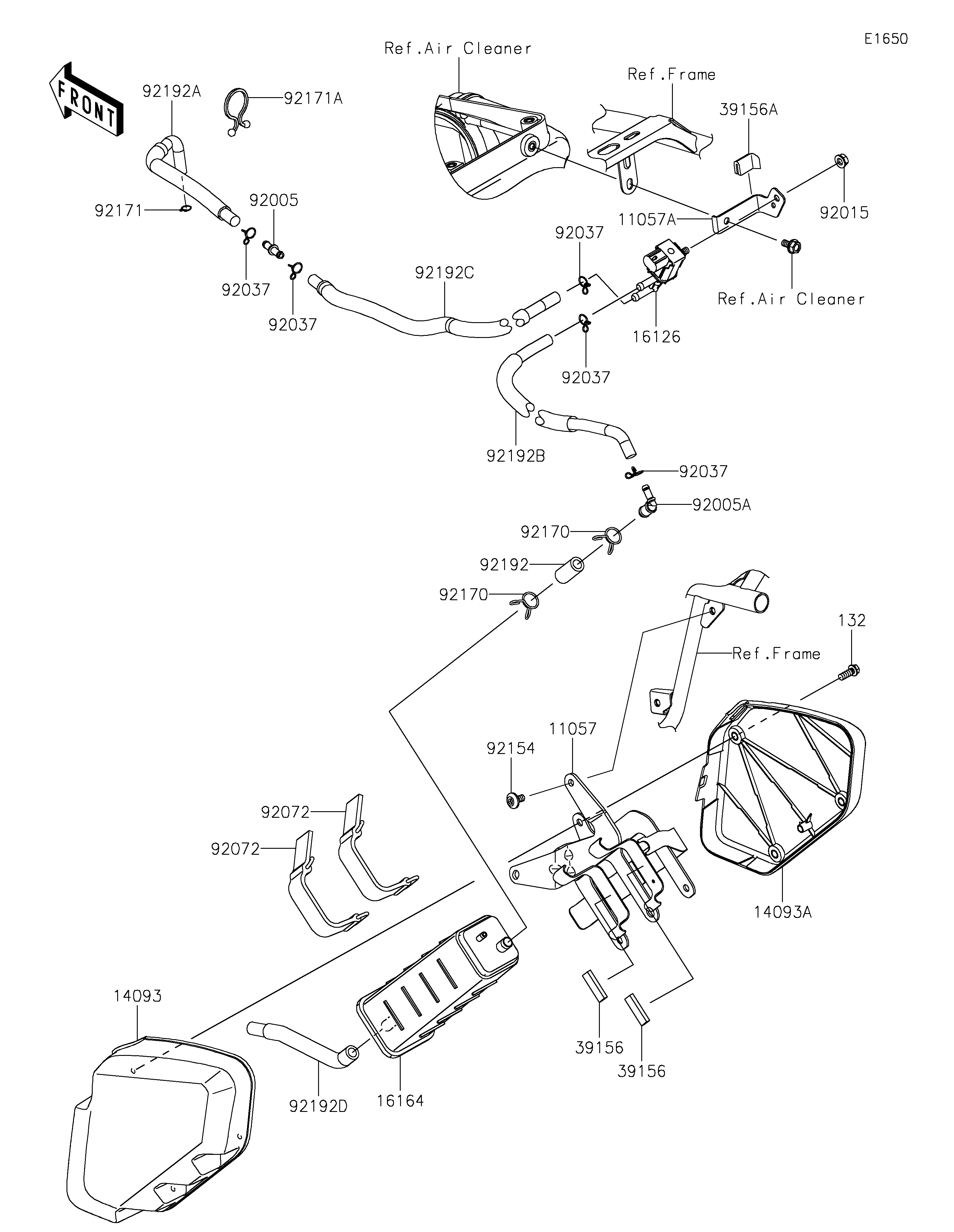

2021 KLX®300R - Fuel Evaporative System(CA)
11057
11057
11057A
11057A
14093
14093
14093A
14093A
16126
16126
16164
16164
39156
39156
39156
39156
39156A
39156A
92005
92005
92005A
92005A
92015
92015
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92072
92072
92072
92072
92154
92154
92170
92170
92170
92170
92171
92171
92171A
92171A
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
92192D
92192D
132
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CANISTER | 11057 | 11057-2339 | 1 | CA | |
| BRACKET | 11057A | 11057-2545 | 1 | CA | |
| COVER,CANISTER,OUT | 14093 | 14093-0878 | 1 | CA | |
| COVER,CANISTER,IN | 14093A | 14093-0879 | 1 | CA | |
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-0009 | 1 | CA | |
| PAD,10X30X4 | 39156 | 39156-0927 | 2 | CA | |
| PAD,21X33X3 | 39156A | 39156-1851 | 1 | CA | |
| FITTING | 92005 | 92005-0721 | 1 | CA | |
| FITTING | 92005A | 92005-0753 | 1 | CA | |
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | CA | |
| CLAMP | 92037 | 92037-1712 | 5 | CA | |
| BAND,L=90 | 92072 | 92072-0135 | 2 | CA | |
| BOLT,SOCKET,6X12 | 92154 | 92154-1788 | 2 | CA | |
| CLAMP | 92170 | 92170-1695 | 2 | CA | |
| CLAMP | 92171 | 92171-0573 | 1 | CA | |
| CLAMP | 92171A | 92171-1185 | 1 | CA | |
| TUBE,9X14.4X30 | 92192 | 92192-1757 | 1 | CA | |
| TUBE,FITTING-THB | 92192A | 92192-1970 | 1 | CA | |
| TUBE,FITTING-VALVE | 92192B | 92192-1986 | 1 | CA | |
| TUBE,VALVE-FITTING | 92192C | 92192-2240 | 1 | CA | |
| TUBE,CANISTER | 92192D | 92192-2263 | 1 | CA | |
| BOLT-FLANGED-SMALL,6X16 | 132 | 132BC0616 | 3 | CA |
