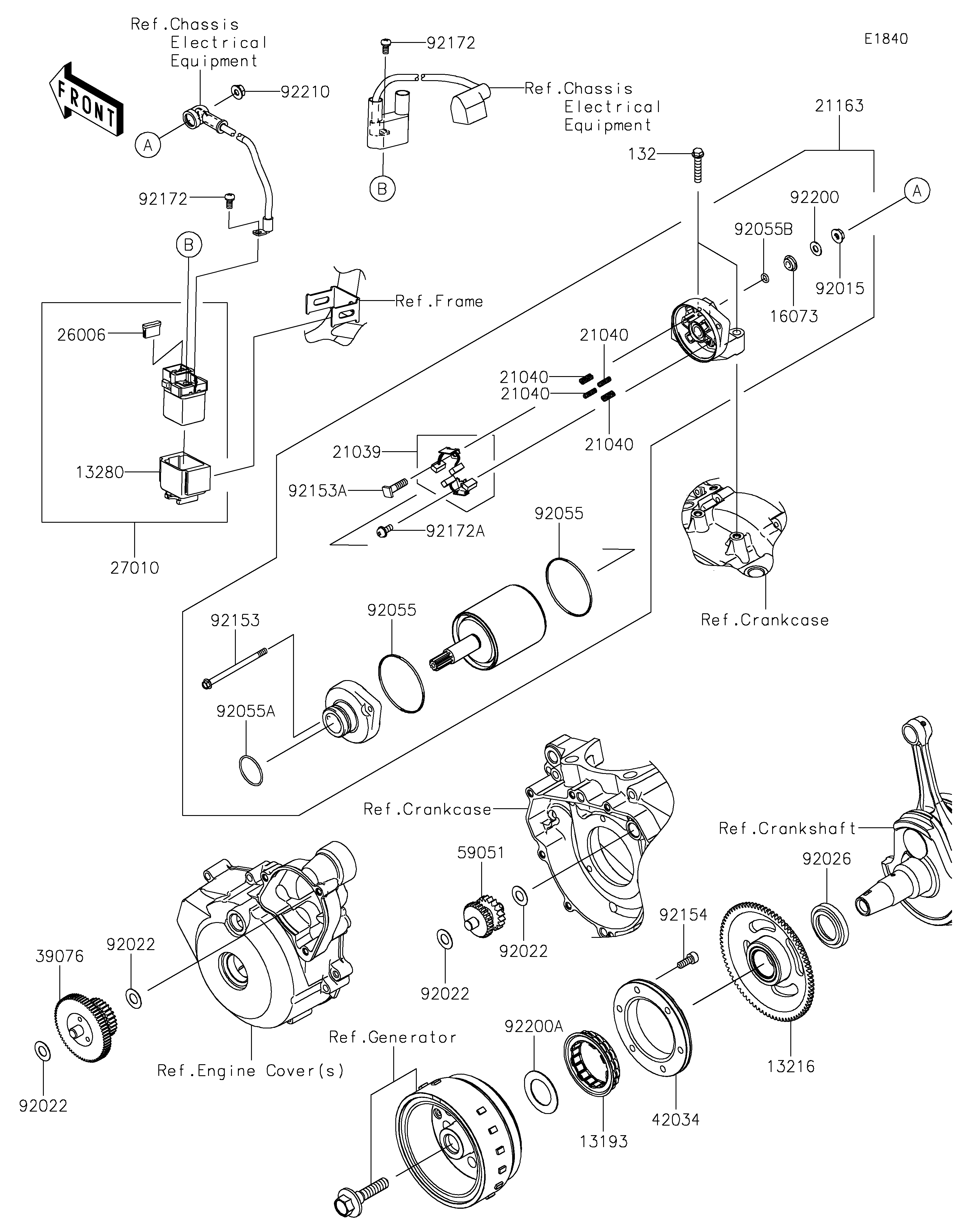

2021 KLX®300R - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
13193
13216
13280
16073
21039
21040
21040
21040
21040
21163
26006
27010
39076
42034
59051
92015
92022
92022
92022
92022
92026
92055
92055
92055A
92055B
92153
92153A
92154
92172
92172
92172A
92200
92200A
92210
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLUTCH-ASSY-ONEWAY 13193 13193-0007 1
GEAR-COMP,ONEWAY CLUTCH 13216 13216-1148 1
HOLDER 13280 13280-0818 1
INSULATOR 16073 16073-0053 1
BRUSH,CARBON 21039 21039-0004 1
SPRING-BRUSH 21040 21040-0003 4
STARTER-ELECTRIC 21163 21163-0046 1
FUSE,BLADE,20A,YELLOW 26006 26006-1051 1
SWITCH 27010 27010-0765 1
LIMITER,STARTER IDLE GEAR 39076 39076-0020 1
COUPLING 42034 42034-0048 1
GEAR-SPUR,IDLE 59051 59051-0785 1
NUT,STARTER MOTOR 92015 92015-1476 1
WASHER,10.2X20X0.5 92022 92022-1649 4
SPACER 92026 92026-0762 1
RING-O 92055 92055-0136 2
RING-O 92055A 92055-1276 1
RING-O,4.5X2.0 92055B 92055-1370 1
BOLT 92153 92153-1850 2
BOLT 92153A 92153-1866 1
BOLT,SOCKET,6X16 92154 92154-0235 6
SCREW-PAN-WS-CROS,5X10 92172 92172-0234 2
SCREW 92172A 92172-0334 1
WASHER 92200 92200-0386 1
WASHER,27.2X44X1 92200A 92200-0908 1
NUT,6MM 92210 92210-0188 1
BOLT-FLANGED-SMALL,6X30 132 132BC0630 2
