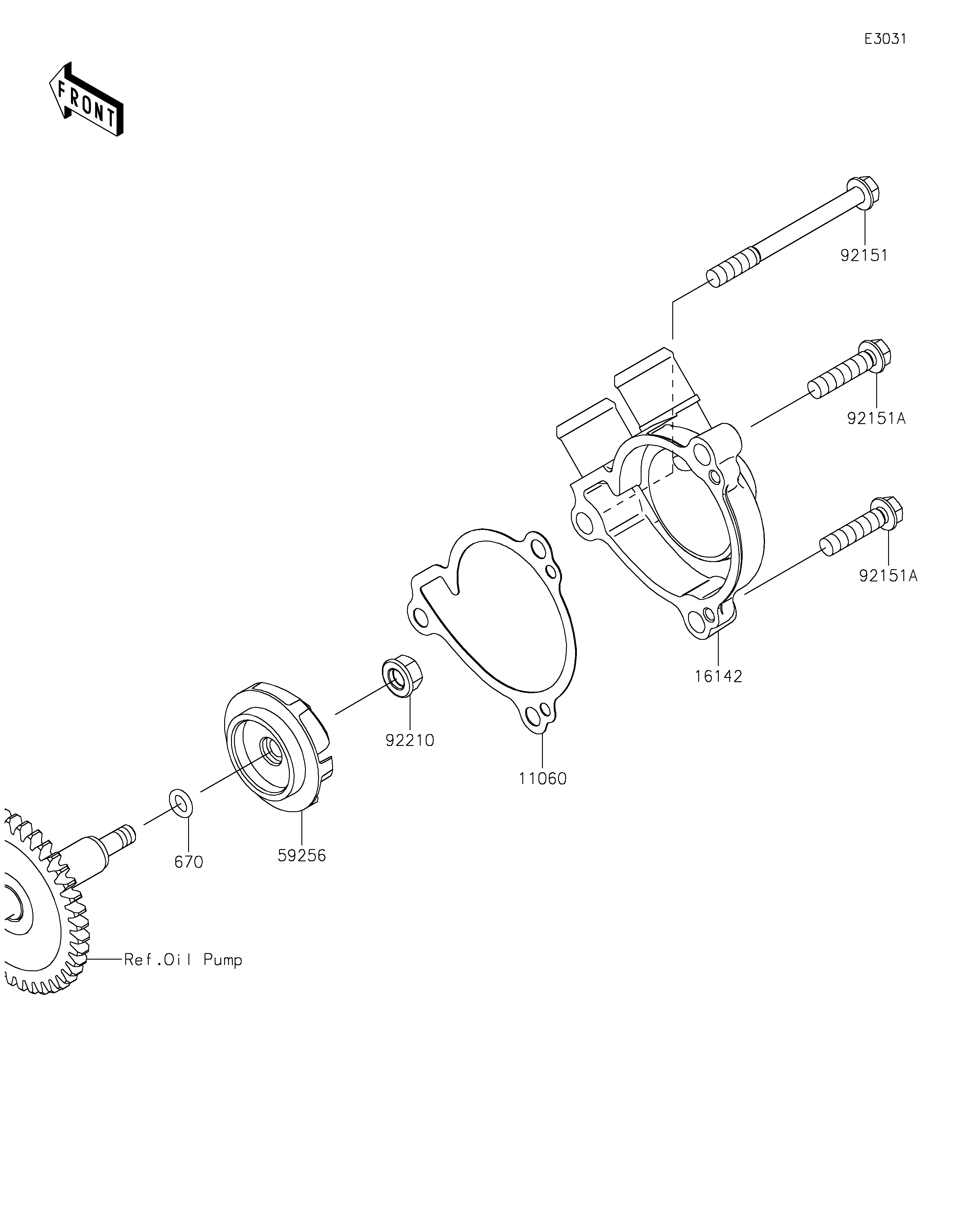

11060
16142
59256
92151
92151A
92151A
92210
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,PUMP COVER 11060 11060-1328 1
COVER-PUMP 16142 16142-0758 1
IMPELLER 59256 59256-1063 1
BOLT,6X65 92151 92151-1199 1
BOLT,FLANGED-SMALL,6X25 92151A 92151-1930 2
NUT,FLANGED,6MM 92210 92210-0630 1
O RING,6MM 670 670B1506 1
