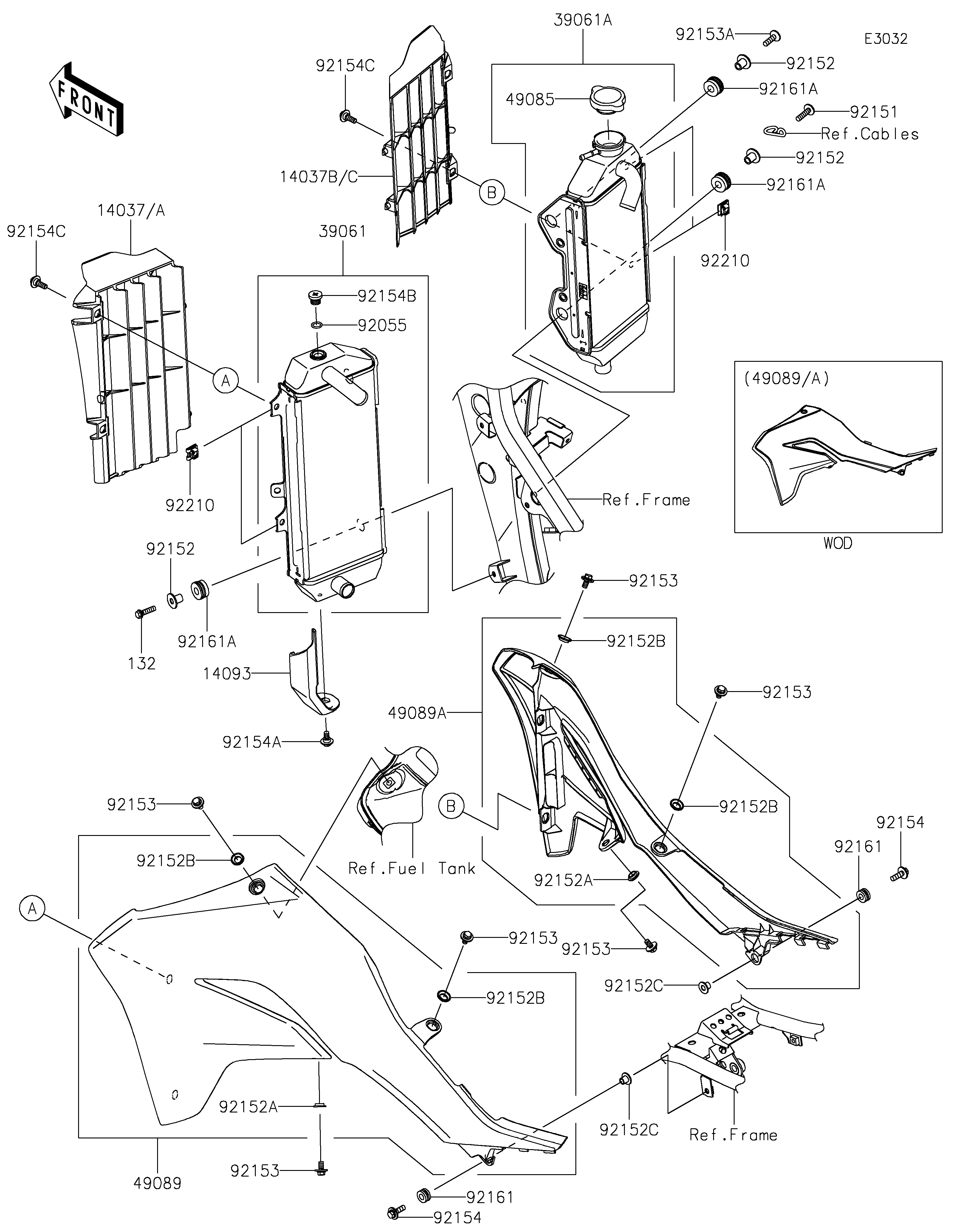

2021 KLX®300R - Radiator

DOWNLOAD PDF
SELECT A NEW PART
14037
14037B
14093
39061
39061A
49085
49089
49089A
92055
92151
92152
92152
92152
92152A
92152A
92152B
92152B
92152B
92152B
92152C
92152C
92153
92153
92153
92153
92153
92153
92153A
92154
92154
92154A
92154B
92154C
92154C
92161
92161
92161A
92161A
92161A
92210
92210
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREEN,LH,EBONY 14037 14037-0775-6C 1
SCREEN,RH,EBONY 14037B 14037-0776-6C 1
COVER,RADIATOR 14093 14093-0903 1
RADIATOR-ASSY,LH 39061 39061-0779 1
RADIATOR-ASSY,RH 39061A 39061-0780 1
CAP-ASSY-PRESSURE 49085 49085-0006 1
SHROUD-ENGINE,LH,L.GREEN 49089 49089-0979-290 1
SHROUD-ENGINE,RH,L.GREEN 49089A 49089-0980-290 1
RING-O 92055 92055-0866 1
BOLT,SOCKET,6X25 92151 92151-1611 1
COLLAR 92152 92152-0666 4
COLLAR,8.8X11.2X4 92152A 92152-0909 2
COLLAR 92152B 92152-1235 4
COLLAR,6.3X8.3X9.2 92152C 92152-1671 2
BOLT,6X12 92153 92153-0503 6
BOLT,SOCKET,6X22 92153A 92153-0574 1
BOLT,FLANGED,6X20 92154 92154-0392 2
BOLT,FLANGED,6X9 92154A 92154-0546 1
BOLT,AIR VENT 92154B 92154-1738 1
BOLT,FLANGED,6X28 92154C 92154-1739 4
DAMPER,8X16X8.6 92161 92161-0685 2
DAMPER 92161A 92161-1950 4
NUT,CLIP,6MM 92210 92210-0867 4
BOLT-FLANGED-SMALL,6X22 132 132BA0622 2
