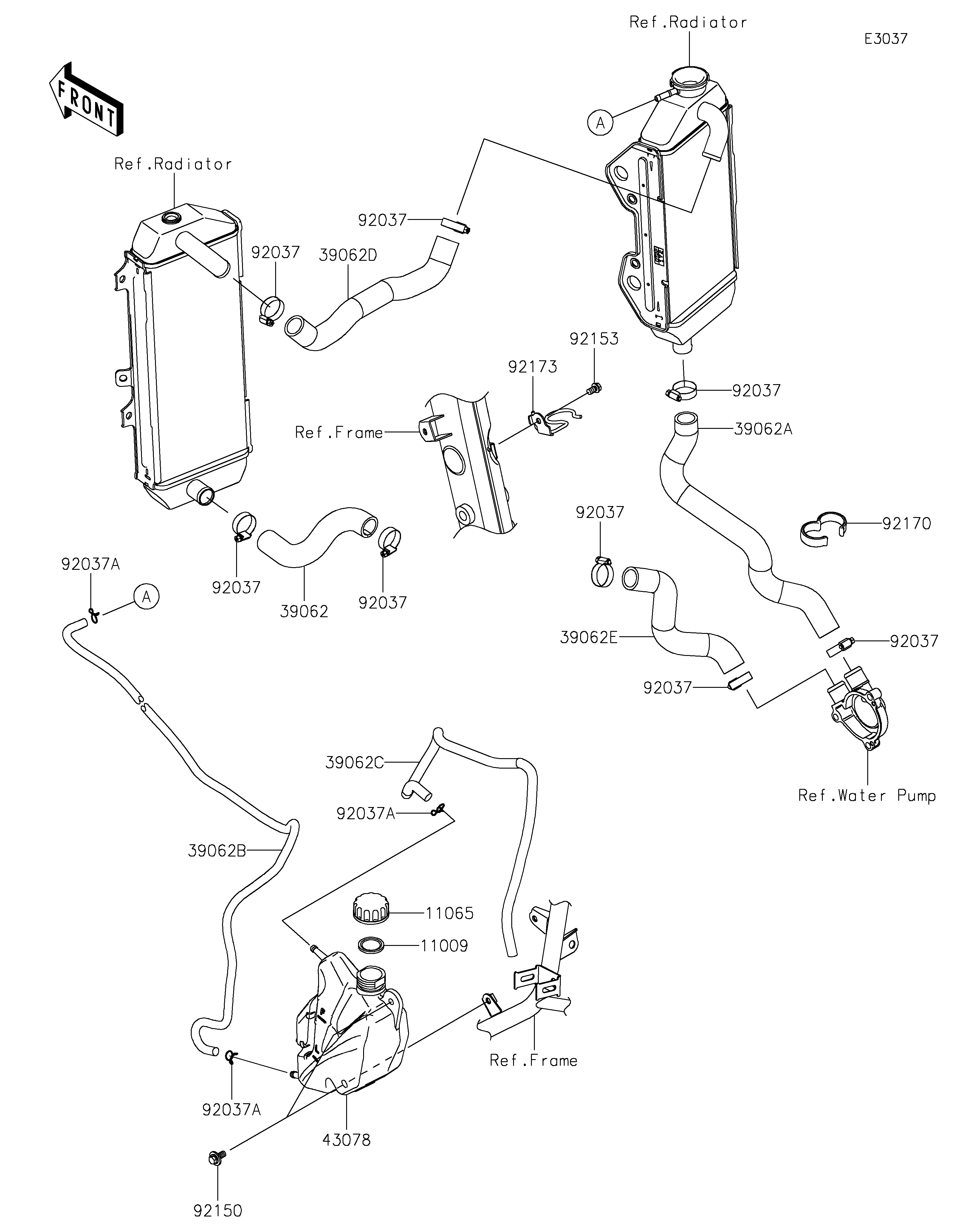

Parts Diagrams |
11009
11065
39062
39062A
39062B
39062C
39062D
39062E
43078
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92150
92153
92170
92173
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11065 | 11065-0969 | 1 | ||
| HOSE-COOLING,HEAD-RAD.LH | 39062 | 39062-0843 | 1 | ||
| HOSE-COOLING,RAD.RH-PUMP | 39062A | 39062-0845 | 1 | ||
| HOSE-COOLING,RESERVOIR | 39062B | 39062-0846 | 1 | ||
| HOSE-COOLING,RESERVOIR | 39062C | 39062-0858 | 1 | ||
| HOSE-COOLING,RAD.LH-RAD.RH | 39062D | 39062-0910 | 1 | ||
| HOSE-COOLING,PUMP-CYLINDER | 39062E | 39062-1563 | 1 | ||
| RESERVOIR | 43078 | 43078-0603 | 1 | ||
| CLAMP,COOLING HOSE | 92037 | 92037-1589 | 8 | ||
| CLAMP | 92037A | 92037-1712 | 3 | ||
| BOLT,6X14 | 92150 | 92150-1340 | 2 | ||
| BOLT,FLANGED,6X10 | 92153 | 92153-1354 | 1 | ||
| CLAMP | 92170 | 92170-1419 | 1 | ||
| CLAMP | 92173 | 92173-2250 | 1 |
| GASKET,RESERVOIR TANK CAP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,HEAD-RAD.LH | |
| REF # | 39062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RAD.RH-PUMP | |
| REF # | 39062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RESERVOIR | |
| REF # | 39062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RESERVOIR | |
| REF # | 39062C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RAD.LH-RAD.RH | |
| REF # | 39062D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,PUMP-CYLINDER | |
| REF # | 39062E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RESERVOIR | |
| REF # | 43078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,COOLING HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X10 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
