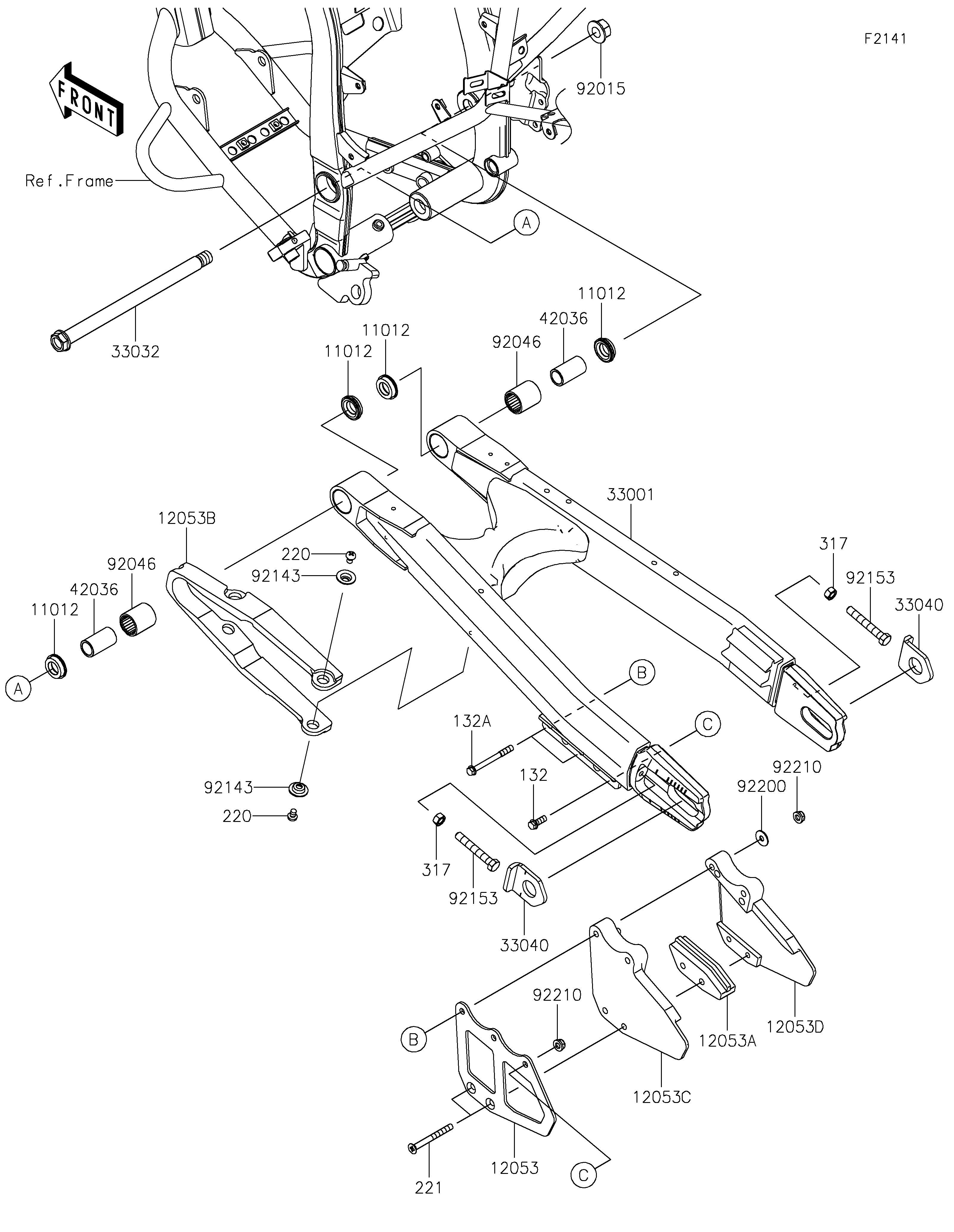

2021 KLX®300R - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
12053
12053A
12053B
12053C
12053D
33001
33032
33040
33040
42036
42036
92015
92046
92046
92143
92143
92153
92153
92200
92210
92210
132
132A
220
220
221
317
317
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 11012 11012-1259 4
GUIDE-CHAIN,RR,OUTSIDE 12053 12053-1268 1
GUIDE-CHAIN,DRIVE,RR,INSIDE 12053A 12053-1270 1
GUIDE-CHAIN,DRIVE,FR 12053B 12053-1328 1
GUIDE-CHAIN,DRIVE,RR,OUTSIDE 12053C 12053-1453 1
GUIDE-CHAIN,DRIVE,RR,INSIDE 12053D 12053-1454 1
ARM-COMP-SWING,P.SILVER 33001 33001-0710-458 1
SHAFT-SWING ARM 33032 33032-0033 1
ADJUSTER-CHAIN 33040 33040-0023 2
SLEEVE,SWING ARM 42036 42036-1064 2
NUT,14MM 92015 92015-1407 1
BEARING-NEEDLE 92046 92046-0038 2
COLLAR 92143 92143-1156 4
BOLT,8X55 92153 92153-1407 2
WASHER,6.2X18X1.2 92200 92200-1889 2
NUT,LOCK,FLANGED,6MM 92210 92210-0303 3
BOLT-FLANGED-SMALL,6X16 132 132BA0616 1
BOLT-FLANGED-SMALL,6X60 132A 132BA0660 2
SCREW-PAN-CROS,6X8 220 220AA0608 4
SCREW-CSK-CROS,6X50 221 221AA0650 2
NUT-HEX-SMALL,8MM 317 317BA0800 2
