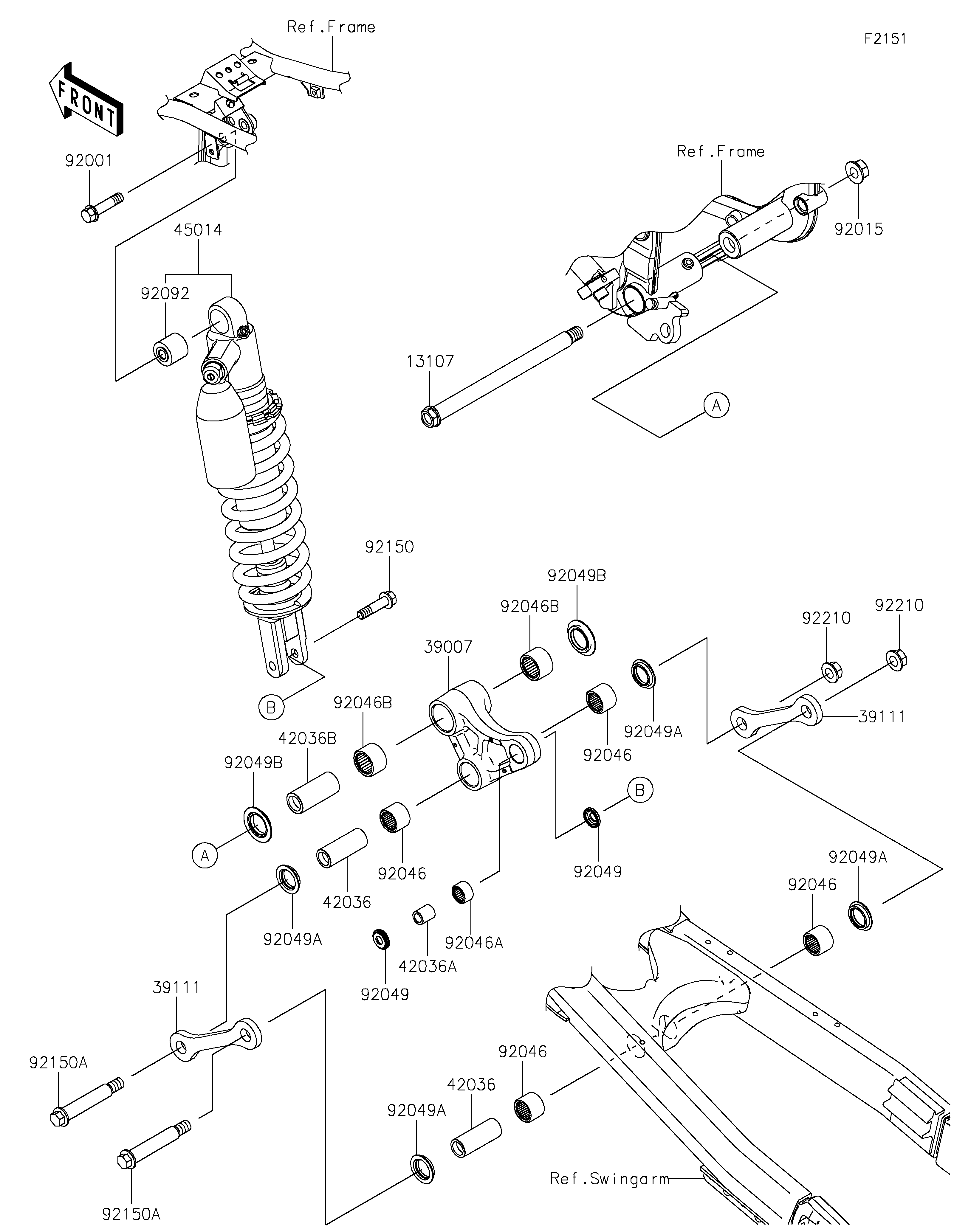

2021 KLX®300R - Suspension/Shock Absorber
13107
39007
39111
39111
42036
42036
42036A
42036B
45014
92001
92015
92046
92046
92046
92046
92046A
92046B
92046B
92049
92049
92049A
92049A
92049A
92049A
92049B
92049B
92092
92150
92150A
92150A
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,ARM,14MM | 13107 | 13107-0198 | 1 | ||
| ARM-SUSP | 39007 | 39007-0433 | 1 | ||
| ROD-TIE,SUSPENSION | 39111 | 39111-0053 | 2 | ||
| SLEEVE,15X22X57 | 42036 | 42036-1245 | 2 | ||
| SLEEVE,10X16X19 | 42036A | 42036-1248 | 1 | ||
| SLEEVE,17X25X57 | 42036B | 42036-1318 | 1 | ||
| SHOCKABSORBER | 45014 | 45014-0634 | 1 | ||
| BOLT,FLANGED,10X44 | 92001 | 92001-1499 | 1 | ||
| NUT,14MM | 92015 | 92015-1407 | 1 | ||
| BEARING-NEEDLE,F-2220 | 92046 | 92046-1162 | 4 | ||
| BEARING-NEEDLE,16BM2212 | 92046A | 92046-1192 | 1 | ||
| BEARING-NEEDLE,BM2520 | 92046B | 92046-1228 | 2 | ||
| SEAL-OIL | 92049 | 92049-0069 | 2 | ||
| SEAL-OIL,MHA22 28 5.7F | 92049A | 92049-1254 | 4 | ||
| SEAL-OIL,MF025N1 | 92049B | 92049-1426 | 2 | ||
| BUSHING-RUBBER,SHOCKABSORBER | 92092 | 92092-1062 | 1 | ||
| BOLT,FLANGED,10X40 | 92150 | 92150-1711 | 1 | ||
| BOLT,ROD,12X90 | 92150A | 92150-1812 | 2 | ||
| NUT,LOCK,FLANGED,12MM | 92210 | 92210-0348 | 2 |
