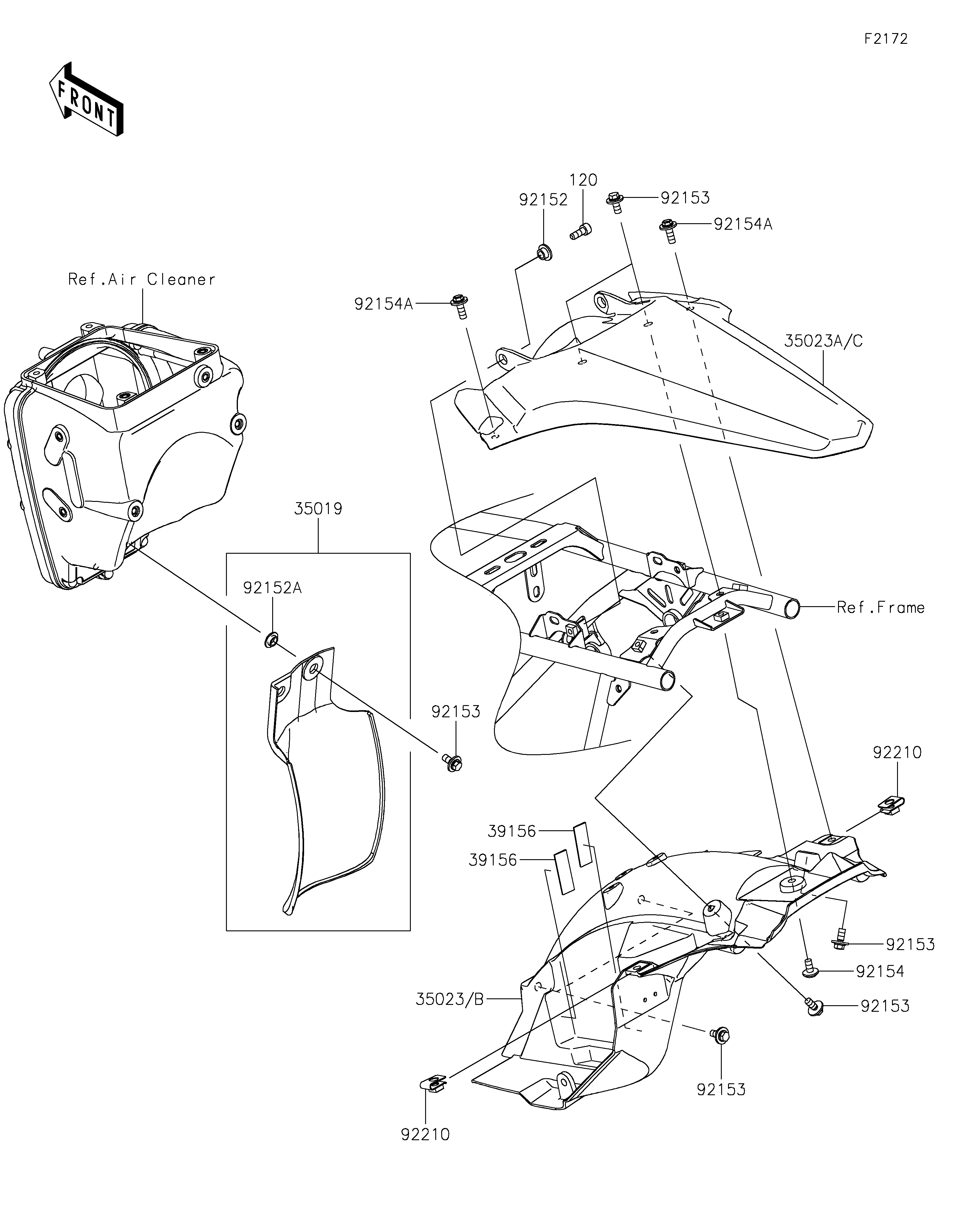

Parts Diagrams |
35019
35023
35023A
35023B
35023C
39156
39156
92152
92152A
92153
92153
92153
92153
92153
92154
92154A
92154A
92210
92210
120
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FLAP,RR FENDER,FR | 35019 | 35019-0004 | 1 | ||
| FENDER-REAR | 35023 | 35023-0456 | 1 | CN,US | |
| FENDER-REAR,L.GREEN | 35023A | 35023-0457-290 | 1 | CA,US | |
| FENDER-REAR | 35023B | 35023-0461 | 1 | CA | |
| FENDER-REAR,L.GREEN | 35023C | 35023-0470-290 | 1 | CN | |
| PAD,15X40X1 | 39156 | 39156-2548 | 2 | ||
| COLLAR,6.8X10(16)X6.6 | 92152 | 92152-0842 | 2 | ||
| COLLAR,8.8X11.2X4 | 92152A | 92152-0909 | 2 | ||
| BOLT,FLANGED,6X14 | 92153 | 92153-0936 | 8 | ||
| BOLT,SOCKET,6X12 | 92154 | 92154-2355 | 1 | ||
| BOLT,FLANGED,6X18 | 92154A | 92154-3994 | 2 | ||
| NUT | 92210 | 92210-0130 | 2 | ||
| BOLT-SOCKET,6X16 | 120 | 120CA0616 | 2 |
| FLAP,RR FENDER,FR | |
| REF # | 35019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR | |
| REF # | 35023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| FENDER-REAR,L.GREEN | |
| REF # | 35023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| FENDER-REAR | |
| REF # | 35023B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| FENDER-REAR,L.GREEN | |
| REF # | 35023C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PAD,15X40X1 | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10(16)X6.6 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,8.8X11.2X4 | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X14 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X12 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X18 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X16 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
