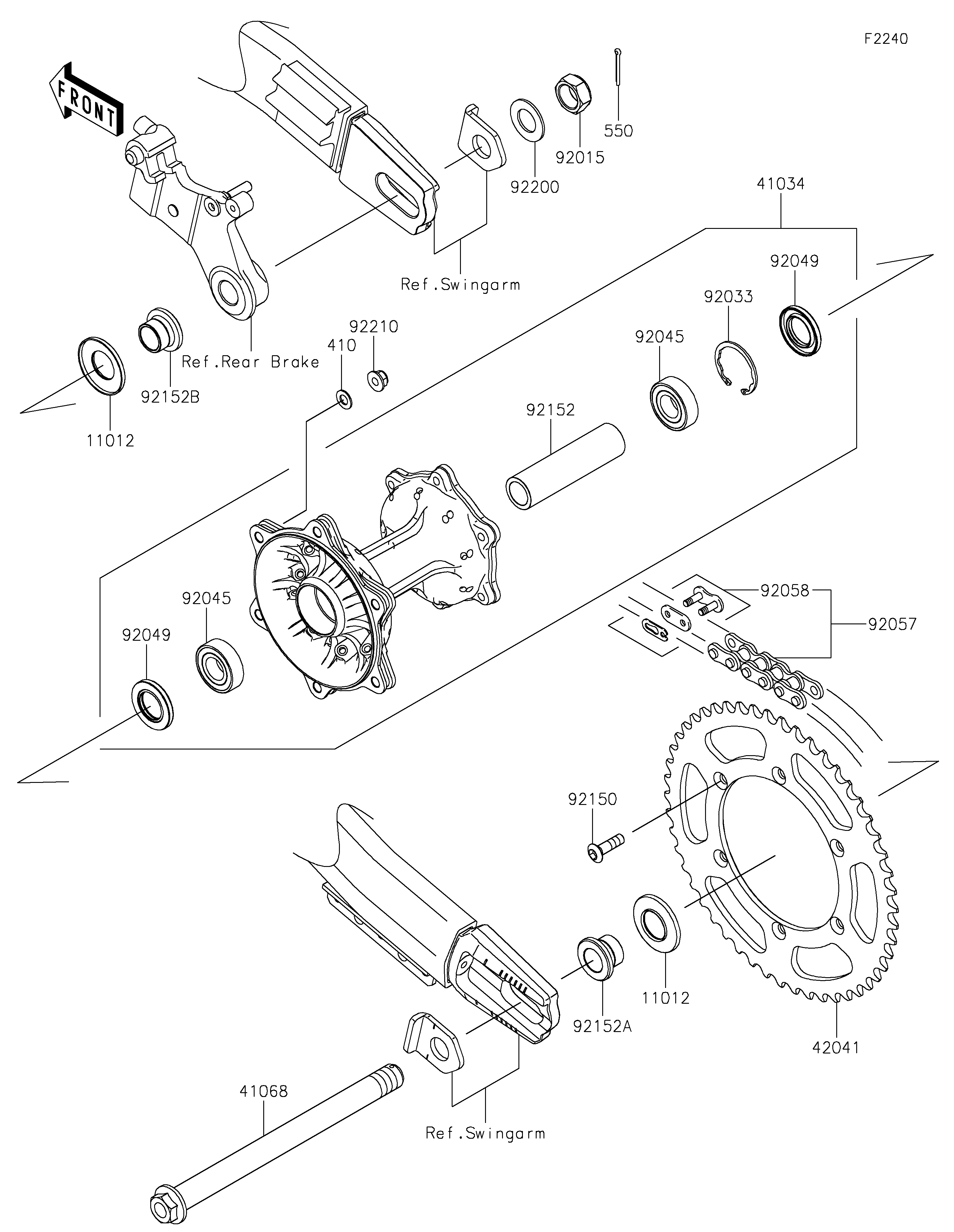

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11012
11012
41034
41068
42041
92015
92033
92045
92045
92049
92049
92057
92058
92150
92152
92152A
92152B
92200
92210
410
550
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,AXLE | 11012 | 11012-1581 | 2 | ||
| DRUM-ASSY,REAR BRAKE | 41034 | 41034-0044 | 1 | ||
| AXLE,RR,20X250 | 41068 | 41068-0602 | 1 | ||
| SPROCKET-HUB,50T | 42041 | 42041-0176 | 1 | ||
| NUT,LOCK,20MM | 92015 | 92015-1770 | 1 | ||
| RING-SNAP,42MM | 92033 | 92033-1041 | 1 | ||
| BEARING-BALL,6004X8JRLLX2/3A | 92045 | 92045-1239 | 2 | ||
| SEAL-OIL,BJNC2 25425 | 92049 | 92049-1203 | 2 | ||
| CHAIN,DRIVE,520VEX110L | 92057 | 92057-0806 | 1 | ||
| JOINT-CHAIN | 92058 | 92058-0044 | 1 | ||
| BOLT,SOCKET,8X28 | 92150 | 92150-1978 | 6 | ||
| COLLAR,REAR BRAKE DRUM,L=105 | 92152 | 92152-0529 | 1 | ||
| COLLAR,RR AXLE,LH,L=22 | 92152A | 92152-0734 | 1 | ||
| COLLAR,RR AXLE,RH,L=20 | 92152B | 92152-0735 | 1 | ||
| WASHER,20.2X36X2 | 92200 | 92200-1146 | 1 | ||
| NUT,FLANGED,LOCK,8MM | 92210 | 92210-0493 | 6 | ||
| WASHER-PLAIN-SMALL,8MM | 410 | 410AA0800 | 6 | ||
| PIN-COTTER,3.0X25 | 550 | 550AA3025 | 1 |
| CAP,AXLE | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DRUM-ASSY,REAR BRAKE | |
| REF # | 41034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,RR,20X250 | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-HUB,50T | |
| REF # | 42041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,20MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,42MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,6004X8JRLLX2/3A | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,BJNC2 25425 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CHAIN,DRIVE,520VEX110L | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT-CHAIN | |
| REF # | 92058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X28 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR BRAKE DRUM,L=105 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,RR AXLE,LH,L=22 | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,RR AXLE,RH,L=20 | |
| REF # | 92152B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,20.2X36X2 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,LOCK,8MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN-SMALL,8MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,3.0X25 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
