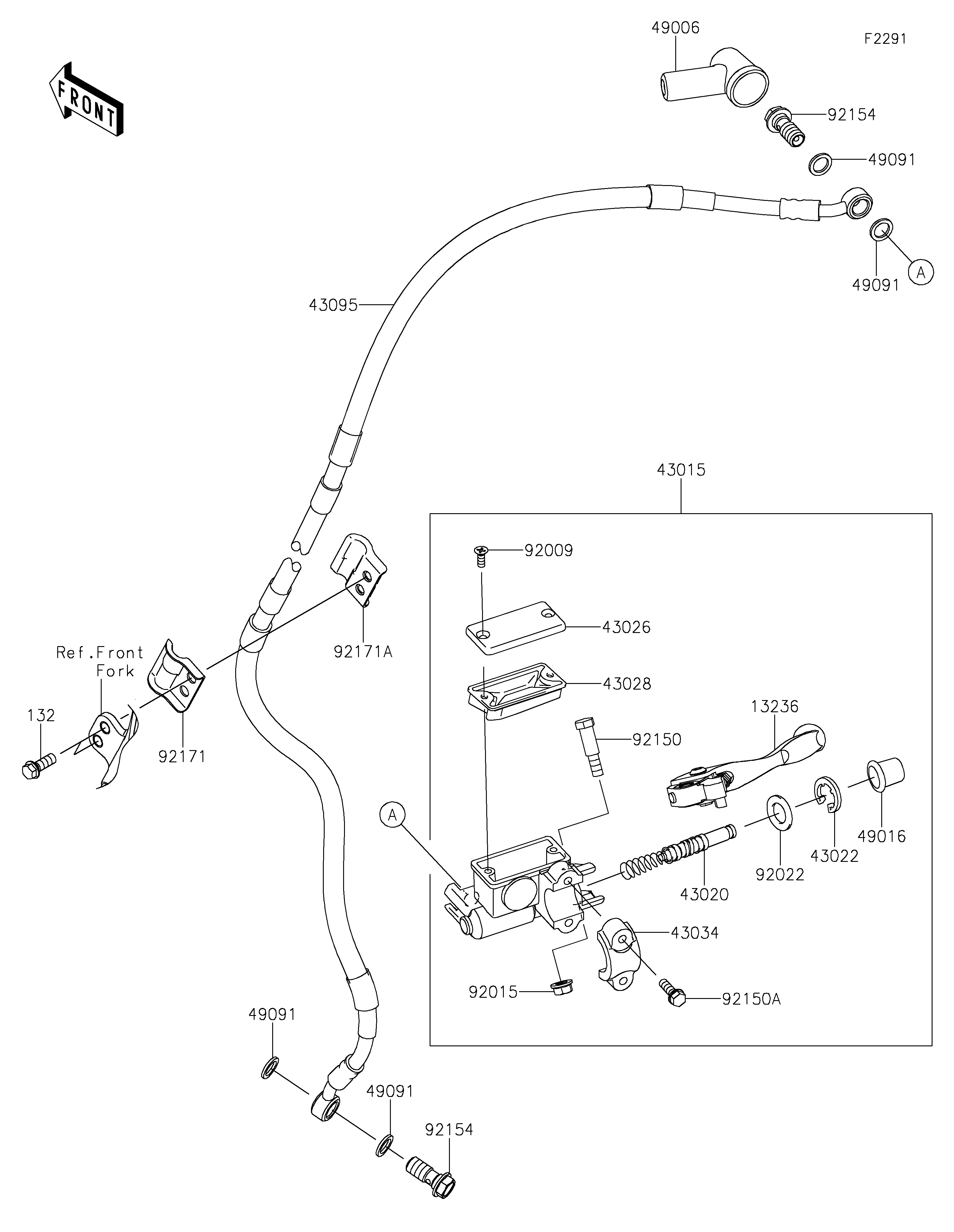

2021 KLX®300R - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13236
43015
43020
43022
43026
43028
43034
43095
49006
49016
49091
49091
49091
49091
92009
92015
92022
92150
92150A
92154
92154
92171
92171A
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP,FRONT BRAKE 13236 13236-0712 1
CYLINDER-ASSY-MASTER 43015 43015-0170 1
PISTON-COMP-BRAKE 43020 43020-0016 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE,MASTER CYLINDER 43026 43026-0020 1
DIAPHRAGM 43028 43028-1067 1
HOLDER-BRAKE 43034 43034-1110 1
HOSE-BRAKE,M/CYLINDER-CALIPER 43095 43095-1642 1
BOOT,DUST 49006 49006-1040 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
SCREW 92009 92009-1795 2
NUT,FLANGED,6MM 92015 92015-1528 1
WASHER 92022 92022-1814 1
BOLT,LEVER SET 92150 92150-1451 1
BOLT 92150A 92150-1452 2
BOLT,FLANGED,10X23 92154 92154-0732 2
CLAMP,BRAKE HOSE 92171 92171-1626 1
CLAMP,BRAKE HOSE 92171A 92171-1627 1
BOLT-FLANGED-SMALL,6X16 132 132BB0616 2
