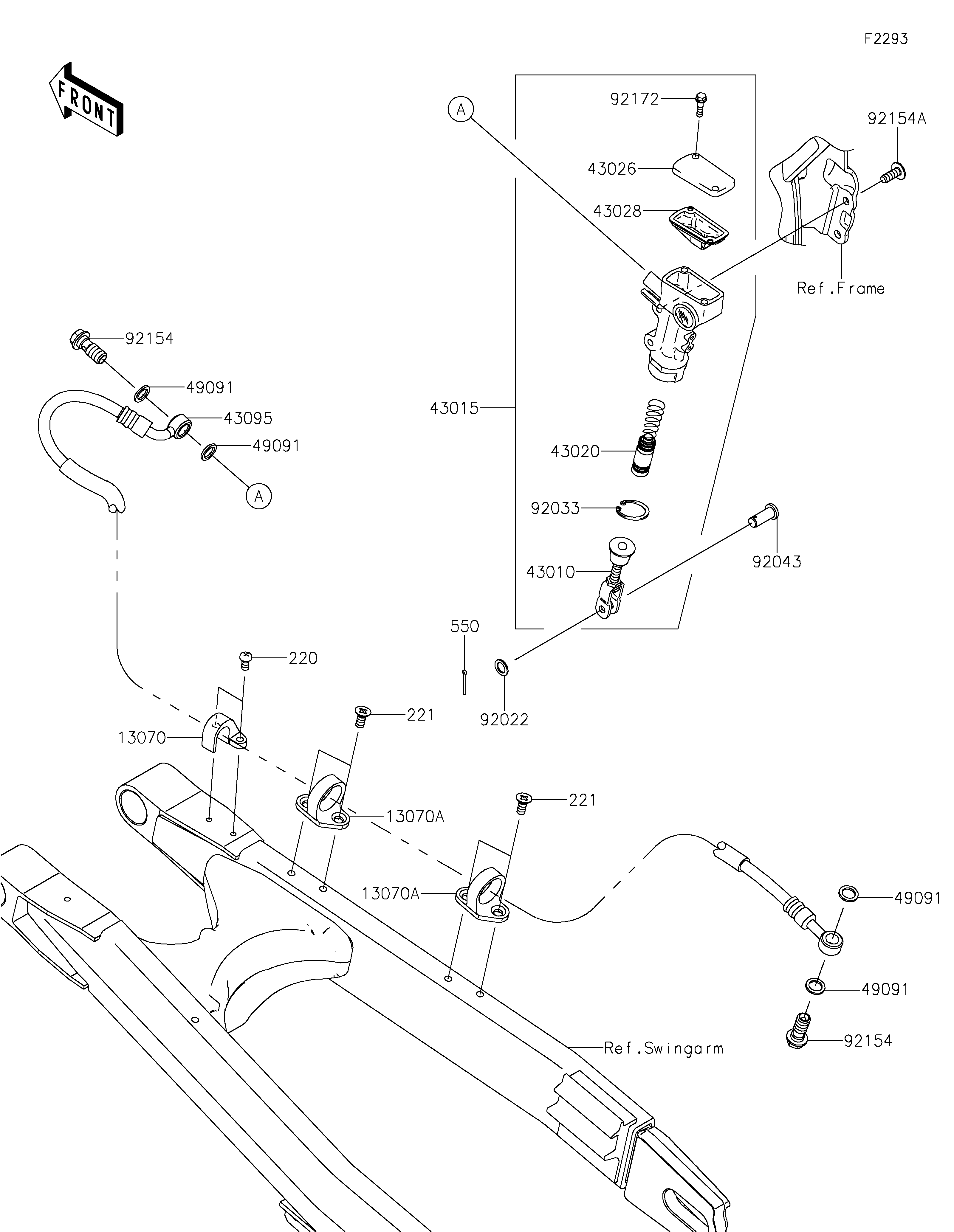

2021 KLX®300R - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13070
13070A
13070A
43010
43015
43020
43026
43028
43095
49091
49091
49091
49091
92022
92033
92043
92154
92154
92154A
92172
220
221
221
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,BRAKE HOSE 13070 13070-0826 1
GUIDE,HOSE 13070A 13070-1144 2
ROD-ASSY-BRAKE 43010 43010-1087 1
CYLINDER-ASSY-MASTER 43015 43015-0168 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-0023 1
DIAPHRAGM 43028 43028-1092 1
HOSE-BRAKE,M/CYLINDER-CALIPER 43095 43095-1643 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
WASHER,8.5X13X1 92022 92022-1028 1
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
PIN 92043 92043-0004 1
BOLT,FLANGED,10X23 92154 92154-0732 2
BOLT,SOCKET,6X16 92154A 92154-1678 2
SCREW 92172 92172-1064 2
SCREW-PAN-CROS,5X10 220 220AA0510 2
SCREW-CSK-CROS,6X10 221 221AA0610 4
PIN-COTTER,2.0X15 550 550AA2015 1
