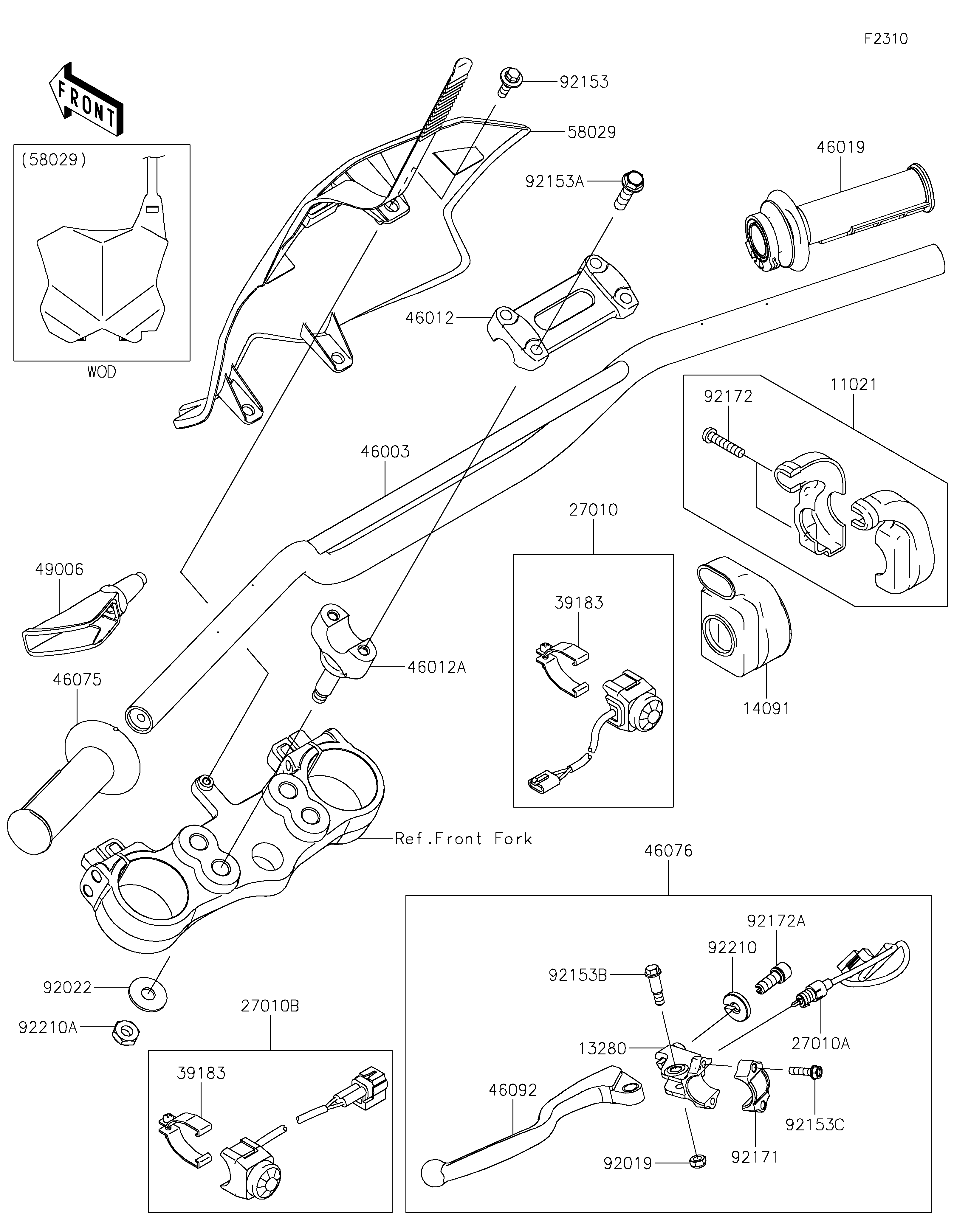

2021 KLX®300R - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
11021
13280
14091
27010
27010A
27010B
39183
39183
46003
46012
46012A
46019
46075
46076
46092
49006
58029
92019
92022
92153
92153A
92153B
92153C
92171
92172
92172A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-ASSY,THROTTLE 11021 11021-0035 1
HOLDER,CLUTCH LEVER 13280 13280-0256 1
COVER,THROTTLE CASE 14091 14091-0182 1
SWITCH,ENGINE START 27010 27010-0069 1
SWITCH,CLUTCH 27010A 27010-0071 1
SWITCH,ENGINE STOP 27010B 27010-0826 1
BAND-ASSY,SWITCH 39183 39183-1059 2
HANDLE,P.SILVER 46003 46003-0781-458 1
HOLDER-HANDLE,UPP,F.S.BLACK 46012 46012-0010-18R 1
HOLDER-HANDLE,LWR,F.S.BLACK 46012A 46012-0412-18R 2
GRIP-ASSY,THROTTLE 46019 46019-0041 1
GRIP,LH 46075 46075-0072 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0049 1
LEVER-GRIP,CLUTCH 46092 46092-0026 1
BOOT,LEVER HOLDER 49006 49006-0080 1
PLATE-NUMBER,B.WHITE 58029 58029-0013-266 1
NUT,LOCK,6MM 92019 92019-008 1
WASHER,10.2X28X2 92022 92022-1088 2
BOLT,FLANGED,6X22 92153 92153-0950 1
BOLT,FLANGED,8X30 92153A 92153-1519 4
BOLT,6MM 92153B 92153-1897 1
BOLT,5X20 92153C 92153-1898 2
CLAMP,LEVER HOLDER 92171 92171-1671 1
SCREW,5X20 92172 92172-0069 2
SCREW,CABLE ADJUST,8MM 92172A 92172-0330 1
NUT,CABLE ADJUST 92210 92210-0411 1
NUT,LOCK,10MM 92210A 92210-1184 2
