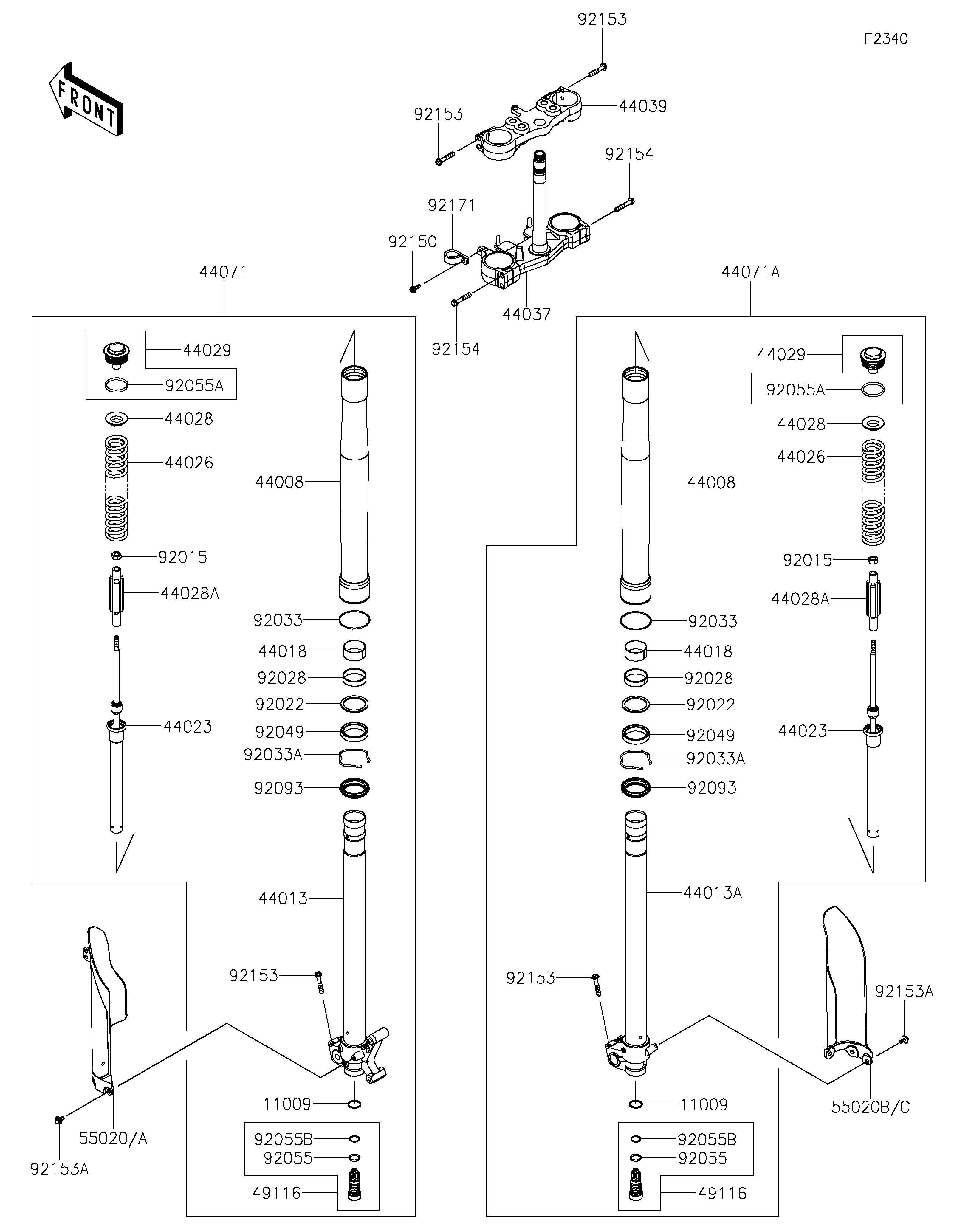

2021 KLX®300R - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
44008
44008
44013
44013A
44018
44018
44023
44023
44026
44026
44028
44028
44028A
44028A
44029
44029
44037
44039
44071
44071A
49116
49116
55020
55020B
92015
92015
92022
92022
92028
92028
92033
92033
92033A
92033A
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92093
92093
92150
92153
92153
92153
92153
92153A
92153A
92154
92154
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1592 2
PIPE-FORK OUTER,SILVER 44008 44008-0032-KX 2
PIPE-FORK INNER,LH,P.SILVER 44013 44013-0090-458 1
PIPE-FORK INNER,RH,P.SILVER 44013A 44013-0092-458 1
PISTON-FORK,INNER PIPE 44018 44018-1056 2
CYLINDER-SET-FORK 44023 44023-0156 2
SPRING-FRONT FORK 44026 44026-0239 2
GUIDE-FORK SPRING 44028 44028-1081 2
GUIDE-FORK SPRING 44028A 44028-1084 2
SEAT-FORK SPRING,SILVER 44029 44029-0010-KX 2
HOLDER-FORK UNDER 44037 44037-0190 1
HOLDER-FORK UPPER 44039 44039-0198 1
DAMPER-ASSY,LH 44071 44071-1402 1
DAMPER-ASSY,RH 44071A 44071-1403 1
VALVE-ASSY,FORK 49116 49116-1145 2
GUARD,FORK,LH,EBONY 55020 55020-2231-6C 1
GUARD,FORK,RH,EBONY 55020B 55020-2232-6C 1
NUT 92015 92015-1839 2
WASHER 92022 92022-1299 2
BUSHING 92028 92028-1581 2
RING-SNAP 92033 92033-0080 2
RING-SNAP 92033A 92033-1077 2
SEAL-OIL 92049 92049-1373 2
RING-O 92055 92055-1156 2
RING-O,FORK,AIR TUBE 92055A 92055-1333 2
RING-O,FORK VALVE 92055B 92055-1502 2
SEAL,FORK OUTER TUBE 92093 92093-1342 2
BOLT,5X16 92150 92150-1802 1
BOLT,8X40 92153 92153-0020 8
BOLT,FLANGED,6X14 92153A 92153-0936 6
BOLT,8X40 92154 92154-4062 4
CLAMP 92171 92171-0820 1
