Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

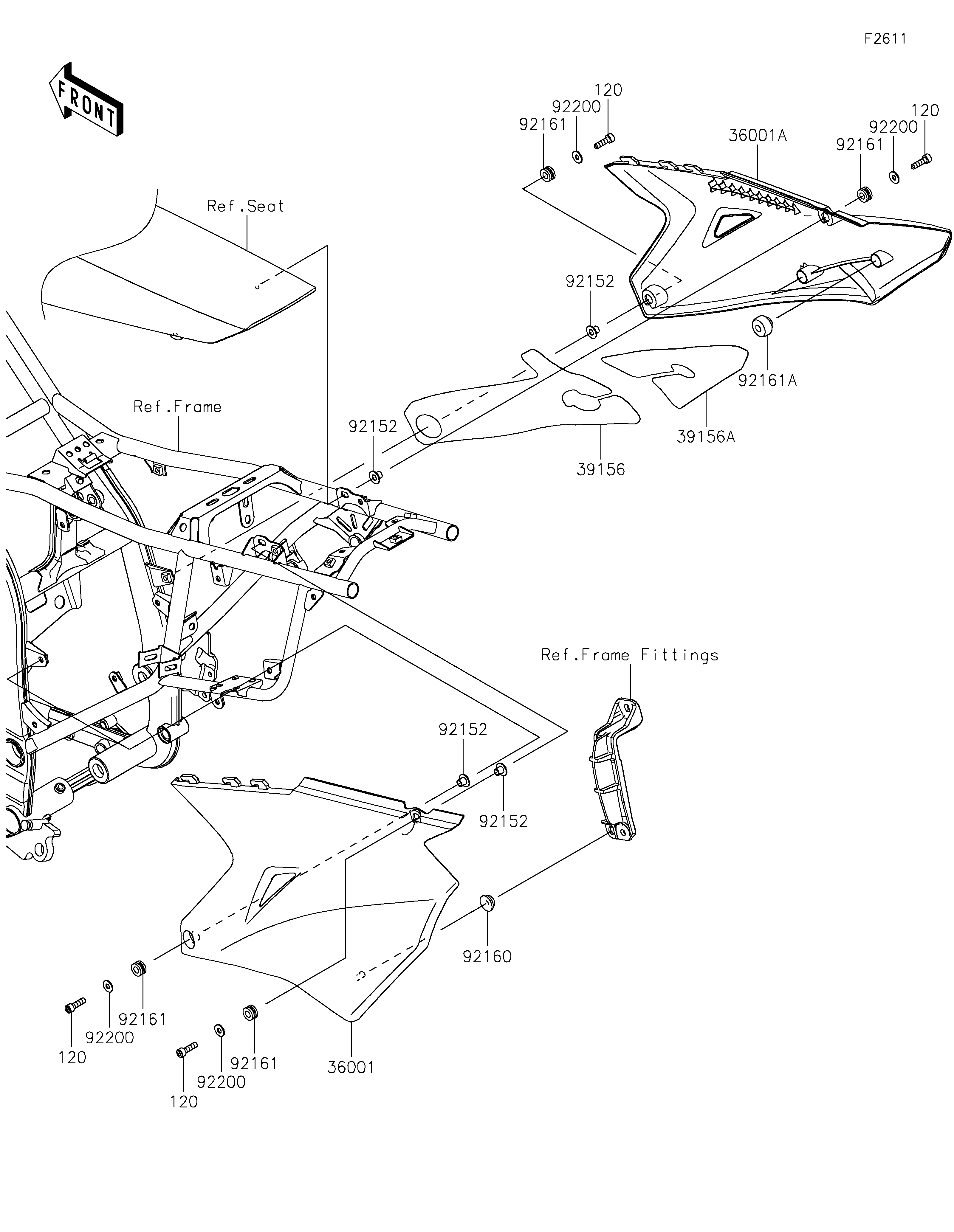

Parts Diagrams |
36001
36001A
39156
39156A
92152
92152
92152
92152
92160
92161
92161
92161
92161
92161A
92200
92200
92200
92200
120
120
120
120
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,LH,B.WHITE | 36001 | 36001-0682-266 | 1 | ||
| COVER-SIDE,RH,B.WHITE | 36001A | 36001-0683-266 | 1 | ||
| PAD,COVER-SIDE,RH,FR | 39156 | 39156-2458 | 1 | ||
| PAD,COVER-SIDE,RH,RR | 39156A | 39156-2459 | 1 | ||
| COLLAR,6.3X8.3X9.2 | 92152 | 92152-1671 | 4 | ||
| DAMPER | 92160 | 92160-1613 | 1 | ||
| DAMPER,8X16X8.6 | 92161 | 92161-0685 | 4 | ||
| DAMPER | 92161A | 92161-1783 | 2 | ||
| WASHER,6.2X15X1.2 | 92200 | 92200-1762 | 4 | ||
| BOLT-SOCKET,6X25 | 120 | 120CC0625 | 4 |
