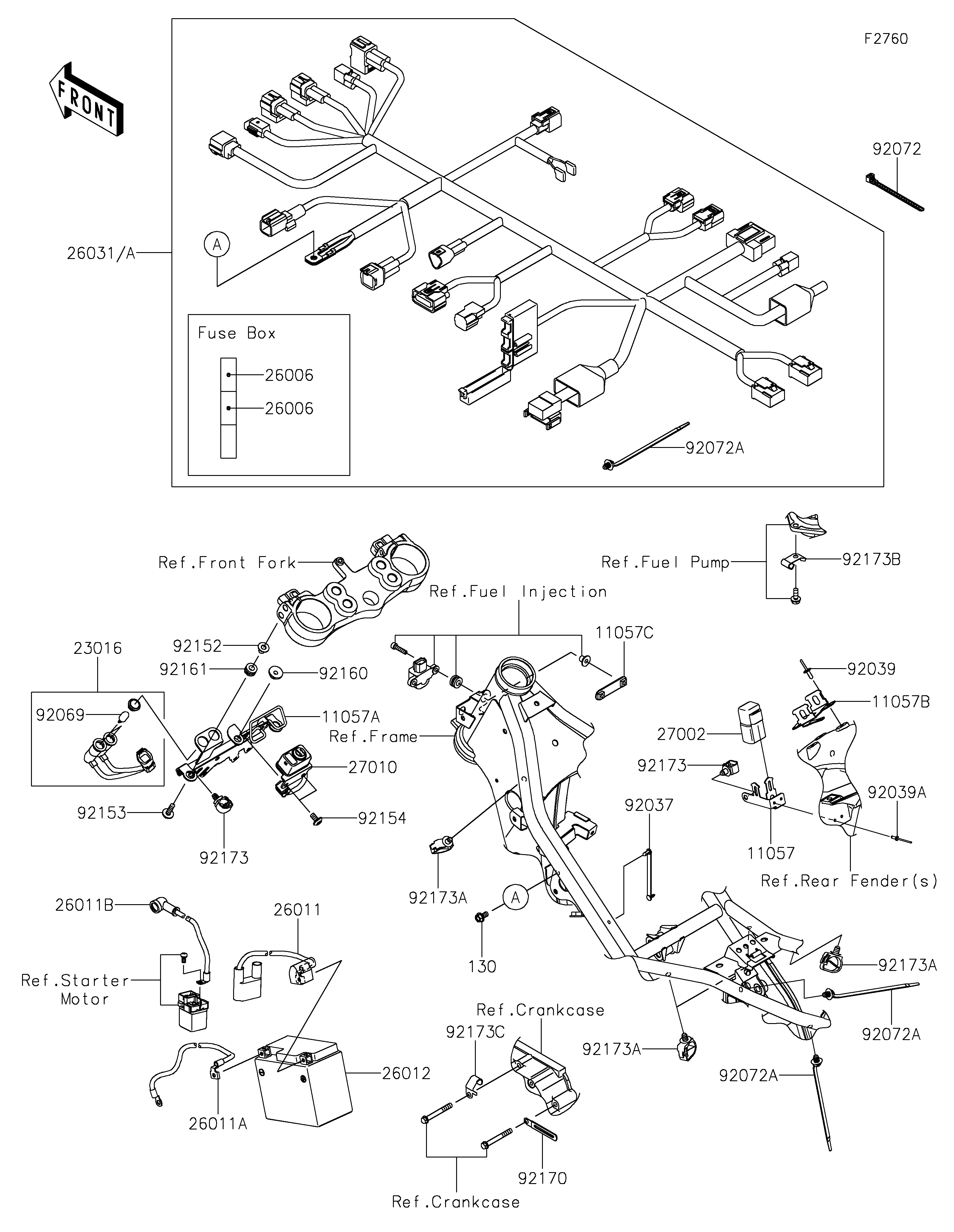

2021 KLX®300R - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
11057C
23016
26006
26006
26011
26011A
26011B
26012
26031
26031A
27002
27010
92037
92039
92039A
92069
92072
92072A
92072A
92072A
92152
92153
92154
92160
92161
92170
92173
92173
92173A
92173A
92173A
92173B
92173C
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RELAY 11057 11057-2300 1
BRACKET,FR CONNECTOR 11057A 11057-2301 1
BRACKET,ECU 11057B 11057-2302 1
BRACKET,VEHICLE-DOWN 11057C 11057-2303 1
LAMP-ASSY,INDICATOR 23016 23016-0638 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 2
WIRE-LEAD,BATTERY(+) 26011 26011-1875 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1876 1
WIRE-LEAD,STARTER 26011B 26011-1877 1
BATTERY,FTZ6V,12V 5AH 26012 26012-0908 1
HARNESS,MAIN 26031 26031-2581 1 CN,US
HARNESS,MAIN 26031A 26031-2583 1 CA
RELAY-ASSY 27002 27002-1086 1
SWITCH,IGNITION 27010 27010-0929 1
CLAMP,SPEED,L=80.5 92037 92037-1903 1
RIVET 92039 92039-0039 3
RIVET,3.2X9.5 92039A 92039-0752 2
BULB,12V 3.4W,T10 92069 92069-1007 2
BAND,L=140 92072 92072-1293 4
BAND,OS170-FT7(BLACK) 92072A 92072-1414 AR
COLLAR,6.3X8.3X9.8 92152 92152-2697 2
BOLT,FLANGED,6X22 92153 92153-0950 2
BOLT,SOCKET,6X12 92154 92154-0951 2
DAMPER 92160 92160-1613 1
DAMPER,8X16X8.6 92161 92161-0685 2
CLAMP 92170 92170-1514 1
CLAMP,12MM DIA. 92173 92173-0736 2
CLAMP 92173A 92173-0861 4
CLAMP 92173B 92173-2202 1
CLAMP 92173C 92173-2289 1
BOLT-FLANGED,6X12 130 130BB0612 1
