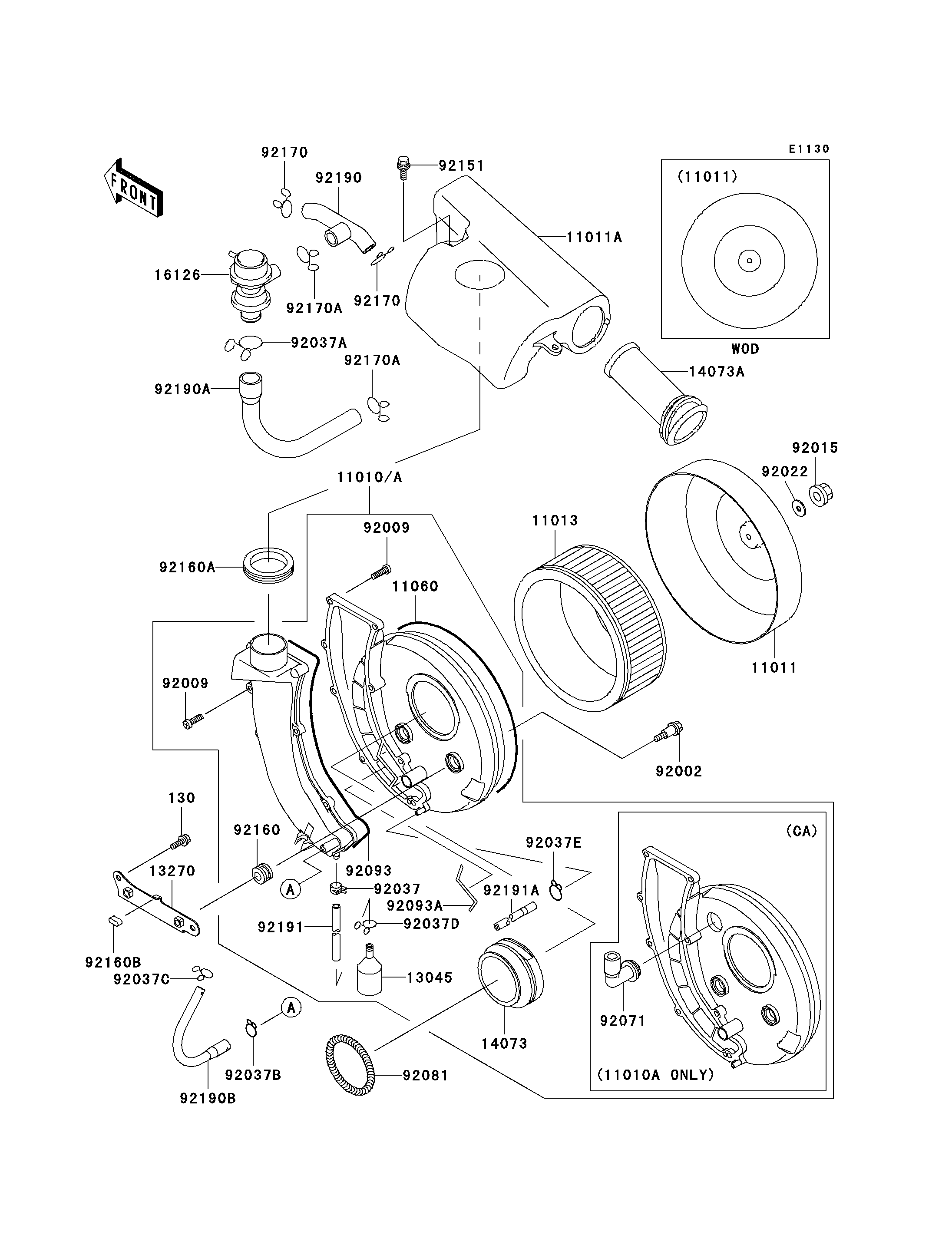

2003 Vulcan 800 Classic - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
130
11011
11011A
11013
11060
13045
13270
14073
14073A
16126
92002
92009
92009
92015
92022
92037
92037A
92037B
92037C
92037D
92037E
92081
92093
92093A
92151
92160
92160A
92160B
92170
92170
92170A
92170A
92190
92190A
92190B
92191
92191A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16,BLACK 130 130J0616 2
CASE-AIR FILTER,COVER 11011 11011-1453 1
CASE-AIR FILTER,CHAMBER 11011A 11011-1454 1
ELEMENT-AIR FILTER 11013 11013-1243 1
GASKET,AIR FILTER 11060 11060-1721 1
RECEIVER-OIL 13045 13045-1057 1
PLATE,AIR FILTER CASE 13270 13270-1388 1
DUCT,AIR FILTER 14073 14073-1622 1
DUCT,AIR FILTER CHAMBER 14073A 14073-1623 1
VALVE,AIR SWITCH 16126 16126-1289 1
BOLT 92002 92002-1595 2
SCREW,TAPPING,5X20 92009 92009-1399 8
NUT,CAP,6MM 92015 92015-1385 1
WASHER,6.5X20X1.6,WHITE 92022 92022-193 1
CLAMP,TUBE 92037 92037-010 1
CLAMP,TUBE 92037A 92037-1076 1
CLAMP,FUEL TUBE 92037B 92037-1271 1
CLAMP,TUBE 92037C 92037-147 1
CLAMP 92037D 92037-1712 1
CLAMP,TUBE 92037E 92037-3025 1
SPRING,DUCT 92081 92081-1638 1
SEAL,AIR FILTER 92093 92093-1501 1
SEAL,AIR FILTER 92093A 92093-1502 1
BOLT 92151 92151-1579 2
DAMPER 92160 92160-1594 2
DAMPER 92160A 92160-1600 1
DAMPER,PLATE 92160B 92160-1605 1
CLAMP 92170 92170-1017 2
CLAMP,TUBE 92170A 92170-1445 2
TUBE,AIR SWITCH-HEAD 92190 92190-1600 1
TUBE,AIR SWITCH-FILTER CASE 92190A 92190-1601 1
TUBE,BREATHER 92190B 92190-1602 1
TUBE,6X9X345 92191 92191-1111 1
TUBE 92191A 92191-1112 1
FILTER-ASSY-AIR 11010 11010-1670 1 CNUS
FILTER-ASSY-AIR 11010A 11010-1671 1 CA
GROMMET,AIR FILTER 92071 92071-1114 1 CA
