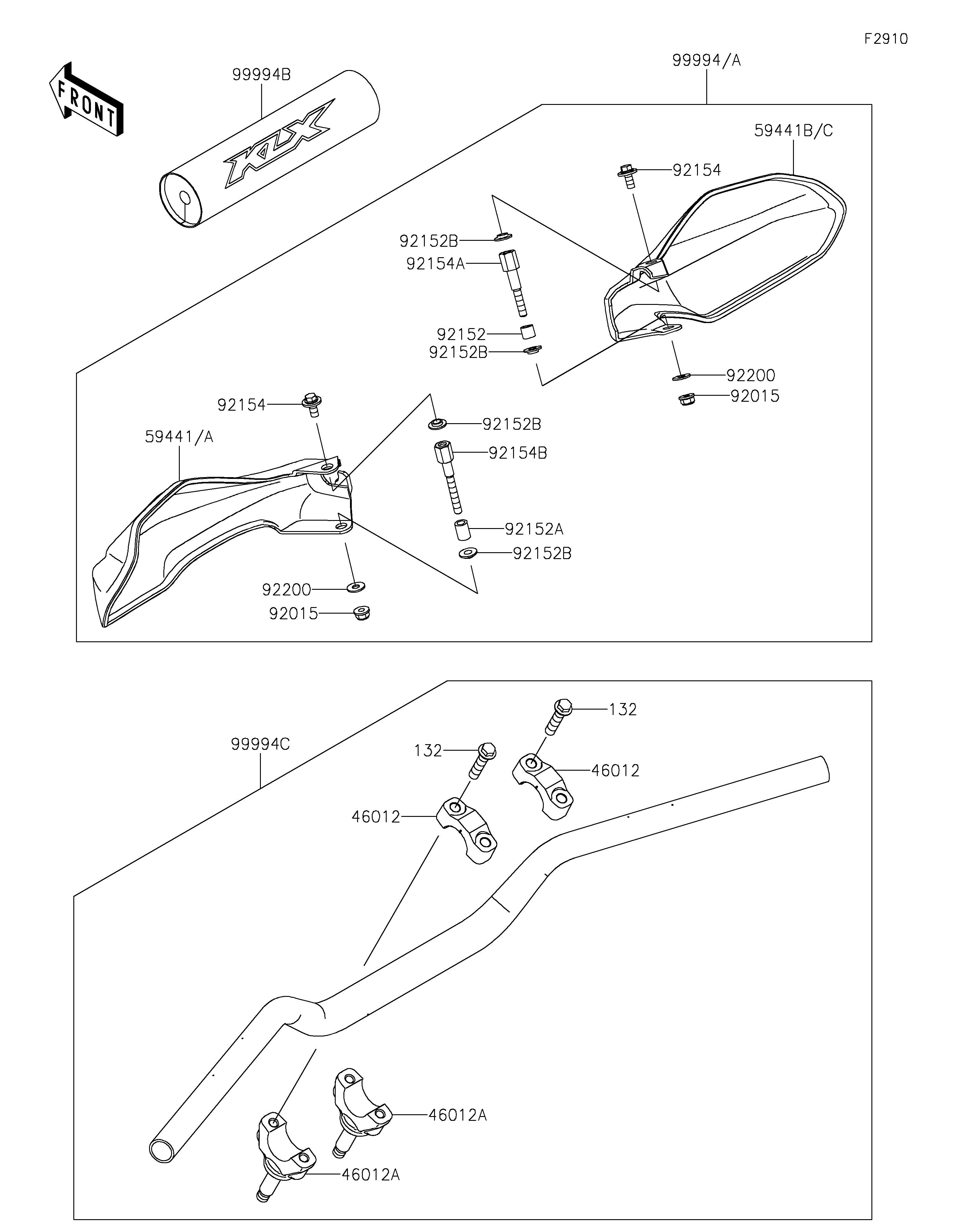

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER-HANDLE,UPP,FAT BAR,BLK | 46012 | 46012-0020-18R | 2 | ||
HOLDER-HANDLE,LWR,FAT BAR,BLK | 46012A | 46012-0413-18R | 2 | ||
COVER-HANDLE,LH,EBONY | 59441A | 59441-0047-6C | 1 | ||
COVER-HANDLE,RH,EBONY | 59441C | 59441-0048-6C | 1 | ||
NUT,LOCK,FLANGED,6MM | 92015 | 92015-1603 | 2 | ||
COLLAR,6.5X10.5X9.3 | 92152 | 92152-1992 | 1 | ||
COLLAR,6.5X10.5X14 | 92152A | 92152-2302 | 1 | ||
COLLAR,6.5X15X3.4 | 92152B | 92152-2314 | 4 | ||
BOLT,FLANGED,6X14 | 92154 | 92154-1231 | 2 | ||
BOLT | 92154A | 92154-1670 | 1 | ||
BOLT | 92154B | 92154-3974 | 1 | ||
WASHER,6.2X15X1.2 | 92200 | 92200-1762 | 2 | ||
HAND COVER,EBONY | 99994A | 99994-1272-6C | 1 | ||
HANDLE-BAR PAD | 99994B | 99994-1274 | 1 | ||
FAT TYPE HANDLE BAR,P.SILVER | 99994C | 99994-1471-458 | 1 | ||
BOLT-FLANGED-SMALL,8X35 | 132 | 132BA0835 | 4 |
