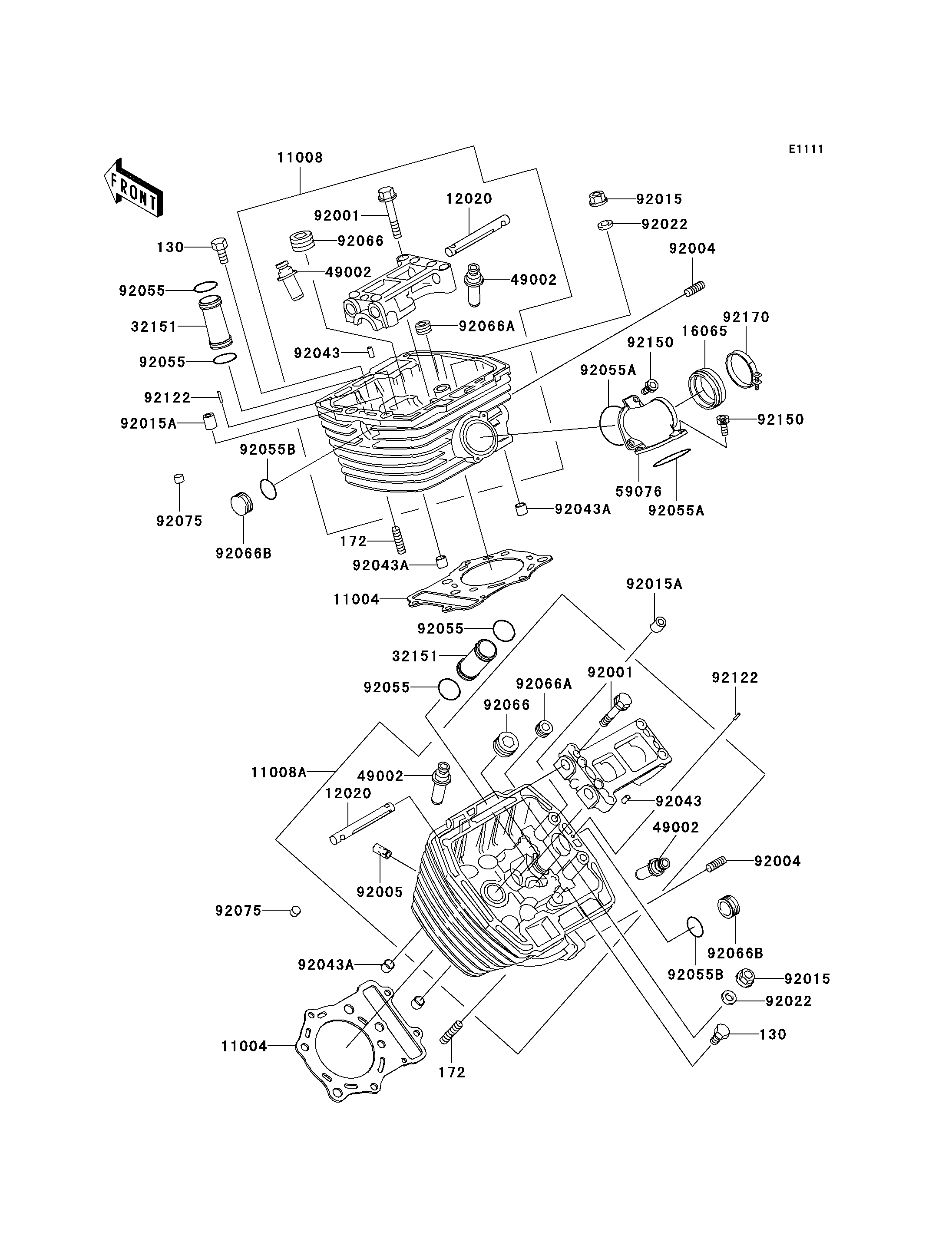

2000 Vulcan 800 Drifter - Cylinder Head
130
130
172
172
11004
11004
11008
11008A
12020
12020
16065
32151
32151
49002
49002
49002
49002
59076
92001
92001
92004
92004
92005
92015
92015
92015A
92015A
92022
92022
92043
92043
92043A
92043A
92043A
92055
92055
92055
92055
92055A
92055A
92055B
92055B
92066
92066
92066A
92066A
92066B
92066B
92075
92075
92122
92122
92150
92150
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130S0665 | 2 | ||
BOLT-STUD,8X25 | 172 | 172G0825 | 4 | ||
GASKET-HEAD | 11004 | 11004-1310 | 2 | ||
HEAD-COMP-CYLINDER,FR | 11008 | 11008-1358 | 1 | ||
HEAD-COMP-CYLINDER,RR | 11008A | 11008-1359 | 1 | ||
SHAFT-ROCKER | 12020 | 12020-1070 | 4 | ||
HOLDER-CARBURETOR | 16065 | 16065-1308 | 1 | ||
PIPE,PLUG | 32151 | 32151-1893 | 2 | ||
GUIDE-VALVE | 49002 | 49002-1097 | AR | ||
MANIFOLD-INTAKE | 59076 | 59076-1107 | 1 | ||
BOLT,FLANGED,8X58 | 92001 | 92001-1005 | 8 | ||
STUD,8X22 | 92004 | 92004-1217 | 4 | ||
FITTING,BREATHER PIPE | 92005 | 92005-1061 | 1 | ||
NUT,FLANGED,10MM | 92015 | 92015-077 | 8 | ||
NUT | 92015A | 92015-1923 | 4 | ||
WASHER,10.5X20X1.6 | 92022 | 92022-1591 | 8 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 4 | ||
PIN,11X14X12.3 | 92043A | 92043-1266 | 4 | ||
RING-O,27.7X1.9 | 92055 | 92055-1272 | 4 | ||
RING-O,44.7X2.4 | 92055A | 92055-1279 | 2 | ||
RING-O,ID=24.5 | 92055B | 92055-1459 | 2 | ||
PLUG,PT1/2X12.5 | 92066 | 92066-1253 | 2 | ||
PLUG,PT1/4X8.9 | 92066A | 92066-1260 | 2 | ||
PLUG,CAM HOLE | 92066B | 92066-1462 | 2 | ||
DAMPER | 92075 | 92075-182 | 33 | ||
ROLLER,3X15.8 | 92122 | 92122-1126 | 2 | ||
BOLT,SOCKET,6X20 | 92150 | 92150-1880 | 4 | ||
CLAMP | 92170 | 92170-1632 | 1 |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-STUD,8X25 | |
REF # | 172 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GASKET-HEAD | |
REF # | 11004 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HEAD-COMP-CYLINDER,FR | |
REF # | 11008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HEAD-COMP-CYLINDER,RR | |
REF # | 11008A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-ROCKER | |
REF # | 12020 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
HOLDER-CARBURETOR | |
REF # | 16065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE,PLUG | |
REF # | 32151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE-VALVE | |
REF # | 49002 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
MANIFOLD-INTAKE | |
REF # | 59076 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X58 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
STUD,8X22 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
FITTING,BREATHER PIPE | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,10.5X20X1.6 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PIN,6.2X8X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN,11X14X12.3 | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O,27.7X1.9 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O,44.7X2.4 | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,ID=24.5 | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG,PT1/2X12.5 | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG,PT1/4X8.9 | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG,CAM HOLE | |
REF # | 92066B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 33 |
DESTINATION | |
REMARKS |
ROLLER,3X15.8 | |
REF # | 92122 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X20 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
