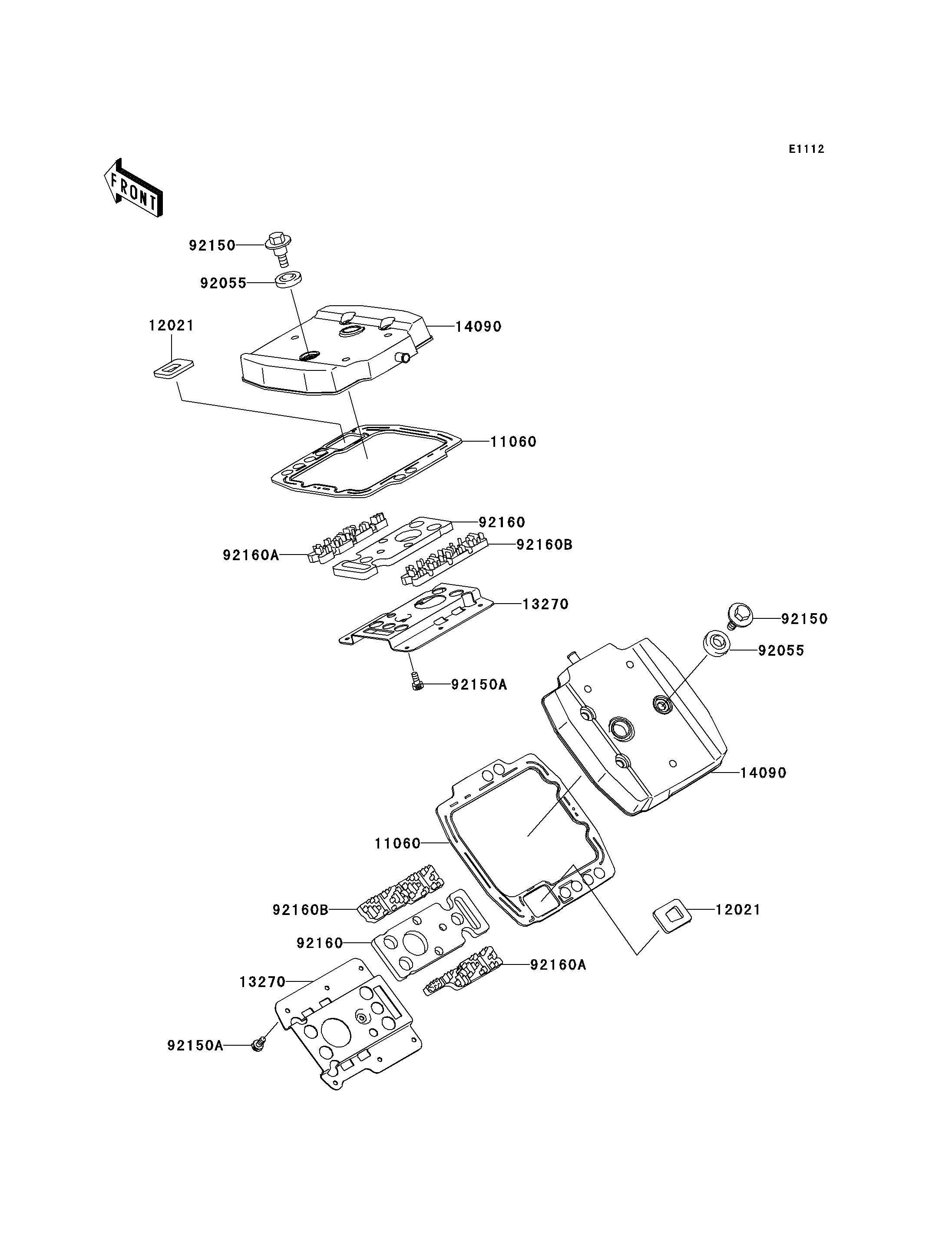

2000 Vulcan 800 Drifter - Cylinder Head Cover

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
12021
12021
13270
13270
14090
14090
92055
92055
92150
92150
92150A
92150A
92160
92160
92160A
92160A
92160B
92160B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,HEAD COVER 11060 11060-1677 2
VALVE-ASSY-REED 12021 12021-1102 2
PLATE 13270 13270-1490 2
COVER,HEAD 14090 14090-1991 2
RING-O,HEAD COVER BOLT 92055 92055-1352 6
BOLT,HEAD COVER 92150 92150-1447 6
BOLT,5X8 92150A 92150-1955 14
DAMPER,HEAD COVER 92160 92160-1659 2
DAMPER,EXHAUST 92160A 92160-1963 2
DAMPER,INTAKE 92160B 92160-1964 2
