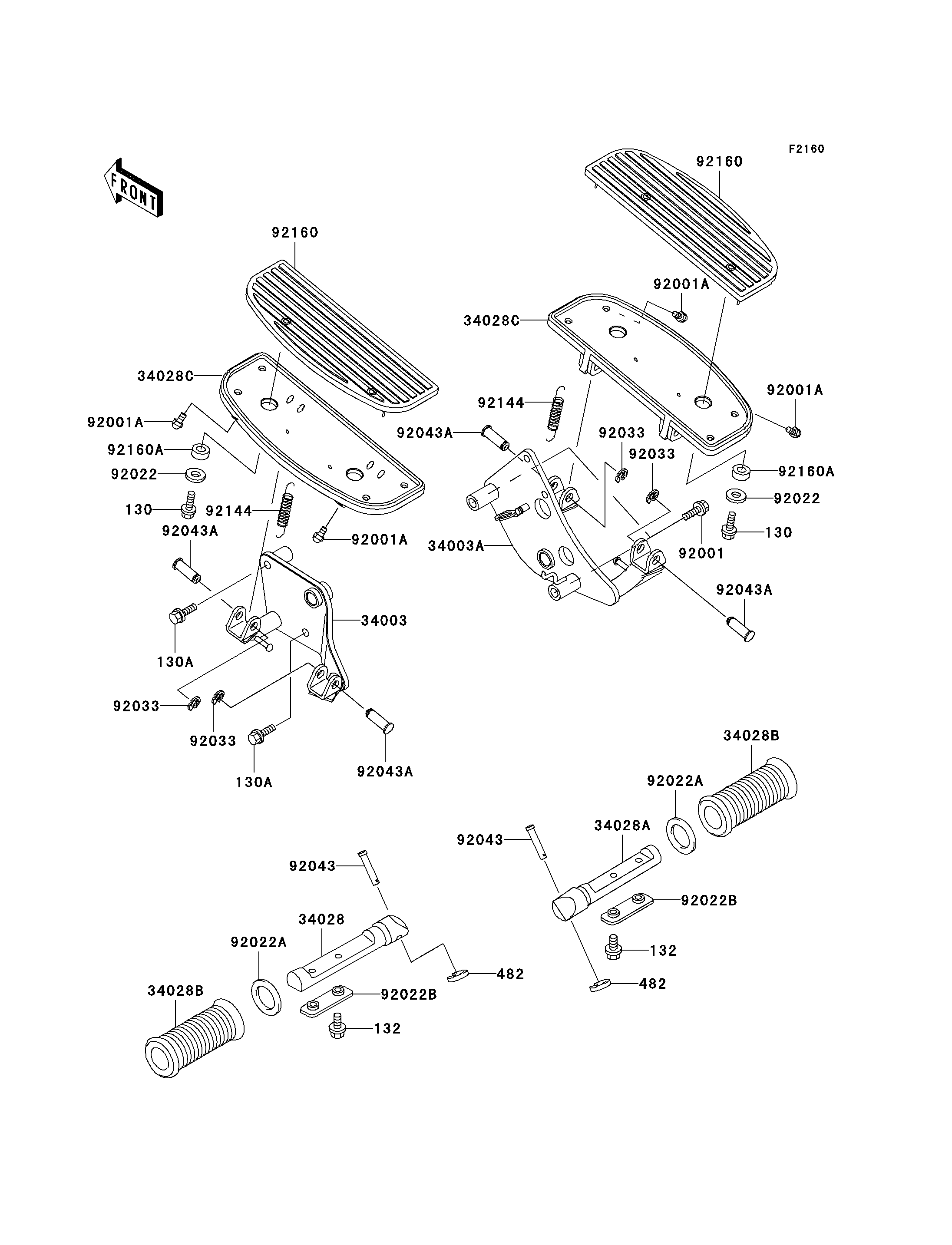

2000 Vulcan 800 Drifter - Footrests

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
132
132
482
482
34003
34003A
34028
34028A
34028B
34028B
34028C
34028C
92001
92001A
92001A
92001A
92001A
92022
92022
92022A
92022A
92022B
92022B
92033
92033
92033
92033
92043
92043
92043A
92043A
92043A
92043A
92144
92144
92160
92160
92160A
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16,BLACK 130 130J0616 4
BOLT-FLANGED,10X55 130A 130J1055 2
BOLT-FLANGED-SMALL 132 132J0510 4
CIRCLIP-TYPE-E 482 482L7000 2
HOLDER-STEP,FR,LH 34003 34003-1487 1
HOLDER-STEP,FR,RH 34003A 34003-1488 1
STEP,RR,LH 34028 34028-1219 1
STEP,RR,RH 34028A 34028-1220 1
STEP,RR,RUBBER 34028B 34028-1221 2
STEP,FR 34028C 34028-1417 2
BOLT,FLANGED,10X60 92001 92001-1617 2
BOLT,BANK SENSOR 92001A 92001-1905 4
WASHER,7X28X1.6,BLACK 92022 92022-1392 4
WASHER,20X30X2.3 92022A 92022-1568 2
WASHER,STEP 92022B 92022-1874 2
RING-SNAP,10MM 92033 92033-1166 4
PIN,8X36.5 92043 92043-1339 2
PIN,12X37 92043A 92043-1358 4
SPRING,BRAKE PEDAL RETURN 92144 92144-1266 2
DAMPER,FRONT STEP 92160 92160-1727 2
DAMPER 92160A 92160-1728 4
