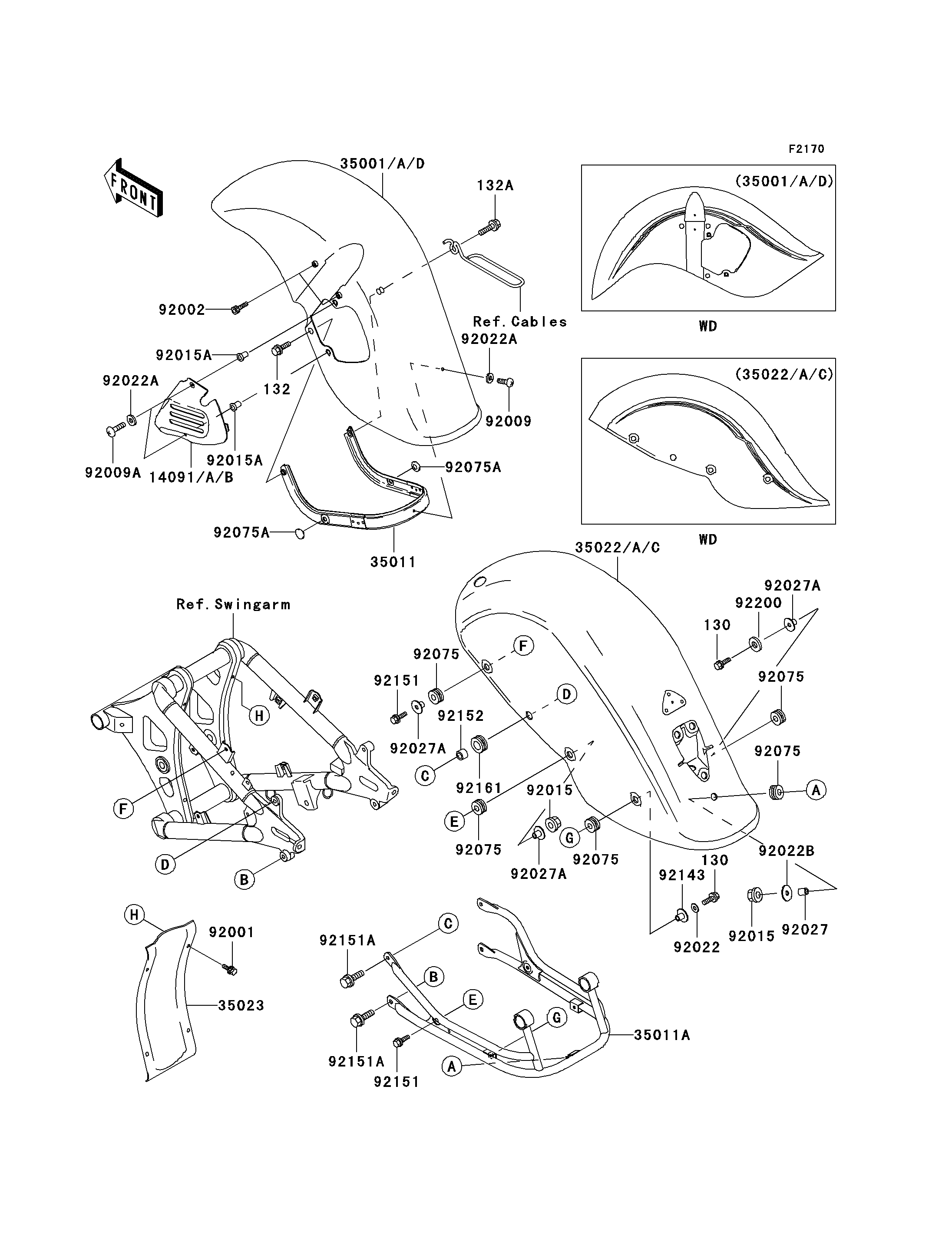

2000 Vulcan 800 Drifter - Fenders

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
132A
14091A
14091B
35001A
35001D
35011
35011A
35022A
35022C
35023
92001
92002
92009
92009A
92015
92015
92015A
92015A
92022
92022A
92022A
92022B
92027
92027A
92027A
92027A
92075
92075
92075
92075
92075
92075A
92075A
92143
92151
92151
92151A
92151A
92152
92161
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130J0625 2
BOLT-FLANGED-SMALL 132 132E0820 1
BOLT-FLANGED-SMALL 132A 132E0825 1
COVER,FRONT CALIPER,S.BLUE 14091A 14091-1059-Q5 1
COVER,FRONT CALIPER,P.B.BEIGE 14091B 14091-1059-X8 1
FENDER-ASSY-FRONT,P.B.BEIGE 35001A 35001-5045-X8 1
FENDER-ASSY-FRONT,S.BLUE 35001D 35001-5048-Q5 1
STAY,FRONT FENDER 35011 35011-1962 1
STAY,REAR FENDER 35011A 35011-1971 1
FENDER-COMP-REAR,P.B.BEIGE 35022A 35022-5057-X8 1
FENDER-COMP-REAR,S.BLUE 35022C 35022-5060-Q5 1
FENDER-REAR 35023 35023-1417 1
BOLT,6X20 92001 92001-1765 4
BOLT,SOCKET,8X30 92002 92002-1179 4
SCREW,5X12 92009 92009-1652 1
SCREW,5X16,BLACK 92009A 92009-1654 2
NUT,FLANGED,6MM 92015 92015-1386 3
NUT,WELL,5MM 92015A 92015-1757 2
WASHER,6.5X16X1.0 92022 92022-1093 1
WASHER,NYLON,5.3X11.5X1.5 92022A 92022-1521 3
WASHER,7X24X1.6 92022B 92022-228 1
COLLAR,6.3X10X12 92027 92027-1143 1
COLLAR,L=13.1,BLACK 92027A 92027-1450 5
DAMPER 92075 92075-1690 7
DAMPER,RUBBER 92075A 92075-261 2
COLLAR 92143 92143-1960 1
BOLT,FLANGED,6X25 92151 92151-1488 4
BOLT,FLANGED,10X34 92151A 92151-1509 4
COLLAR,11X18X11.5 92152 92152-1165 2
DAMPER 92161 92161-1051 2
WASHER,6.5X13X4 92200 92200-1380 1
